Seen mild communication techniques are nice at transmitting torrents of information, however to be broadly adopted they should be made so simple as doable. To that finish, researchers in China have developed a circuit machine, referred to as a VLC equalizer, that’s based mostly on a single-order circuit. They described their work on October 24 in IEEE Photonics Expertise Letters.
Equalizers assist compensate for distortion when alerts are despatched and obtained. “When the transmission sign has been equalized, the frequency area attributes of the sign on the enter are faithfully reproduced on the output,” explains Xiaodong Liu, an affiliate professor on the Faculty of Data Engineering at Nanchang College, who was concerned within the research.
Beforehand a analysis staff sought to create an equalizer that would lengthen the LED bandwidth from 3 megahertz to 143 MHz. Nonetheless, this method required second-order circuits, which include extra elements than single-order circuits and are thus tougher to fabricate.
Liu and his colleagues sought an easier system. “The proposed hybrid active-passive single-order scheme goals to strike a steadiness by incorporating an lively module into the single-order passive circuit construction. This method seeks to reinforce bandwidth whereas sustaining stability and lowering design complexity,” explains Liu.
Listed here are back and front views of the equalizer-based seen mild communication system

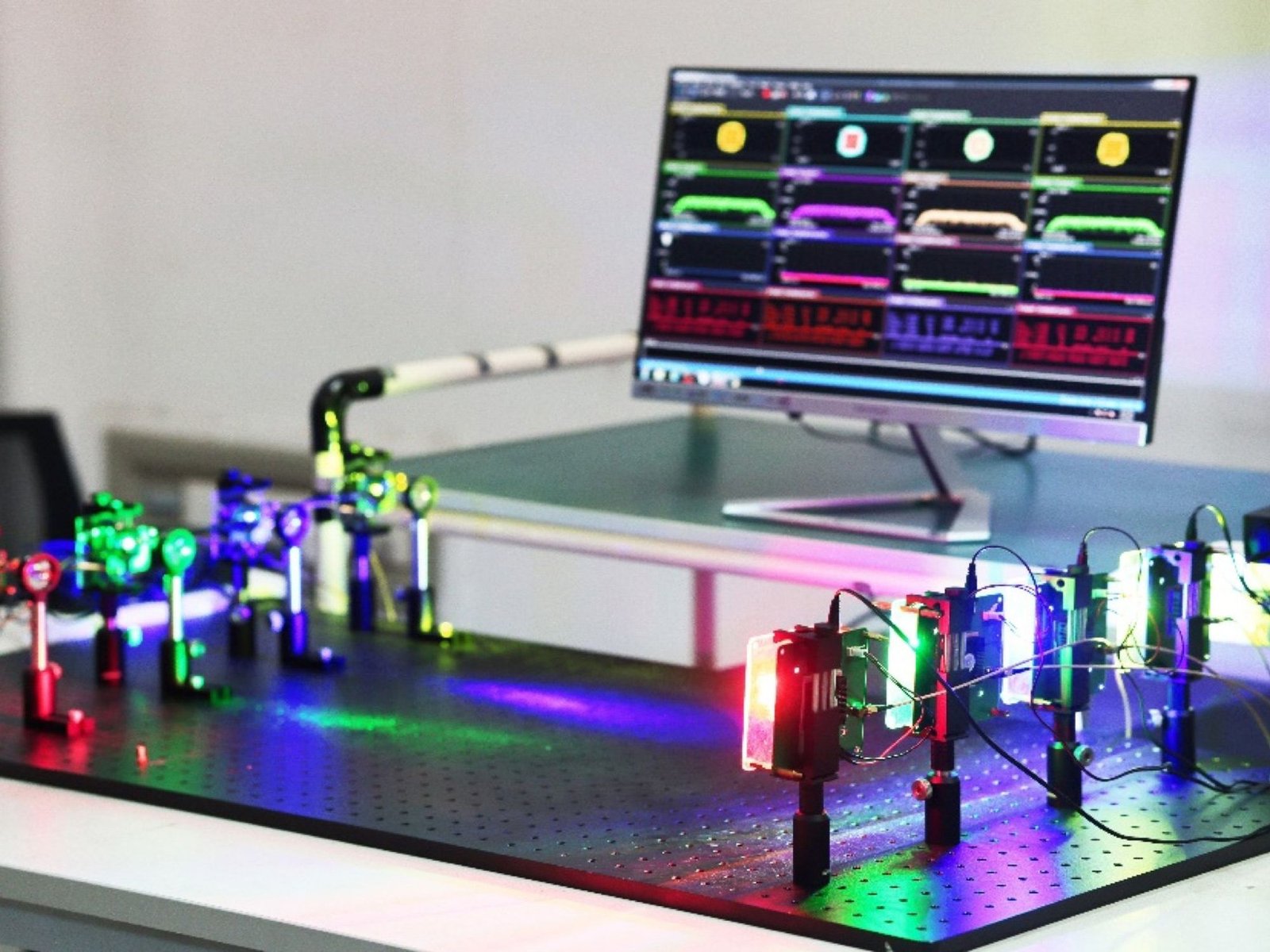

Of their research, the researchers examined the brand new equalizer by means of a collection of experiments. They report that the system can successfully broaden the bandwidth of normal LEDs as much as 181 MHz, a 20- to 30-fold enhance. The authors say they consider it to be the very best prolonged bandwidth by a resistor-capacitance equalizer that depends on a single-order circuit.
Experiments present that the system can obtain an general transmission charge of three.12 gigabits per second over a distance of 4 meters. The bit error ratio efficiency is under 1.2 × 10−6.
Because of this the despatched sign very intently matches the obtained sign, notes Yuhao Wang, a professor and head of FORSEAI laboratory at Nanchang College, who was additionally concerned within the research.
Liu and Wang plan to supply miniaturized high-speed LED driver modules based mostly on their proposed equalizer, which they’ll combine right into a power-over-Ethernet-enabled clever lighting communication community. Their take a look at community will cowl 11,000 sq. meters.
“The PoE-enabled lighting communication community can present power financial savings of as much as 70 p.c, and the proposed equalizer will be capable of present Gbps communication charges,” says Wang.
