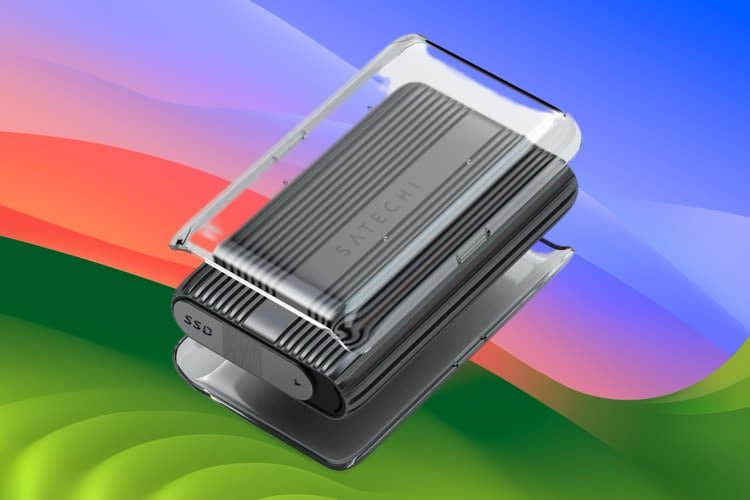

Satechi, a model well-known for its equipment, provides a USB4 enclosure that may settle for an NVMe SSD. And this know-how supplies higher speeds than USB 3.2 or Thunderbolt, regardless of an equal theoretical velocity (40 Gb/s).
USB4 (with out the area) is a typical primarily based partly on Thunderbolt. It permits theoretical speeds of 40 Gb/s however it’s however quicker than Thunderbolt 3, we had been in a position to see this within the check of the ZikeDrive, one of many first suitable fashions.
USB4 lastly arrives: check of the ZikeDrive case, for a quicker exterior SSD
There’s a good purpose behind this level: Thunderbolt 3 (and Thunderbolt 4) solely permit 32 Gb/s for knowledge in apply, encapsulation brings speeds of round 26 Gb/s (round 3 .2 GB/s) in the perfect case. USB4, quite the oppositecan use 40 Gb/s for knowledge and it’s potential to achieve round 3.6 GB/s (roughly 29 Gb/s).
Satechi’s enclosure, the USB4 NVMe SSD Professional, is $120 and makes use of the identical chip because the mannequin we examined: an ASM2464PD controller. It at present provides the perfect of all worlds: it will possibly function in USB4 – the quickest mode –, in Thunderbolt 3 mode (for Intel Macs), in USB 3.2 Gen 2×2 at 20 Gb/s (for PCs, Apple doesn’t help this customary) and in USB 3.2 at 10 Gb/s for the uncommon Macs incompatible with Thunderbolt (or if you happen to use a USB-A connection).
In apply, you’ll clearly want a reasonably quick SSD (a PCI-Categorical 4.0 mannequin is strongly really helpful), just like the WD Black SN850X. And also you clearly want a Mac suitable with USB4 to get the true meat out of it. All Apple Silicon fashions help USB4, whereas Intel Macs are restricted to Thunderbolt 3, about 20% slower with such a case. Lastly, be aware that the M2 Macs appear somewhat quicker than the M1: we obtained round 3.2 GB/s in a benchmark, and a drive outfitted with a Mac mini M2 and a Zike field goes as much as 3 .4 GB/s… double the inner SSD restricted by Apple.
The one fault, aside from the excessive worth, is frequent to all quick containers: a excessive working temperature. Certainly, between the controller and the SSD, it will possibly simply attain round fifty levels on the case, which acts as a heatsink.
