| ADATA Legend 970 PCIe Gen 5 SSD: At present $339 (2TB) The |
|||
|
|
||
We can’t beat across the bush an excessive amount of on this one, however as traditional, let’s check out the specs earlier than we get into benchmarks and dialogue of this strong state drive.
ADATA Legend 970 SSD Specs And Options
Discover The ADATA Legend 970 PCIe 5 SSD @ Amazon
Inspecting the ADATA Legend 970, we see a well-known configuration: a Phison E26 controller mated to Micron 232-layer NAND flash. ADATA specs the drive for optimum sequential throughput of about 10 gigabytes per second both means, and guarantees 1.4 million IOPS in 4K-aligned random reads and writes, though these latter numbers are doubtless in a mostly-unrealistic benchmark with a excessive queue depth and variety of threads. The drive is available in 1TB and 2TB variations; we’re testing the 1TB drive immediately.

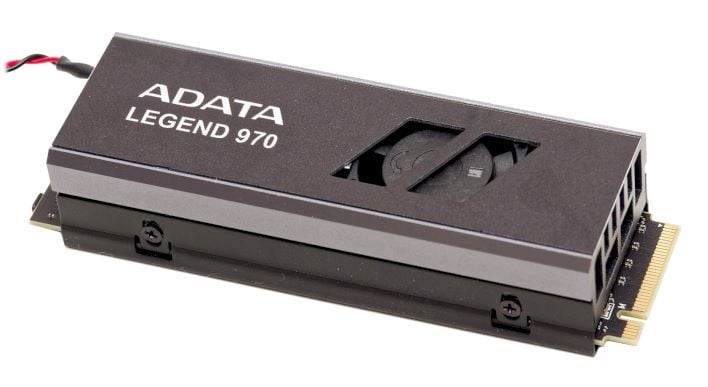

Yep, that is a SATA energy connector hanging off the heatsink. Identical to with the Phison E26 reference platform that we checked out earlier than, the ADATA Legend 970 consists of lively cooling. It will be straightforward to take a look at this as a failing of the ADATA drive, however the appropriate perspective is that ADATA is just ensuring that your SSD offers its full efficiency always. E26 drives run sizzling, and Phison truly recommends lively cooling, though only a few of those drives embody it.
The underside of the drive bears the sticker with the serial quantity and different info. We might wish to see this turn into commonplace on M.2 SSDs; having the sticker on prime impedes cooling a bit, and likewise makes this info susceptible to getting destroyed by thermal pads and warmth. The “Guarantee Void If Eliminated” marker is just not legitimate in the US, however maybe it applies in different territories the place these drives are offered.
Like many different SSDs in its class, the Legend 970 implements an SLC-like cache to boost write efficiency. As you’ll be able to see above, with the 1TB drive, that cache will function at full pace till simply 150GB of knowledge is sequentially written to the drive, at which level write efficiency dips significantly. 1700 MB/sec is not dangerous, however it’s a great distance from the highest pace of this drive.
ADATA Legend 970 SSD Benchmarks
Below every check situation, the SSDs showcased right here had been put in as secondary volumes in our testbed, with a separate drive used for the OS and benchmark installations. Our testbed’s motherboard was up to date with the most recent BIOS out there on the time of publication and Home windows 11 was totally up to date. Home windows firewall, computerized updates, and display savers had been all disabled earlier than testing and Focus Help was enabled to stop any interruptions.
In all check runs, we rebooted the system, ensured all temp and prefetch information was purged, and waited a number of minutes for drive exercise to settle and for the system to succeed in an idle state earlier than invoking a check. The entire drives right here have additionally been up to date to their newest firmware as of press time. The place relevant, we might additionally sometimes use any proprietary NVMe drivers out there from a given producer. When not out there, the drives used the Microsoft driver included with Home windows 11.
HotHardware’s Take a look at System:
| Processor: Intel Core i9-13900K Motherboard: Video Card: Reminiscence: Storage: |
OS: Home windows 11 Professional x64 Chipset Drivers: Benchmarks: |
IOMeter Benchmarks
IOMeter is a well-respected trade commonplace benchmark. Nevertheless, regardless of our outcomes with IOMeter scaling as anticipated, it’s debatable as as to whether or not sure entry patterns truly present a sound instance of real-world efficiency. The entry patterns we examined could not mirror your specific workloads, for instance. That mentioned, we do suppose IOMeter is a dependable gauge for relative throughput, latency, and bandwidth with a given storage answer. As well as, there are particular highly-strenuous workloads you’ll be able to place on a drive with IOMeter, that you could’t with most different storage benchmark instruments.
Within the following tables, we’re exhibiting two units of entry patterns; a customized Workstation sample, with an 8K switch dimension, consisting of 80% reads (20% writes) and 80% random (20% sequential) entry and a 4K entry sample with a 4K switch dimension, comprised of 67% reads (33% writes) and 100% random entry. Queue depths from 1 to 16 had been examined…
The Kingston Fury Renegade’s odd scaling apart, the Legend 970 comports itself pretty nicely in these benchmarks. This can be a difficult workload, and all three of our Phison E26-based drives—that’s, the Legend 970, the FireCuda 540, and the T700—run neck and neck throughout all the checks. Curiously, within the 8K check, the XPG Gammix S70 and the Samsung SSD 990 Professional leap out forward regardless of being PCIe 4.0 drives. Observe, nevertheless, they’re based mostly on totally different controllers (Samsung and Innogrit)/ It serves for instance that interface pace is not the whole lot.
These numbers symbolize the common bandwidth for the drives we examined with each entry patterns, throughout each queue depth. The Fury Renegade appears robust right here, however keep in mind its trailing efficiency on the all-important low queue depths. Total, the opposite two PCIe 4.0 drives dominate within the 8K check, however all the 5.0 drives are operating neck and neck.
These latency checks mainly symbolize the identical information because the throughput checks above, simply reversed. That is not essentially the case precisely, however on this instance, it’s. The IOMeter Workstation Entry Sample check is punishing, and it is no shock that the late-gen PCIe 4.0 drives outperform right here given the emphasis on speedy response over peak throughput.
SiSoft SANDRA 2022
Subsequent, we used SiSoft SANDRA, the System ANalyzer, Diagnostic and Reporting Assistant for some fast checks. Right here, we used the File System Take a look at and supply the outcomes from our comparability SSDs. Learn and write efficiency metrics, together with the general drive rating, are detailed beneath.
Sandra’s storage benchmark is far more a check of sequential efficiency, and as you’d count on, our PCIe 5.0 drives go away the older PCIe 4.0 drives within the mud. These checks aren’t tremendous related to most customers, however when you’re doing a whole lot of file copying, or manipulating very massive information often, then this could be an important checks to you. The Legend 970 gives glorious efficiency on this check, on par with the Seagate drive—naturally, as each SSDs use the identical controller and PCIe 5.0 interface.
ATTO Disk Benchmark
ATTO is one other “fast and soiled” kind of disk benchmark that measures switch speeds throughout a selected quantity size. It measures uncooked switch charges for each reads and writes and graphs them out in an simply interpreted chart. We selected .5KB via 64MB switch sizes and a queue depth of 6 over a complete max quantity size of 256MB. ATTO’s workloads are sequential in nature and measure uncooked bandwidth, quite than I/O response time, entry latency, and so on.
In ATTO, the ADATA Legend 970 loses a little bit of floor in opposition to the Seagate FireCuda 540, however neither drive can sustain with the Essential T700 as soon as the switch dimension will get large enough. Essential’s drive simply runs away from the pack, very like we noticed within the SANDRA check above.
The place the XPG Gammix S70 was in a position to dangle robust with the Samsung SSD 990 Professional in IOMeter, it struggles right here, and each drives in the end get left within the mud when switch sizes develop sufficient that the PCIe 5.0 drives can flex their current-generation muscle tissues. The efficiency of the three E26-based drives may be very comparable right here, as you’ll count on. The differeces are largely margin of error on this check.
AS SSD Compression Benchmark
Subsequent up we ran the Compression Benchmark built-into AS SSD, an SSD particular benchmark being developed by Alex Clever Software program. This check is attention-grabbing as a result of it makes use of a mixture of compressible and non-compressible information and outputs each Learn and Write throughput of the drive. We solely graphed a small fraction of the information (1% compressible, 50% compressible, and 100% compressible), however the development is consultant of the benchmark’s full outcomes.
The compressibility of the information being transferred throughout the drives we examined has just about no impression on efficiency, however it’s good to verify that we have come a great distance from the times of SandForce controllers shedding two-thirds of their efficiency on non-compressible information.The one odd outlier is the small acquire on the Adata Legend 970 on the write check. These drives positively aren’t abusing compression to extend their numbers. Many of the variation seen right here with these drives is because of their conduct with this particular benchmark’s workload.
