This motherboard is engineered with a 20+1+1 section energy design that includes 90A sensible energy phases, high-quality black capacitors rated for 20,000 hours of imply time between failures (MTBF), and a sturdy voltage regulator module (VRM) configured with an eight-layer printed circuit board (PCB) that features a 2oz copper layer for improved electrical conductivity and warmth administration. The VRM’s thermal resolution includes twin extra-large heatsinks linked by a warmth pipe, with one of many heatsinks integrating a fan for lively cooling.

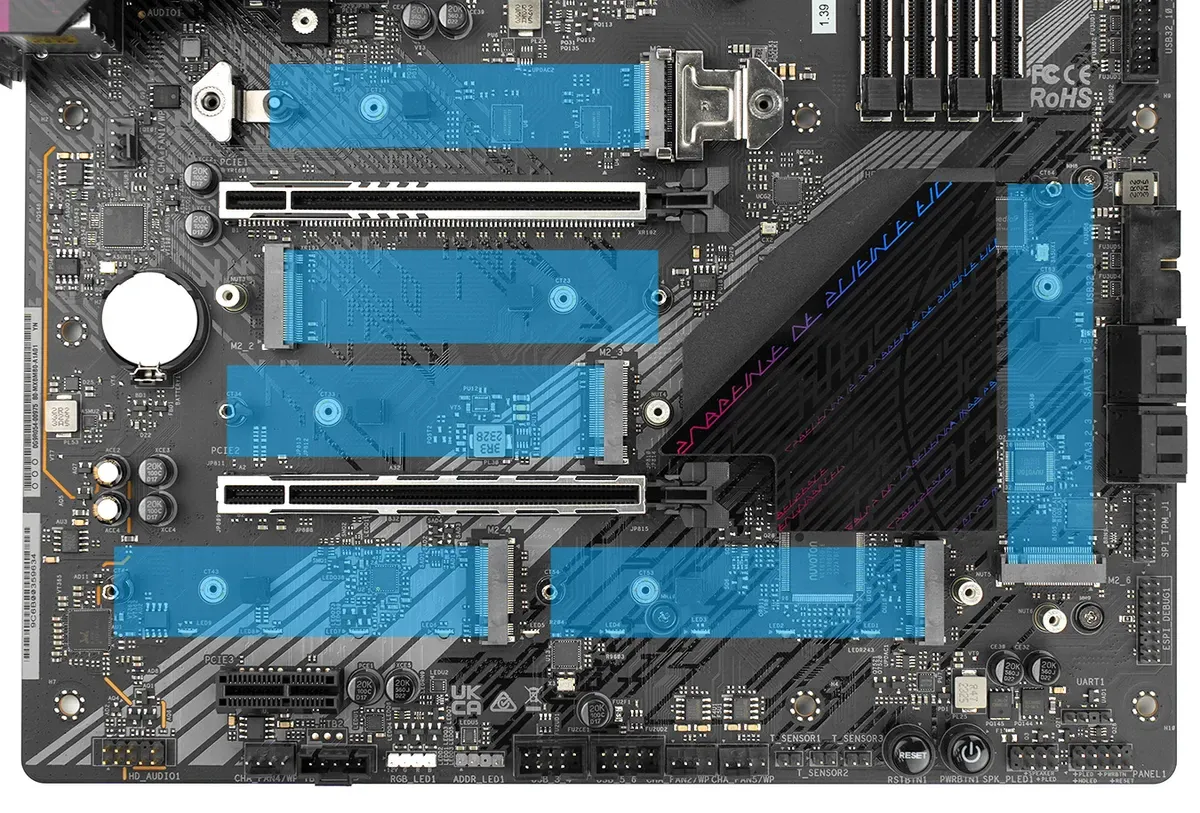

The ASRock Phantom Gaming Z790 Nova WiFi motherboard is designed as an ATX kind issue platform, incorporating the Intel Z790 chipset with help for the LGA 1700 socket, appropriate with Intel’s twelfth to 14th technology processors. Specializing in the motherboard’s storage capabilities, it integrates six M.2 slots designed for NVMe drives, accommodating 2260 and 2280 kind elements. The first M.2 slot presents PCIe 5.0 interface with most bandwidths as much as 128 Gb/s, whereas the second slot supplies PCIe 4.0 connectivity with as much as 64 Gb/s bandwidth, instantly routed by way of the CPU lanes. An extra three M.2 slots can be found by way of the chipset’s PCIe lanes, with one supporting each SATA III and PCIe 4.0 modes. The inclusion of 4 SATA III ports enhances the NVMe slots, with all interfaces supporting varied RAID configurations for enhanced storage flexibility. Notably, the activation of the M.2_1 slot adjusts the PCIe1 slot to function at x8 mode.
For growth, the motherboard presents two PCIe x16 slots, with one that includes PCIe 5.0 x16 and the opposite at PCIe 4.0 x16 configured to x4 mode, alongside a single PCIe 3.0 x1 slot. A vertical Key-E slot can be accessible, purposed for a type-2230 WiFi 7/BT 5.4 module with MU-MIMO functionality, additional augmenting connectivity choices.
The structural integrity of the motherboard is fortified with a steel backplate to counteract bending. The first PCIe 5.0 slot is constructed with Floor Mount Know-how (SMT), 15μ gold contacts for dependable sign integrity, and is strengthened to help the burden of heavy graphics playing cards, additional aided by an included help bracket.
Audio is managed by a Realtek ALC4082 codec, with devoted PCB layers for left and proper audio channels to make sure sound readability. Networking is offered through a 2.5Gigabit Killer 3100 LAN and an built-in 802.11be 2×2 WiFi 7+ BT 5.0 module. The motherboard’s rear I/O panel features a complete array of USB ports, that includes 9 USB Kind-A connectors throughout completely different specs and a USB 3.2 Gen 2×2 Kind-C port.
Different technical specs embody a TPM header, Thunderbolt AIC help, a number of temperature sensor headers, RGB and addressable RGB headers, and onboard switches for system administration and troubleshooting. Energy supply to the CPU is facilitated by way of twin 8-pin connectors and a 24-pin essential energy connector, able to deal with the calls for of overclocking and reminiscence profiles like Intel XMP and AMD EXPO.
The ASRock Phantom Gaming Z790 Nova WiFi motherboard is at the moment priced at $299.99
