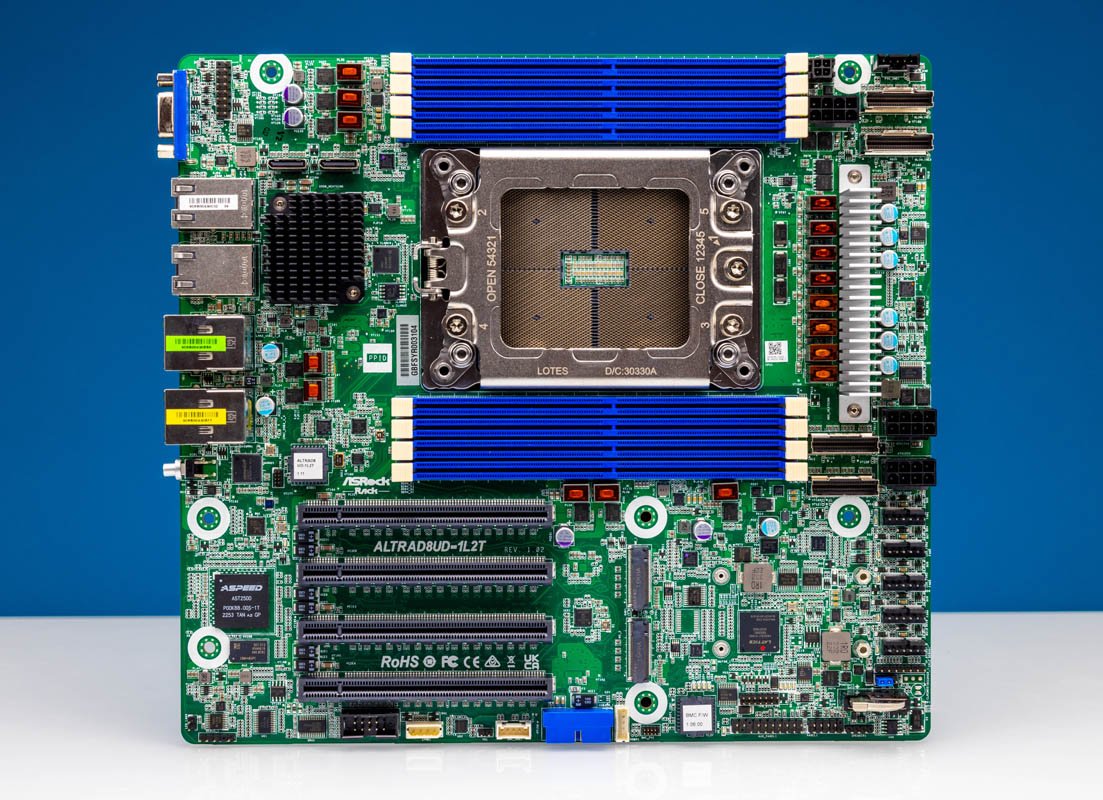

ASRock Rack ALTRAD8UD-1L2T Block Diagram
Right here is the motherboard’s block diagram:
One thing that’s notable right here is that issues just like the USB3 ports are taking PCIe lanes and have hubs onboard. RCA5 has all of that I/O. Then, the slots take up 4 of the PCIe Gen4 x16 roots. The rest of Slimline SAS, Oculink, and M.2 take up three extra PCIe Gen 4 x16 roots.
Nonetheless, there isn’t a PCH onboard, making this a easy design. Additionally, we do not need issues like auxiliary PCIe lanes (e.g. AMD EPYC’s WAFL.)
General, although, there may be quite a lot of I/O being uncovered on this platform.
ASRock Rack ALTRAD8UD-1L2T Efficiency
We used the Noctua NH-D9 AMP-4926 4U cooler together with the Ampere Altra Max CPU on this motherboard and wished to check it to some pre-built server platforms with customized motherboards.
The general efficiency was very shut and inside regular variations. That’s precisely what we’d wish to see from this motherboard and cooler mixture. It was virtually at all times forward of the 1U HPE resolution as effectively which is an efficient consequence for a self-built system.
ASRock Rack ALTRAD8UD-1L2T Energy
Powering the ALTRAD8UD-1L2T might not make sense since most people are possible to make use of a regular ATX energy provide. As a substitute, that is powered by way of the 12V energy inputs, however the 24-pin ATX energy connector additionally has an necessary operate: it controls energy. Consequently, ASRock Rack bundles this little cable.
In the event you use a 24-pin ATX energy provide, you’ll plug the 24-pin connector into the adapter. The 12V connectors nonetheless have to be related, however that is what helps with the ability on signaling.
ASRock Rack ALTRAD8UD-1L2T Cooling
In December, we talked about that the out there CPU, motherboard, and 2U cooler could be difficult. We not too long ago featured the Noctua NH-D9 AMP-4926 4U and NH-U14S AMP-4926 coolers.
Coolers are a giant deal. From day 1 seeing this platform, I’ve been asking for coolers that will work in quite a lot of platforms. Passive coolers are nice in servers which can be designed for them. When somebody desires to construct a desktop growth server, tower coolers are wanted. The Altra/ Altra Max could be cooled with air and doesn’t want liquid coolers.
Nonetheless, one must be conscious of the cooler dimension, chassis, and the airflow path. Our guess is the Noctua NH-D9 AMP-4926 4U cooler goes to be the one that folk will need.
These Noctua coolers are coming. When they’re out, they’ll go an extended technique to make the platform a canvas for inventive system constructing.
Ultimate Phrases
The ALTRAD8UD-1L2T is implausible, and it’s going to change the sport for these trying to make cool servers. Placing some concepts on the market, right here is the ASRock Rack Altra NAS that makes use of this motherboard. This was a proof of idea. One thing to note is that the drives are related by way of a storage controller right here since they’re SATA.
To provide some concept of the loopy designs, right here is an embedded system that’s DC-powered from 7StarLake. This passively cooled Ampere Altra platform, we are able to inform, makes use of this motherboard based mostly on the I/O block.
Allow us to be frank. As nice because the Raspberry Pi is, there has actually by no means been something between the SBCs and high-end servers for growth. The ASRock Rack ALTRAD8UD-1L2T goes to make Arm servers and workstations between these two extremes viable. There could also be some quirks utilizing Arm nonetheless (though it’s mild years from 2016.) As a platform, there could also be some quirks. One factor is obvious although, this can be a motherboard that, as soon as the Noctua coolers hit retail, goes to be a success amongst people who desire a Linux Arm platform.
The place to Purchase
At present, there’s a $1500 Newegg bundle (Newegg Affiliate hyperlink) with the motherboard and an Ampere Altra Q64-22 (64 core / 2.2GHz) with the 2U passive heatsink. We hope extra bundle choices turn into out there quickly in addition to the Noctua coolers.
