Asus specifies compatibility with PCIe 5.0/4.0 M.2 drives, supporting type elements M.2 2242, 2260, 2280, and 22110 throughout its slots. The inclusion of the Q-Latch mechanism additional facilitates simple set up and detachment processes.
In response to energy and thermal administration issues, Asus has built-in a 6-pin PCIe energy connector into the cardboard. A two-phase energy design ensures the supply of 14W to each drive, guaranteeing ample energy provision.
The cardboard’s structure features a shroud encompassing the 4 M.2 compartments and an accompanying cooling fan, paying homage to a blower-style graphics card fan. This fan intakes ambient air, routing it over the M.2 compartments earlier than ejecting it via the extensively perforated bracket. Asus signifies that this cooling framework, along with thermal pads adorning the M.2 slots, effectively curtails temperature spikes throughout extended knowledge operations. Person-oriented management over the fan is facilitated via the Asus Fan Xpert 4 software program or through a guide swap located on the cardboard’s rear interface.

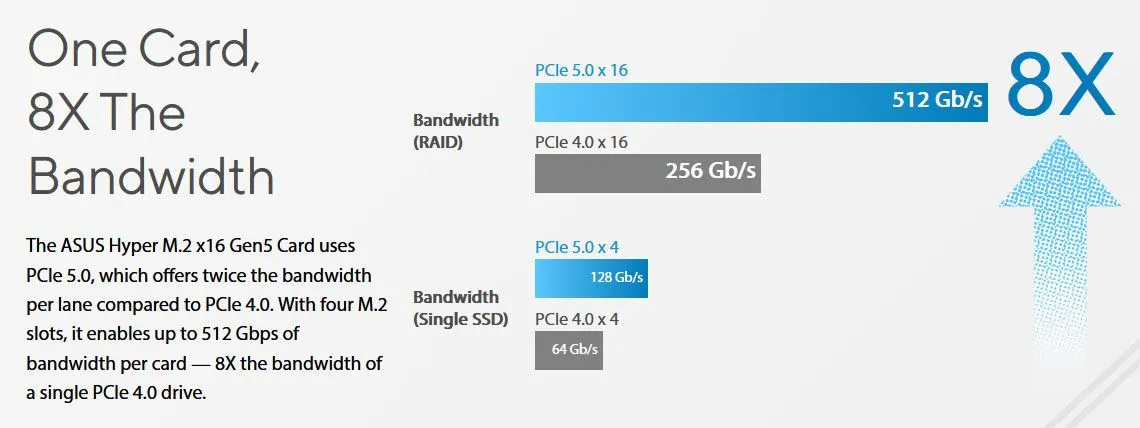

From a efficiency perspective, the adapter capitalizes on the fast knowledge switch charges of 4 PCIe 5.0 M.2 NVMe drives configured in RAID 0 mode, resulting in a consolidated striped array. This configuration allows the cardboard to attain a collective bandwidth of 512 Gbps, translating to roughly 128 Gbps for every slot.
The compatibility breakdown specifies that programs constructed round Intel Core CPUs and the most recent motherboard and graphic card configurations are restricted to using two M.2 slots concurrently because of a 16 CPU PCIe 5.0 lane constraint. In juxtaposition, platforms that includes AMD Ryzen can exploit all 4 slots, availing as much as 28 CPU PCIe 5.0 lanes. A suggestion for all customers to replace motherboard BIOS variations underscores the significance of guaranteeing optimum compatibility. Asus has priced the Hyper M.2 x16 Gen5 Card at $79.99, anticipating its availability inside a window of seven to 14 days.
