For greater than a 12 months, we’ve been anticipating for Amazon Internet Providers to launch its Graviton4 processor for its homegrown servers at this 12 months’s re:Invent, and lo and behold, chief govt officer Adam Selipsky rolled out the fourth era within the Graviton CPU lineup – and the fifth iteration together with final 12 months’s overclocked Graviton3E processor geared toward HPC workloads – throughout his thrombosis-inducing keynote on the convention.

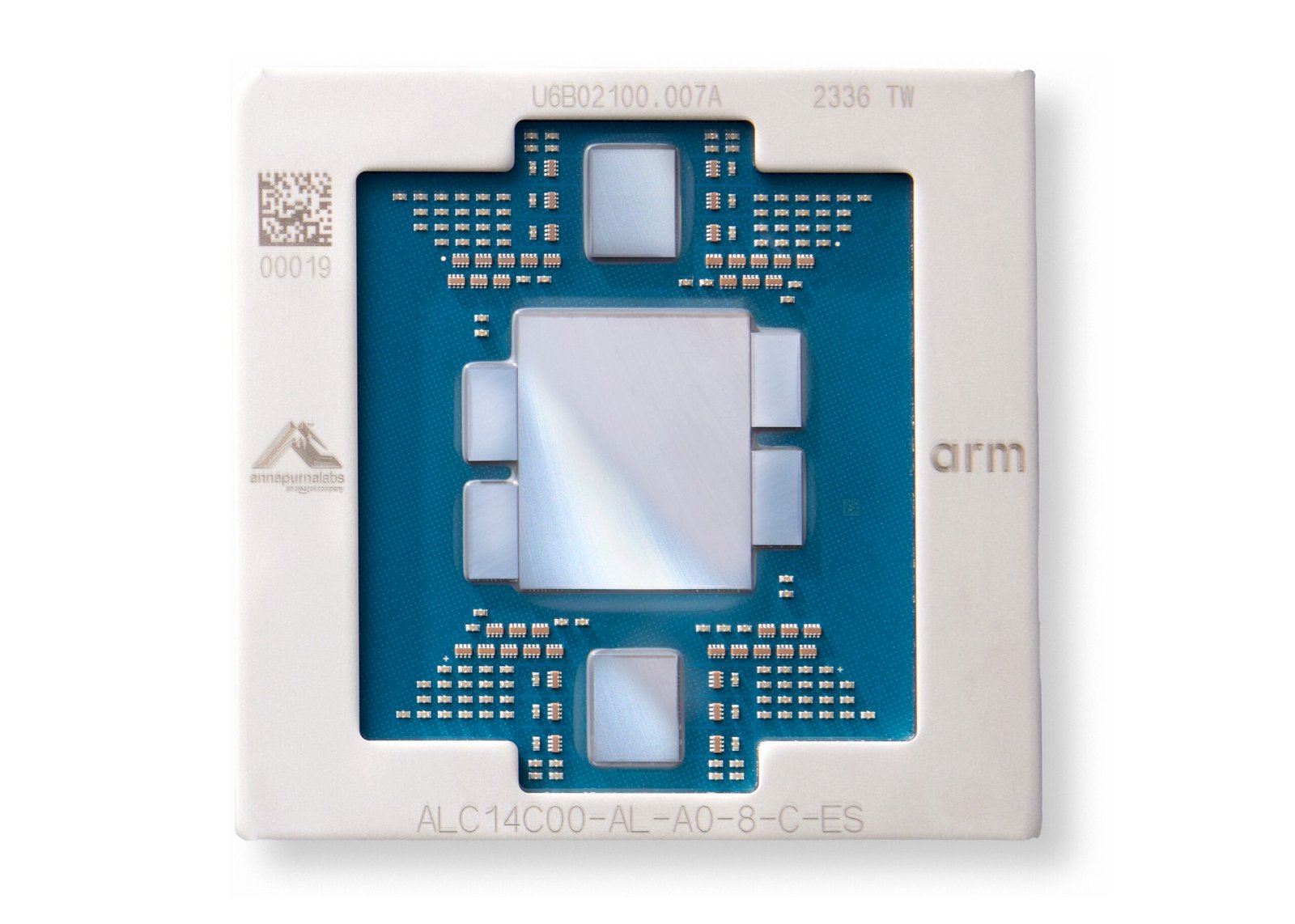

Selipsky didn’t do the compulsory maintain up of the Graviton4 chip throughout the keynote, which is odd. However the press launch did embody a chip shot, which is proven within the characteristic picture above.
As we additionally anticipated, the Graviton4 can also be based mostly on Arm Ltd’s “Demeter” Neoverse V2 core, which relies on the Armv9 structure as is Nvidia’s “Grace” CG100 CPU. (Formally, Nvidia has not given Grace a product title per its GPU naming scheme, so we’re doing it there. The C is for CPU and the G is for Grace.) We did a deep dive on the Demeter V2 core again in September when the “Genesis” Compute Subsystem announcement was made by Arm, and the V2 core has an enchancment of 13 p.c in directions per clock in comparison with the “Zeus” V1 core that preceded it and that was used within the Graviton3 and Graviton3E processors already deployed by AWS.
This isn’t an enormous leap in IPC, clearly, and therefore the core counts are leaping and that’s the reason we’re additionally assuming that AWS has moved from the 5 nanometer processes from foundry companion Taiwan Semiconductor Manufacturing Co used to etch the Graviton3 and Graviton3E chips to a denser and considerably mature 4 nanometer course of from the world’s favourite foundry. This identical 4N course of is used to make Nvidia’s Grace CPU in addition to its “Hopper” GH100 GPUs – each of that are taking the generative AI world by storm.
The Graviton4 bundle has 96 of the V2 cores on it, which is a 50 p.c enhance over the Graviton3 and Graviton3E, and the Graviton4 has twelve DDR5 controllers on it in comparison with the eight DDR5 reminiscence controllers, and the pace of the DDR5 reminiscence used with the Graviton4 was boosted by 16.7 p.c to five.6 GHz. So the maths throughout all of that, and the Graviton4 has 536.7 GB/sec of reminiscence bandwidth per socket, which is 75 p.c larger than the 307.2 GB/sec supplied by the prior Graviton3 and Graviton3E processors.
Within the presentation by Selipsky in addition to within the restricted specs that AWS has put out in regards to the Graviton4, the corporate says that generic Internet purposes run 30 p.c quicker on Graviton4 than on Graviton3 (not Graviton3E, which was overclocked and scorching), however that databases would run as much as 40 p.c quicker and that giant Java purposes would run 45 p.c quicker. Now, that would imply that AWS has carried out simultaneous multithreading (SMT) within the V2 cores, offering two threads per core, like X86 processors from Intel and AMD do and that some Arm chips have carried out previously.
We don’t suppose so, and our comparative salient traits desk beneath says there are 96 threads and never 192 threads per socket. We predict it’s 96 threads per socket and that the doubling of the L2 cache per core to 2 MB has had a dramatic impact on the efficiency of Java and database purposes. You will get 3X the vCPUs by including two-way SMT, however that will not provide you with 3X the reminiscence. It will nonetheless solely be 1.5X the reminiscence in comparison with a Graviton3 chip.
One thing else that AWS mentioned in its weblog in regards to the new R8g situations that use the Graviton4 chip additionally gave us pause: “R8g situations supply bigger occasion sizes with as much as 3X extra vCPUs and 3X extra reminiscence than present era R7g situations.”
With 96 cores and a dozen reminiscence controllers – each boosted by 1.5X from the Graviton3 – you’ll solely count on the R8g to have 1.5X as many vCPUs and only one.5X extra reminiscence capability than the R7g situations utilizing the Graviton3 chip. And so, we expect that is the primary two-socket implementation of the Graviton household. That can also be one cause why we expect that the Graviton4 chip has round 95 million to 100 million transistors relatively than the 82.5 million you’ll count on if AWS simply added 50 p.c extra cores to the Graviton3 design and left it at that. The doubling of the L2 cache, the addition of 4 extra DDR5 reminiscence controllers, and a pair of I/O controllers that additionally now do line-rate encryption additionally added to the transistor funds, we expect.
We predict that the Graviton4 is noteworthy in one other means. Up to now, Neoverse blocks had been carried out in 32 core or 64 core blocks and Arm instructed utilizing chiplets with UCI-Specific or CCIX interconnects to construct bigger processor complexes. Firms making their very own Arm CPU designs might all the time implement a monolithic die, which you’d do for latency and energy causes – these interconnects usually are not free – btu a monolithic die, particularly one with 96 cores, would have a disproportionately decrease yield than a 32 core or 64 core block. And that has a value, too.
So we expect, wanting on the chip shot above, that the Graviton4 is a two-chiplet bundle, with one chiplet rotated 180 levels from the opposite. That’s most likely why the reminiscence controller chiplets on the left and proper of the central core complicated on the bundle are offset from one another.
Right here is how we expect the Graviton4 stacks as much as the prior generations of chips:
Admittedly guessing, we expect that the Graviton4 has rather less efficiency than the Graviton3E, however burns practically half the ability to get there and has reminiscence capability that’s 50 p.c larger and bandwidth that’s 75 p.c larger inside what might be round a 130 watt energy envelope with a a lot decrease – and far more fascinating – 2.7 GHz clock pace.
With these numbers as we’ve estimated them, proven in daring purple italics as normal, the Graviton4 chip has about the identical efficiency per watt as measured in ECU efficiency models because the Graviton3, which is about all you’ll be able to hope for with a modest course of shrink and much more cores.
We are going to replace this story as extra particulars emerge.
Yet one more factor: AWS mentioned in its announcement (however Selipsky didn’t brag in his keynote) that it has deployed over 2 million of Graviton processors in its fleet up to now and has over 50,000 prospects which have used them.
That may be a very respectable variety of CPUs, and if AWS had not began doing Graviton in-house, these chips would have all come as an alternative from Intel, AMD, or perhaps even Ampere Computing. However they didn’t. Which is why pinning your online business plans to the hyperscalers and cloud builders is a dangerous proposition.
