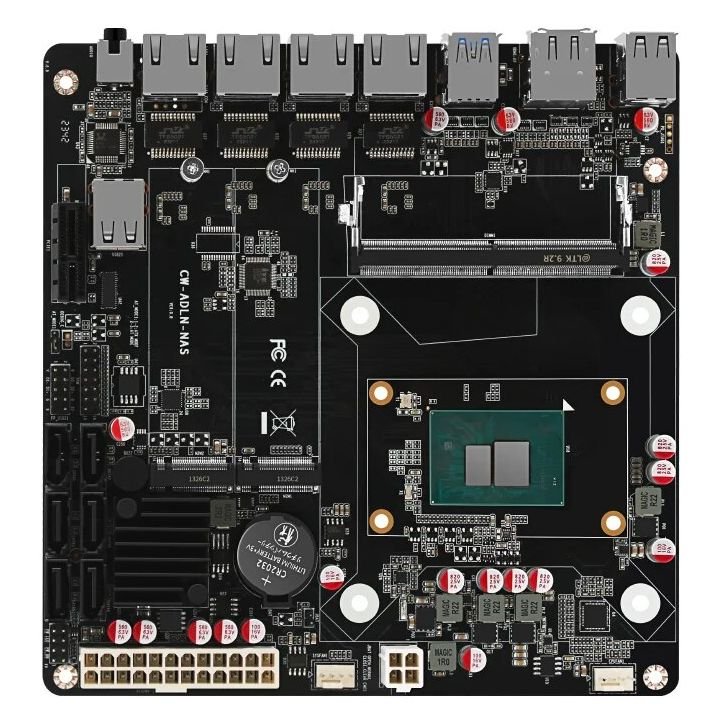

Chinese language mini PC maker SZBox is promoting a mini ITX motherboard that mixes an Intel Alder Lake-N low-power processor with assist for as much as 32GB of RAM, 4 2.5 GbE Ethernet ports, and assist for a lot of storage, thanks to 6 SATA 3.0 connectors and two M.2 2280 slots, making it an possibility for people that need to construct their very own network-attached storage (NAS) system.
The SZBox motherboard is obtainable from AliExpress for $189 and up.
The beginning worth is for a mannequin with a 6-watt, quad-core Intel N100 processor, however you can too pay $289 for a mannequin with a higher-performance 16-watt, octa-core Intel Core i3-N305 chip. It’s also possible to pay slightly extra to get both model in a bundle that additionally features a fan for lively cooling.
The board measures 170 x 170mm (6.7″ x 6.7″) and may slot in any laptop chassis designed for mini ITX motherboards.
It has a single SODIMM slot for as much as 32GB of DDR5-4800 reminiscence and two M.2 slots that can be utilized for PCIe 3.0 SSDs. There’s an Intel i226-V Ethernet controller for the board’s 4 2.5 GbE RJ45 ports, enabling high-speed networking capabilities.
With that many networking ports, the board may additionally serve double obligation as a router or firewall in addition to a mass storage system.
Different ports embrace HDMI 2.1, DisplayPort 1.4b, one USB 3.0 Kind-A port, two USB 2.0 Kind-A ports, a USB 2.0 Kind-C port, and a 3.5mm audio jack. There are additionally two inner USB ports and a PCIe 3.0 x1 interface (but it surely shares assets with one of many M.2 slots, so you’ll be able to both use two M.2 SSDs or a single M.2 SSD and the PCIe connector).
through AndroidTVBox
