Raspberry Pi 5 add-on boards that help you connect a PCIe NVMe stable state drive to the little laptop have gotten so widespread that I instructed myself I wasn’t going to jot down about new fashions anymore.

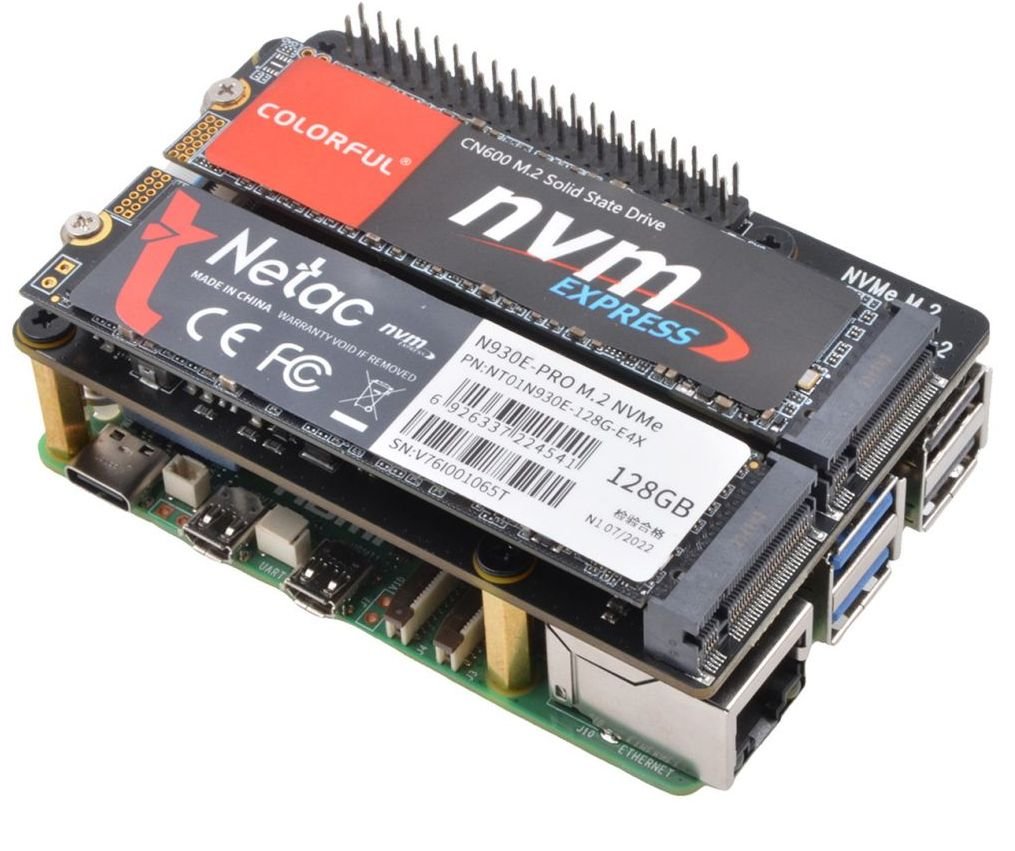

After which I noticed the Geekworm X1004 Twin 2280 NVMe SSD defend. Accessible from AliExpress for $43, this little board is among the costlier choices thus far. However it presents a number of issues that almost all opponents lack: assist for M.2 2280 SSDs (and never simply M.2 2242 or smaller), and assist for utilizing as much as two SSDs directly. It nonetheless may not be a terrific alternative for everybody who needs to make use of an SSD with a Raspberry Pi 5 although.
The largest disadvantage is that whereas you need to use the X1004 so as to add high-speed storage to a Raspberry Pi 5, it’s designed to be used as further storage, not major storage. You possibly can’t at the moment boot from an NVMe SSD when utilizing this add-on board.
Geekworm does make a degree of claiming that you may’t boot “with the present firmware,” which means that it’s attainable a future firmware replace might theoretically help you set up an bootable working system to a stable state drive. However for now that seems to be a no go.
One other factor to notice is that you just’ll want to concentrate to energy consumption when deciding on SSDs. The board can provide as much as 3.5A per SSDs, however not more than that. Because the board is designed to take a seat on prime of a Raspberry Pi and draw energy from the little laptop’s 40-pin GPIO connector.
The X1004 board is just appropriate with NVMe SSDs and won’t work with SATA SSDs.
However when you get previous these limitations, the board has a number of issues going for it together with assist for as much as two 4TB SSDs (for a complete of 8TB of storage), assist for five Gbps speeds when utilizing PCIe 2.0 drives or 8 Gbps when utilizing PCIe 3.0, LED indicator lights to point out drive standing, and assist for Raspberry Pi’s HAT + Standby energy states, which implies the board will robotically shut down when a Raspberry Pi 5 is powered off.
Geekworm additionally presents a number of optionally available equipment together with a Raspberry Pi warmth sink + fan that may match beneath the X1004 and a 27W energy provide. A bundle with each equipment sells for $60.
