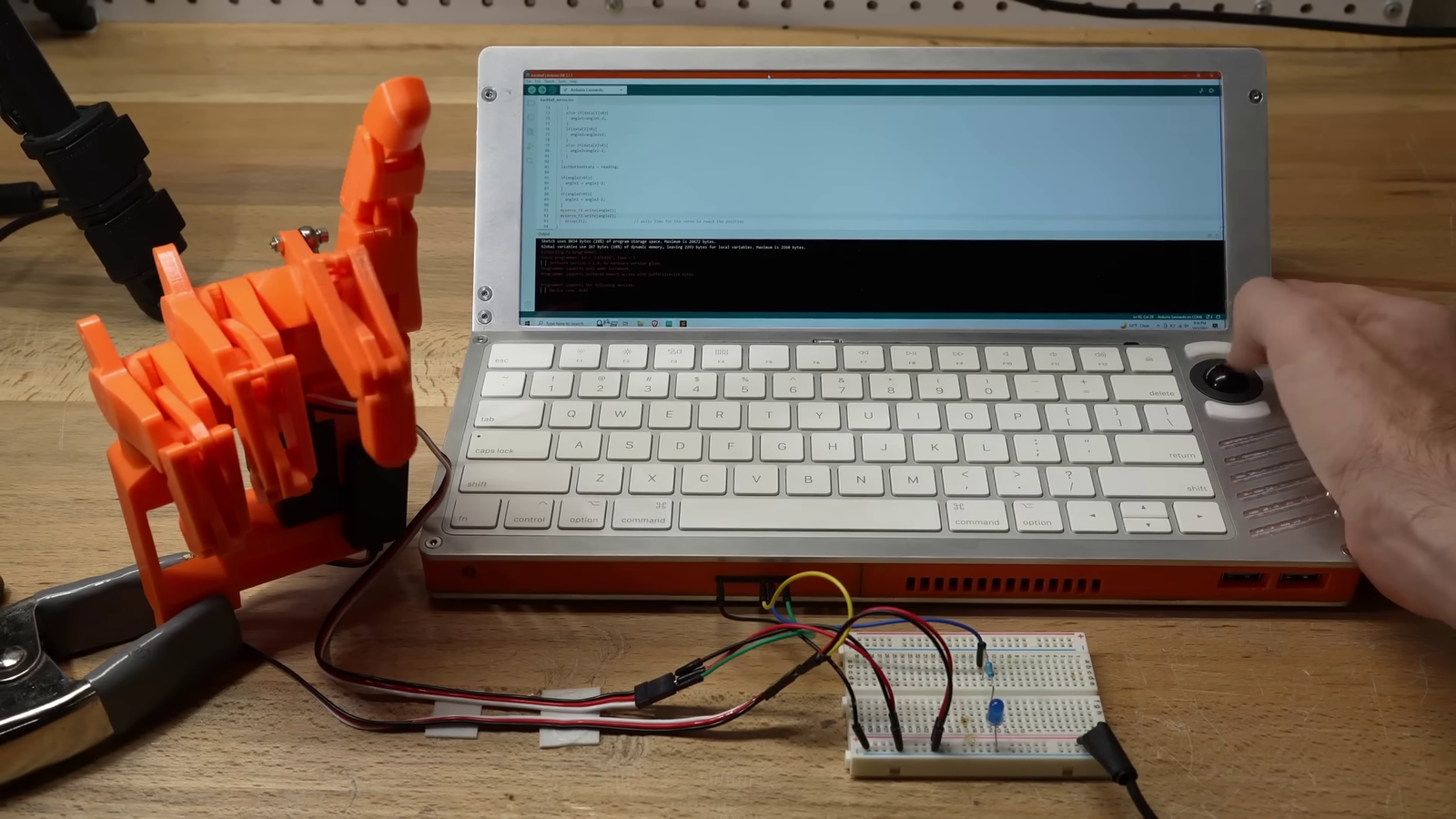

The fantastic thing about a modular ecosystem lies in the way it permits people to repurpose elements in unconventional methods. That is exactly what [Ben Makes Everything] has achieved by utilizing a Framework laptop computer’s motherboard and battery to create a slab-style cyberdeck. (Video, embedded beneath.)
The Framework motherboard presents a wonderful selection for customized moveable pc tasks as a result of its comparatively compact measurement and built-in modular I/O port choices, all based mostly on USB-C. Framework even launched extra documentation to help this use-case. It’s considerably extra highly effective than the usual Raspberry PI, which is often employed in related tasks. Ben selected a 2400 x 900 IPS show that may draw energy and video via a single USB-C cable. For person enter, he opted for an Apple keyboard and an optical trackball with a PS2 interface. He utilized a Arduino Professional Micro as a PS2-to-USB adaptor, utilizing the remaining pins on the Arduino as a flexible interface for digital tasks.
The enclosure is crafted from machined aluminum plates with 3D printed spacers to safe all elements. The display could be tilted as much as 45 levels for extra ergonomic desktop use. The Framework motherboard is supplied with 4 USB-C ports for peripheral units; [Ben] allotted one for the show and one other for a USB hub which connects the keyboard, Arduino, and exterior USB and HDMI connectors. The remaining USB-C ports are nonetheless obtainable for unique Framework growth playing cards.
The finished undertaking not solely seems implausible however may additionally be extremely useful. It might have been an incredible entry in our current Cyberdeck Problem.
