Find out how to know if an M.2 SSD is appropriate along with your motherboard

Storage gadgets are getting greater and sooner, and for those who’re nonetheless rocking an archaic mechanical laborious drive, your PC’s efficiency will undergo quite a bit. Strong-state drives (SSD) are the best way to go for the foreseeable future till a brand new expertise is invented, however they’re not with out their justifiable share of points. In contrast to laborious drives, SSDs are available in varied styles and sizes and even use completely different connectors. For brand spanking new PC customers, selecting an SSD that’s appropriate with their motherboard could be a very actual drawback. An incompatible SSD will both be too quick for the motherboard, too gradual, or won’t work in any respect. To curb that drawback, we’ll take an in-depth take a look at M.2 SSD compatibility so that you don’t spend further on an incompatible drive.

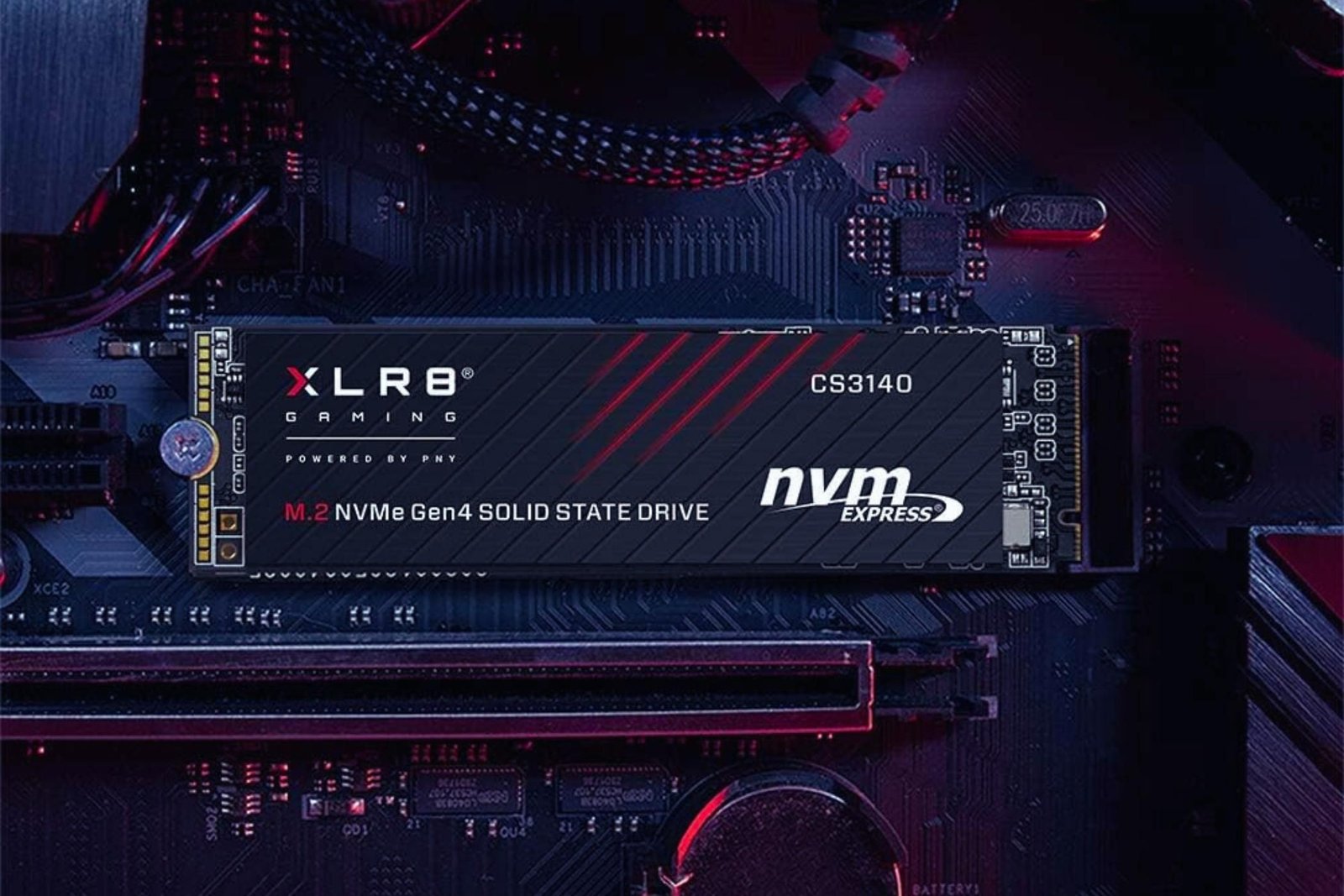

What are M.2, SATA, PCIe, and NVMe?

First, let’s clear up all of the technical jargon you would possibly come throughout. SATA is the older, slower interface utilized by each HDDs and SSDs. Older SSDs that come within the 2.5-inch dimension solely use the SATA 3 interface, which runs at a meager 6GB/s (600MB/s). The PCIe interface is far sooner, with PCIe Gen 5 SSDs supporting as much as a staggering 14,000MB/s.

M.2 is an enlargement slot for varied elements, not simply the SSD. For instance, there are M.2 Wi-Fi playing cards, Bluetooth playing cards, and Ethernet adapters. M.2 slots can use both of the 2 interfaces, relying on how costly and newer your motherboard is. SATA M.2 slots are cheaper and slower than PCIe M.2 slots, however each interfaces assist an SSD. PCIe M.2 slots use NVMe, which is a communication protocol that leverages the elevated bandwidth to assist sooner NVMe SSDs, which is not current in SATA M.2 slots.

No matter interface you select, the one on the SSD must match the M.2’s for it to work. Until your PC helps dual-mode, a SATA M.2 SSD will solely work in a SATA M.2, and an NVME SSD will solely work in a PCIe M.2.

M.2 connector shapes

M.2 SSDs have indents at sure positions on the top with the metallic pins. Equally, the M.2 slots even have matching protrusions at sure positions. These indents and protrusions are referred to as keys. There are two positions for these keys: B and M. When an M.2 slot is considered from the entrance with the pins seen, the slot with the B-key specification may have a protrusion on the left facet, and the one with the M-key specification may have a protrusion on the correct facet of the slot.

M.2 slots with the B-key specification are solely SATA M.2, whereas slots with M-key specification can both be solely PCIe M.2 or would possibly assist SATA if it’s dual-mode. Just like the slots, SATA M.2 SSDs are keyed at each M and B positions, to allow them to slot in SATA M.2 slots and PCIe M.2, even when they won’t work within the latter. NVMe SSDs are keyed solely within the M place, which implies they’ll match within the PCIe M.2 slot because the slot has an identical protrusion on the M place. However NVMe SSDs can’t match into the SATA M.2 slot as a result of protrusion within the slot on the B place, for which there isn’t a indent within the NMVe SSD.

Since an MVMe SSD won’t ever work on a SATA M.2 slot, if an SSD does not match into the M.2 slot, it is a good indicator that your M.2 SSD makes use of a more moderen interface that’s incompatible along with your motherboard’s older interface. Even for those who rotate the SSD the wrong way up, it will not match since each the B and M keys aren’t contralateral.

A breakdown of all of the M.2 SSD sizes

When you choose the SSD with the correct connector form, you need to ensure the size of the SSD is sufficient for the house in your PC. Most desktop motherboards, apart from some mini-ITX motherboards, have ample house for even the longest M.2 SSD. Laptop computer customers, particularly, need to ensure that they choose the SSD that may simply match inside their laptop computer’s M.2 slot. Right here’s a desk of all of the M.2 SSD sizes generally in use:

M.2 Measurement	Size (mm)
22110	110
2280	80
2260	60
2242	42
2230	30

If these sizes confuse you, there’s a easy rule of thumb to recollect these names and lengths. The primary two digits within the dimension denote the width of the SSD, which is 22mm and is identical for all sizes. The final two or three digits denote the size. So, a 2280 M.2 SSD is 22mm huge and 80mm lengthy.

Since an extended M.2 SSD has extra bodily house, 2260, 2280, and 22110-sized SSDs can attain the next max storage capability. Smaller sizes usually have to chop some corners resulting from bodily restraints, which may imply a smaller or no cache or smaller most storage capability. These are additionally dearer than longer SSDs, so at all times attempt to go for the most important dimension of SSD your motherboard can assist.

Find out how to test M.2 SSD compatibility utilizing the motherboard’s specs

It’s fairly simple to test what M.2 interface your motherboard helps and the utmost size of SSD that may slot in it.

In case you don’t know the precise title of your PC’s motherboard, merely go to your Begin menu and seek for Dxdiag.
Open the applying. Skip to step 4 for those who do know your motherboard’s title.
Underneath the System tab, yow will discover the title of your motherboard subsequent to the System Mannequin.
Open your browser and seek for your motherboard utilizing its precise title. For example, I am going to seek for my motherboard, which is the Gigabyte B450 S2h.
Click on on the primary outcome that reveals up. That is the official web site of your motherboard’s producer.
Seek for the specs part on the motherboard producer’s web site and click on on it.
Right here, you’ll discover the precise specs of the M.2 slot in your motherboard, from its interface and dual-mode assist to the utmost size of an M.2 SSD it could match. My motherboard helps NVMe SSD because it’s M-key and makes use of the PCIe interface. It helps 42mm, 60mm, and 80mm lengths of SSDs and may also work with SATA M.2 SSDs.

The specification sheet of your motherboard will inform you all you have to know in regards to the M.2 slot of your motherboard. If you buy an M.2 SSD, ensure to match its specs along with your motherboard’s so that you choose the right SSD on your PC.

SSDs and the way forward for gaming

Ever because the PS5 and Xbox Collection X|S era was launched, SSDs have gained a variety of consideration. These consoles made these SSDs one of many predominant promoting factors, that includes blazing quick loading occasions and the flexibility to rapidly resume as much as three video games from the place you left them with out restarting them. This push for SSDs additionally made its method in the direction of PC gaming, with the brand new Phantom Liberty enlargement pack for Cyberpunk: 2077 and Starfield each requiring SSD as customary to run them. It’s cheap to imagine the brand new IPs may also require an SSD to run, and there’s no higher time than now to ditch your getting old HDD and get on board with the SSD bandwagon.
