The right way to Optimize SSD Efficiency for AI & Edge Computing

September 12, 2023

Weblog

The rise of synthetic intelligence (AI), machine studying (ML), the Web of Issues (IoT), 5G, and different applied sciences requiring the storage, processing, and evaluation of large quantities of information at excessive speeds is prompting the motion of information away from the cloud to the sting.

Edge computing takes place on or close to the units themselves. This considerably cuts down latency and processing time, decreases bandwidth necessities, and presents offline entry to information the place community entry could also be restricted or unavailable.

SSD Market Growth, Rising Functions, and Calls for

Amongst information storage sorts, solid-state drives (SSDs) have been steadily rising in utilization. A research by Market Analysis Future reveals that the market dimension will attain round USD86.5 billion at a compound annual progress price (CAGR) of 15.2% by 2030. The rising adoption is attributed to “rising demand for high-performance storage options in data-intensive purposes,” particularly in industries that require quick and dependable storage.

Gartner, then again, predicts that the SSD market will account for 32% of shipped HDD+SSD exabytes in 2026. By way of SSD sort, the next chart reveals how the cargo of Industrial, Enterprise Server, and Enterprise Industrial SSDs will develop between 2022 and 2027.

With regard to interfaces, PC SSDs with PCIe Gen 4 are anticipated to achieve 90%+ within the fourth quarter of this yr, with crossovers to Gen 5 anticipated by mid-2024.

Server SSDs’ progress was depressed within the 2nd half of 2022 as much as 2023, primarily as a consequence of “anemic” hyperscale, which Serial ATA (SATA) remained resilient as a consequence of server OEMs and human-computer interplay (HCI). The transition to PCIe Gen 4 is ongoing, however the transition to Gen 5 is anticipated to be sluggish, with a hyperscale-dependent crossover anticipated by late 2025 to mid‑2026.

As for storage/boot SSDs, a giant portion is anticipated to stick with SATA, with PCIe Gen4 nonetheless transitioning, because the slower adoption lags servers by 12 months or extra. Gen5 transition continues to be 2-3 years away and can possible coincide with E3.S and E3.L type issue ramp.

The next graph depicts the cargo progress of PC, server, and storage/boot PCIe NVMe SSDs from 2021 to 2024.

The Rise of 5G/AI/IoT/Edge Computing: Thermal Issues

With information shifting from centralized (information facilities or cloud storage) to distributed (edge storage), it’s not unusual for linked units and methods to be put in or deployed in unpredictable environments the place temperature shifts are excessive, vibrations/shocks are thought of a part of regular operations, and different tough working situations are half and parcel of each day use.

Amidst these difficult situations the place giant quantities of information are consistently being saved, accessed, and processed, can right now’s information storage units deal with such rigorous working environments whereas sustaining excessive reliability, excessive endurance, and sustained efficiency?

WE BUILD WITH YOU: ATP ODT+SI+ Thermal Options and Methods

As PCIe Gen 4 SSDs proceed to ramp up in industrial purposes and with the rising adoption of AI and edge computing enabled by 5G applied sciences, SSDs ought to ship not solely greater efficiency and capacities, but in addition efficient thermal options for methods which have restricted airflow and are deployed in harsh environments.

For ATP Electronics, an important problem is the best way to ship prime quality SSDs to satisfy the rising calls for of AI, edge computing, and different 5G-powered purposes.

Sign Integrity Simulation from Design Stage

3D NAND know-how is shifting from 64 to 176 or 232+ layers. PCIe clock velocity has tripled from 533 MT/s to 1.6 GT/s. With varied purposes benefiting from the developments in 3D NAND structure and elevated switch charges, enormous quantities of information are communicated and saved each day into reminiscence units shaped with a number of NAND chips. Engineers have to pay eager consideration to the sign interference between chips and information paths.

Now greater than ever, sustaining sign integrity with the information path design on the printed circuit board (PCB) is vital. By optimizing every sign hint on the printed circuit board of higher-capacity storage units, higher sign integrity might be noticed with its sampling time by SI simulation outcomes.  A greater design of various type components might be supplied readily.

Cadence and Ansys Simulation for Warmth Setting Adaptivity

ATP makes use of the Cadence and Ansys Thermal Simulation to hurry up the design course of. These are pure {hardware} simulation checks primarily based on full-speed operation (worst-case state of affairs). By performing component-level simulation of IR drop evaluation (sign integrity) and thermal simulation throughout product design part, warmth distribution in every PCB layer is proven, indicating which space(s) have the potential danger of accumulation. Primarily based on the outcomes, changes are then made within the format circuits, wire thickness, the amount and/or place of through-holes, and different variables in order that even when SSD temperature is elevated, a ample cooling system could be carried out to assist distribute the warmth. The system’s mechanical design is then checked to find out if housing must be personalized or adjusted.

A pattern case illustrated right here is for U.2 SSDs. By utilizing a special mechanical design, we decreased the temperature by 7 levels Celsius to chill the system and keep greater sustainable efficiency.

Mixed with the Thermal Throttling mechanism, we sustained the SSD’s efficiency dive by optimizing efficiency with balanced environmental temperature.

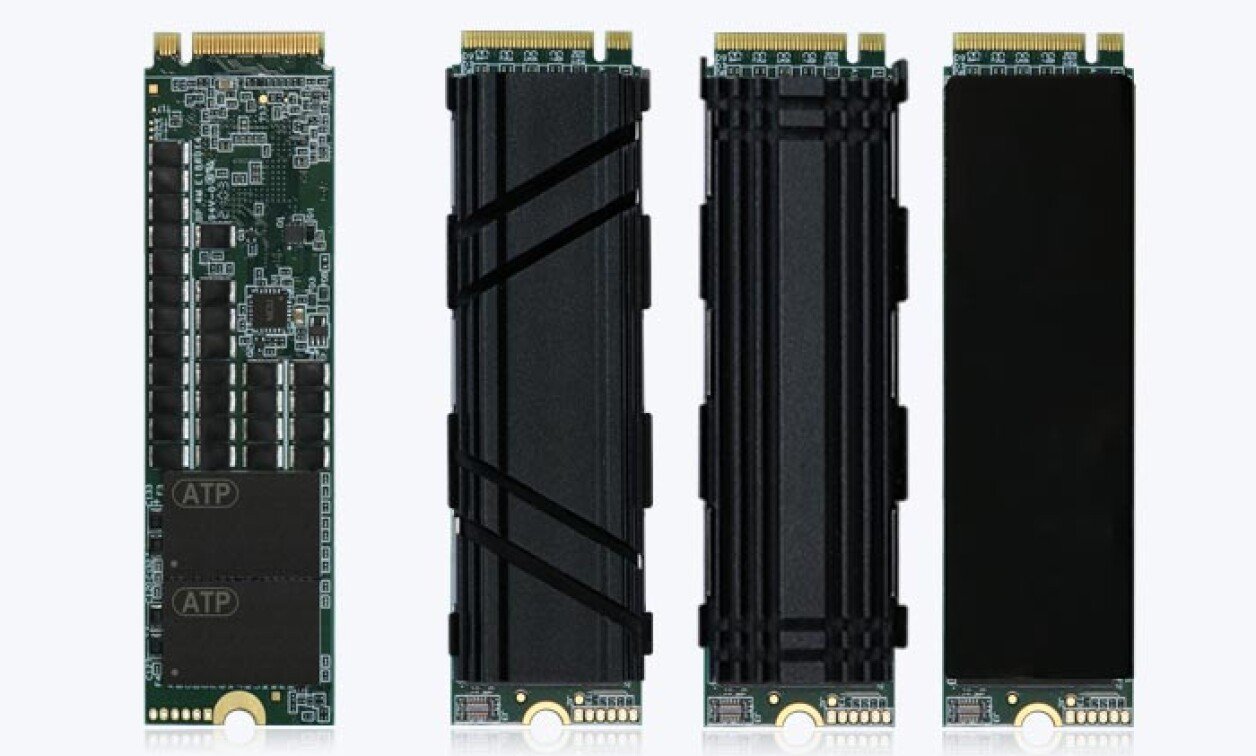

Heatsink Choices for Efficient Warmth Dissipation

The next graphs present how an 8 mm heatsink design on an NVMe M.2 2280 SSD helped decrease temperature, versus PCB solely.

Conclusion

As AI/5G/IoT/Edge computing continues to develop, purposes powered or pushed by these applied sciences require greater efficiency and capability, in addition to dependable operation in excessive or harsh temperatures. PCIe Gen 4 is beginning to ramp up for use more and more in these demanding purposes as information strikes from centralized areas to the sting, thus delivering decrease latency and better bandwidth. To make sure sustainable efficiency, it is very important have a Thermal Plan for PCIe Gen 4 SSDs, particularly if they’re put in in methods with restricted airflow and are deployed in harsh environments.

Primarily based on a presentation at Flash Reminiscence Summit 2023

Chris Lien is the BU Director at ATP Electronics Inc, the place he leads product planning and advertising and marketing for NAND-based storage units within the automotive and industrial sectors. He has over 20 years of expertise within the reminiscence trade and is credited with holding 5 patents from his prior profession endeavors. Chris is thought for his experience in long-term product technique and constructing profitable OEM buyer relationships.
