Methods to Exchange a Motherboard

This information will clarify how one can exchange the motherboard inside your pc, whether or not you’re upgrading or you’ll want to swap out a broken or damaged board.

There’s some prep concerned, as it’s essential to take away the outdated {hardware} parts and your outdated motherboard earlier than putting in a brand new one.

What to Do Earlier than Putting in a New Motherboard

There are some steps it is best to comply with earlier than putting in a brand new motherboard. In fact, you probably have a model new case that is empty, you might skip this part.

Here is what it’s essential to do to arrange for the brand new motherboard set up:

• Disconnect all peripherals, together with the mouse, keyboard, Ethernet cable, exterior onerous drives, printers, and extra.
• Be sure that the pc is off, and the ability provide change is ready to 0. Then, unplug the ability provide cable.
• Lay the chassis or case fastidiously on its facet with the best facet dealing with up (proper facet whereas dealing with the rear, left facet whereas dealing with the entrance).
• Loosen and take away the thumbscrews in the back of the case, after which slide off and elevate the facet panel.
• Disconnect all inner {hardware}, together with the graphics card, inner onerous drives, RAM, system followers, CPU fan, and CPU. You probably have a water cooler or an aftermarket AIO, you’ll need to uninstall that first. Make sure you place all {hardware} someplace secure and static-free.
• Unplug the ability provide cables.
• Utilizing a computer-safe screwdriver, take away the screws securing the motherboard to the case and the stand-offs beneath.
• Rigorously take away the outdated motherboard from the case and make sure to place it someplace secure.

After following the solutions above, you ought to be taking a look at an empty pc case. Another is to put in your motherboard and {hardware} in a model new case, which might imply you do not have to take away something.

What {Hardware} Ought to Be Changed?

Relying on the outdated motherboard and the way it compares to the brand new board you can be putting in, you might be able to maintain your outdated {hardware} and reuse it. Generally, nevertheless, {hardware} is incompatible, which might imply you’ll want to exchange it.

Listed here are a few of the {hardware} concerns it is best to make earlier than swapping a motherboard:

• Is the CPU socket the identical? If the reply isn’t any, or it’s a unique model fully (AMD vs. Intel), then you’ll need a brand new CPU.
• What are the RAM specs of the brand new board? DDR3 RAM, for instance, isn’t appropriate with DDR4 rated slots.
• What are the ability provide necessities of all related {hardware}? In the event you’re upgrading to a model new GPU, you might want to put in a extra highly effective energy provide. However, if the ability provide related to your outdated motherboard is sort of a couple of years outdated, it is best to in all probability take into consideration upgrading anyway.

Arduous drives occupy a center floor, as they’re universally appropriate usually, particularly if they’re SATA drives. Nevertheless, you may contemplate upgrading if you would like a solid-state drive or a drive with sooner efficiency.

Methods to Exchange the Motherboard

Assuming you’ve already emptied your case by uninstalling the outdated motherboard and {hardware} until you’re utilizing a brand new case, it’s time to put in your new tools.

Right here’s how one can set up your new motherboard:

1. Make sure the case is open, which requires loosening and eradicating the facet panel thumbscrews and taking off the facet panel.




2. If the case is new, take away the whole lot inside, together with free cables, plastic, and so forth. If the case is outdated, transfer any outdated cords out of the way in which, together with energy provide cables. Ideally, the whole lot needs to be disconnected and uninstalled from the case.




3. Paying attention to the motherboard measurement, set up your stand-offs in any respect 4 corners. You must also set up stand-offs evenly all through the center, the place the motherboard can be seated. Set up sufficient stand-offs to droop the motherboard and maintain it from touching the perimeters of the case.




4. Set up the CPU by securing it within the socket and locking the clasp.




5. Relying on the dimensions of your CPU fan or water cooling system, you might contemplate putting in that after you put in your RAM. Observe the instructions for the cooler and set up it utilizing the included brackets. Double-check to make sure you eliminated all plastic out of your parts, together with the underside of your CPU fan. Additionally, unfold the correct amount of thermal paste between the CPU and the fan.




6. Set up your RAM modules by urgent firmly at each ends till the clasps lock into place.




7. Insert your motherboard’s I/O protect into place in the back of the case.

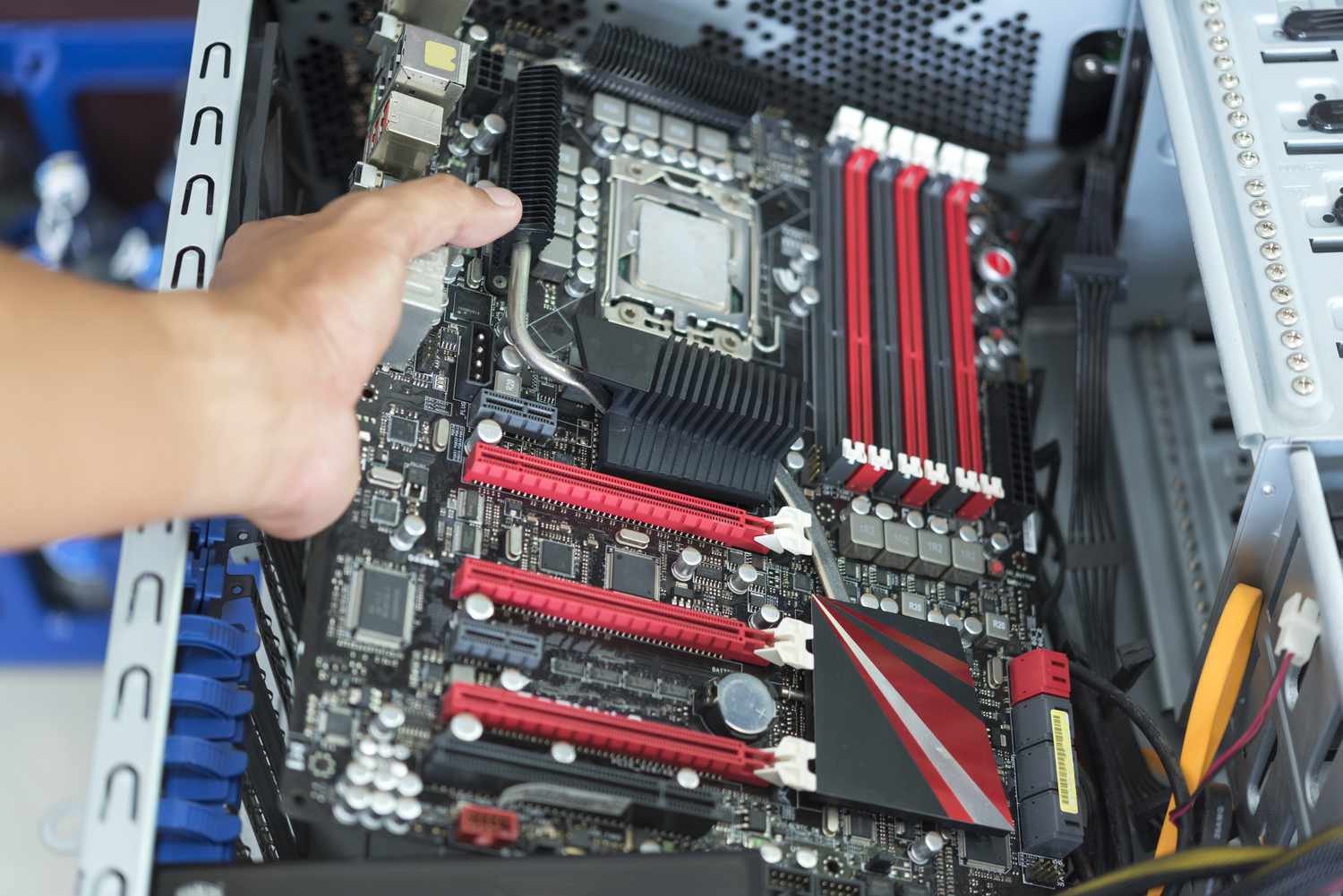

8. Rigorously slide your motherboard into place contained in the chassis, making certain the again panel is appropriately lined up, and the screw holes are additionally lined up with the stand-offs beneath.




9. Utilizing a computer-safe screwdriver, safe the motherboard to the stand-offs with the suitable screws.




10. Set up the ability provide both on the high or backside of the case and alter the cables so there’s room to achieve the motherboard and your different {hardware}. Don’t overlook to safe the ability provide utilizing screws!




11. Plugin the ability connectors, together with the 24-pin and the 8-pin connectors.




12. Wanting down from above, set up the case controls to the suitable headers on the underside proper of the motherboard. The cables differ from case to case, however a very powerful is the Energy Change and the Reset Change, in addition to the LED indicators.




13. Set up any further {hardware} you’ve on the prepared, together with onerous drives, enlargement playing cards, graphics playing cards, and so forth.




14. Set up your case followers, and thoroughly run the cables to a appropriate fan header on the motherboard.




Activate the pc and benefit from the fruits of your labor! If the pc doesn’t energy on, or it powers on however doesn’t POST, you’ll need to do some troubleshooting to see the place you went flawed.

Can I Swap Motherboards With out Reinstalling Home windows?

The Home windows working system is saved on a tough drive, so swapping out motherboards or putting in a brand new one ought to have virtually no impact in your Home windows expertise. Once you first boot up Home windows, after putting in the brand new motherboard, you could have to put in associated software program drivers, however that course of mustn’t have an effect on your present set up, together with your knowledge and purposes.

It’s best to be capable of take away the onerous drive out of your outdated pc and plug it proper into your new motherboard. When your entire {hardware} is put in, and also you’re prepared to start out Home windows, it ought to boot similar to it did in your outdated pc. The exception is that if there’s a {hardware} failure or downside together with your new tools. In the event you put in the {hardware} incorrectly or there’s a failure, the pc could not boot.

Can You Simply Exchange a Motherboard?

Sure and no. The reply is a bit more sophisticated as a result of it is determined by what {hardware} was related to your outdated motherboard. PCIe enlargement playing cards and onerous drives are virtually all the time universally appropriate. Nevertheless, there are several types of RAM, CPUs, and generally even energy provides.

What meaning is if you disconnect and uninstall your outdated motherboard, a few of the {hardware} you’ve put in might not be appropriate together with your new motherboard. If that’s the case, you’ll additionally want to exchange a few of the different {hardware}—specifically, your RAM or CPU.

For instance, you can not simply set up an AMD CPU in a motherboard with an Intel socket. They’re totally different sizes and configurations, and the chipsets on the board usually are not appropriate.

If your entire outdated {hardware} is appropriate together with your new motherboard, then sure, you are able to do a 1:1 swap. As a rule, it is best to plan to purchase and set up new {hardware} along with your motherboard.
