Intel Arc A580 is lastly available on the market. This graphics card was initially introduced in 2022 and deliberate to go on sale in early 2023, however has been delayed till now. Simply when everybody speculated that it might need been cancelled, it lastly met us. Because the final seat of the primary era of Intel Ruixuan, what’s its total efficiency? Let’s discover it collectively~

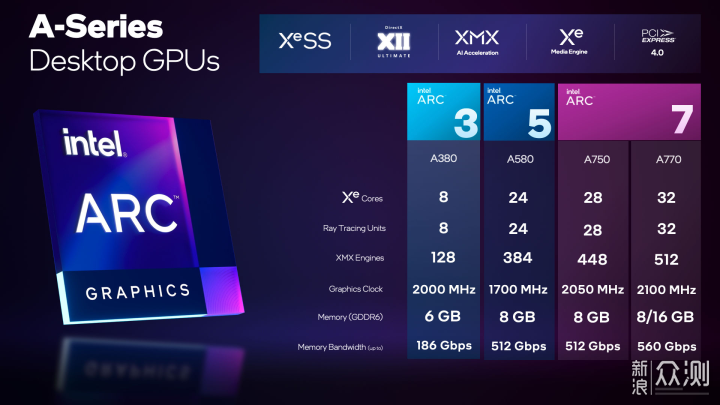

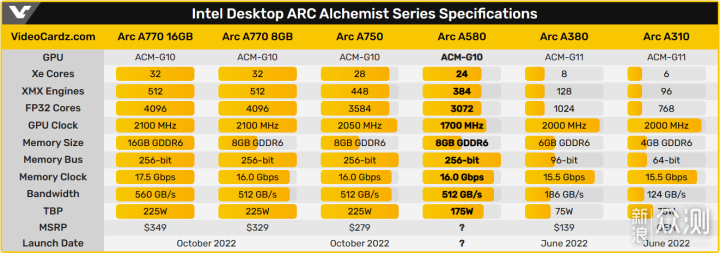

Intel Arc A580 makes use of the identical ACM-G10 GPU of the Arc 7 collection, TSMC 6nm course of, 24 cores, 384 EUs and 3072 ALUs. The core dimension is 3 times that of the A380. In contrast with the A750, the A580 has decreased the core dimension by about 15%. There’s additionally one other downgrade, which is the second stage cache. The A580 has 8MB lower than the A750, and the discount ratio is about 33%. As well as, they’re very resemblance. Nevertheless, the preset frequency of the A580 is comparatively low, solely 1700MHz, which is the bottom preset frequency among the many first-generation Ruixuan fashions. It needs to be intentionally lowered to widen the hole between the A750 and the A750. The video reminiscence is 8GB GDDR6 with a width of 256bit and a bandwidth of as much as 512 GB/s. The video reminiscence specs are in step with the Arc 7 collection. Intel has all the time been very beneficiant when it comes to video reminiscence.

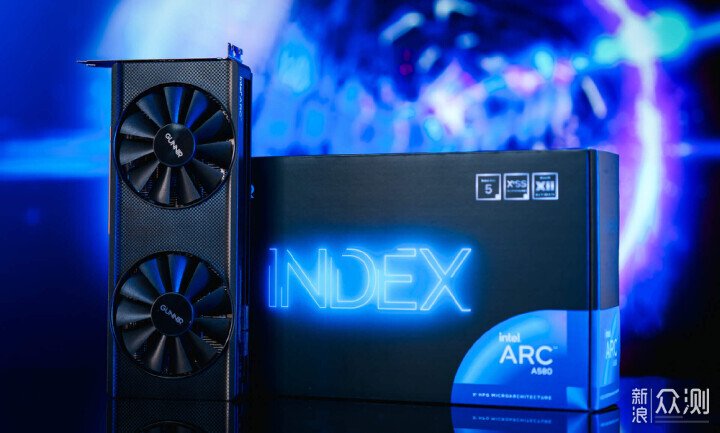

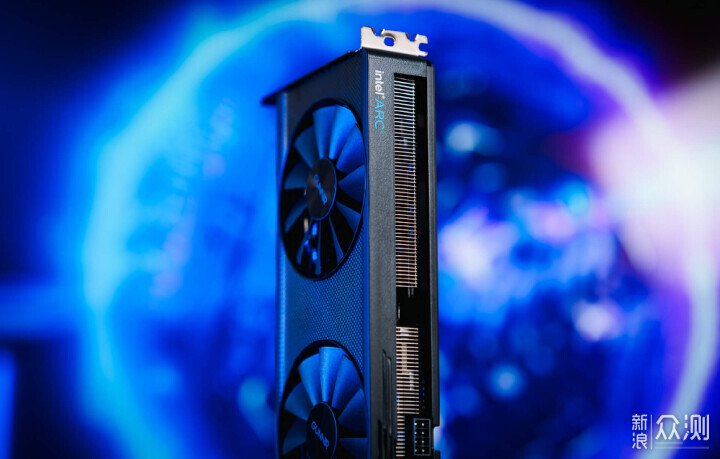

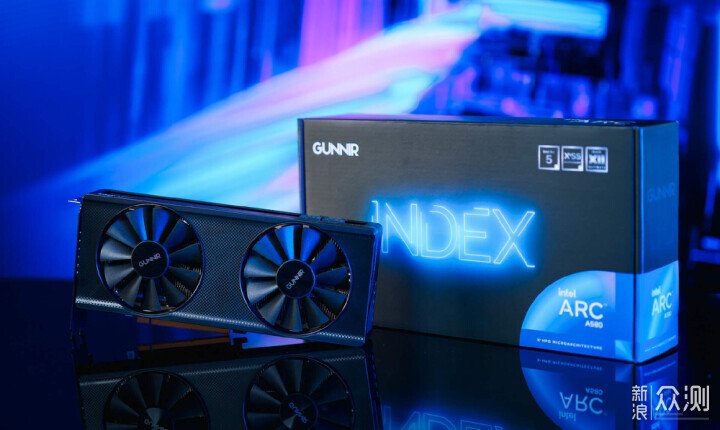

The graphics card used on this check is from LanjiArc A580 Index. Lanji at present has a complete of three collection, specifically Index collection, Photon collection and Flux collection. Index is positioned as entry-level and cost-effective, so the looks design shall be extra conservative than the opposite two collection.
Though there aren’t any cool lights, I feel the looks of the Index collection remains to be very distinctive, and the easy and difficult model is exclusive. The curved onerous air information is roofed with plaid ornament, which has an important texture and doesn’t have a budget feeling of some beggar’s version graphics playing cards.

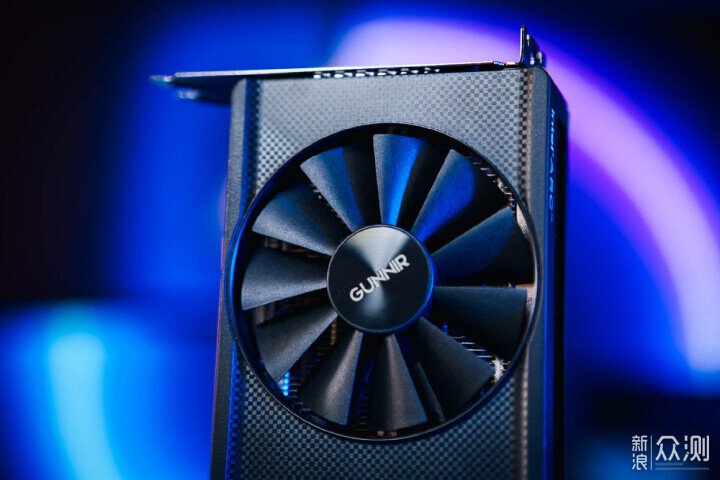

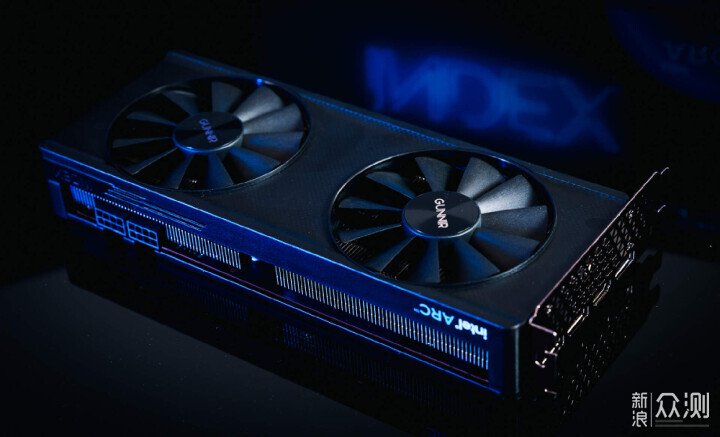

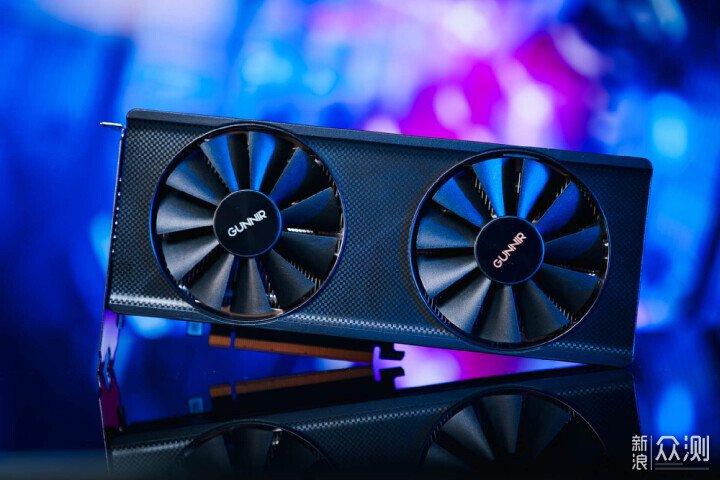

Two 9CM straight-leaf followers with a complete of 11 fan blades, each of that are designed for air consumption. The official particulars web page talked about that Lanji’s Arc A580 Index makes use of Shin-Etsu 7921 silicone grease and a 6+4 part energy provide design. So I gained’t dismantle it this time. From the aspect of the graphics card, you may see that the interior fins are penetrated by three 6mm warmth pipes.
The air information extends all the way in which to the rear and is linked to the again panel. The product consistency may be very excessive, so the air popping out of your entire card is focused on the edges of the graphics card.

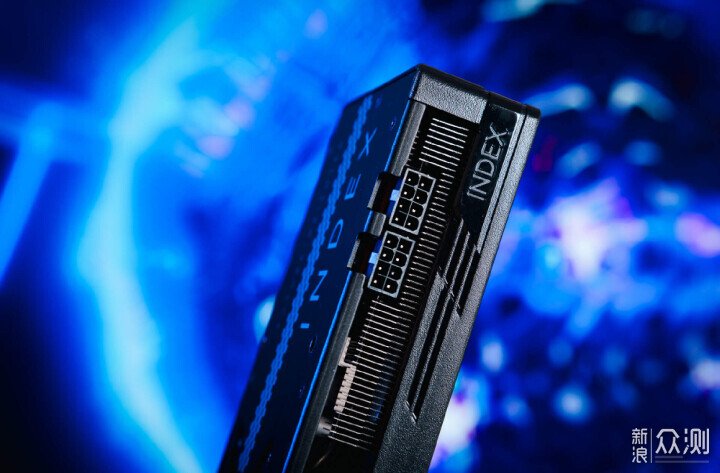

What surprises me is that this graphics card makes use of twin 8-pin energy provide. You will need to know that the general public model A750 solely has an 8+6 pin design.
The again panel is product of steel, which may help in warmth dissipation to a sure extent.

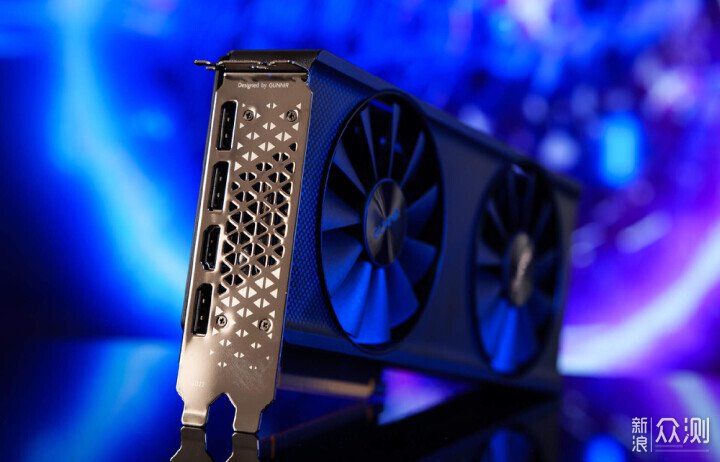

The aspect of the graphics card makes use of a double-slot nickel-plated chrome steel baffle, which is proof against oxidation and fatigue. The graphics card offers 3 DP 2.0 interfaces and 1 HDMI 2.0 interface.
When it comes to parameters, Intel Arc A580 Index makes use of the general public model resolution, with a default frequency of 1700MHz and a most turbo frequency of 2400MHz. Nevertheless, because of the energy consumption restrict of 134W, the turbo frequency will usually be maintained between 2100~2250MHz. At the moment, The TimeSpy graphics card rating is 10330. I personally really feel that the ability consumption and frequency settings are a bit conservative.

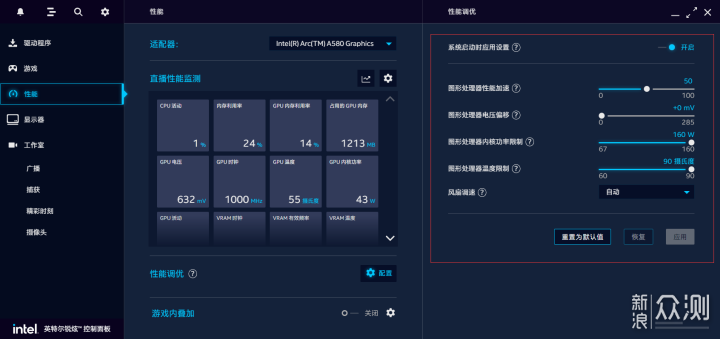

Due to this fact, I personally recommend that after putting in the motive force, you may activate overclocking within the “Efficiency-Efficiency Tuning” operate. For particular parameters, please seek advice from my settings. There is no such thing as a want so as to add voltage, the ability and temperature limits are straight reached, and the efficiency acceleration is about to +50.

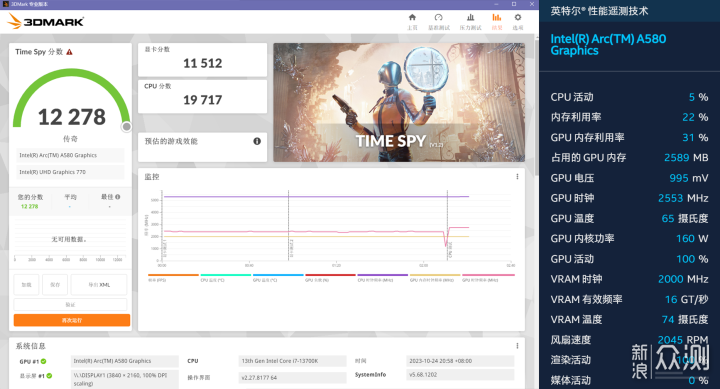

After finishing the overclocking settings, the default frequency of Intel Arc A580 Index has turn into 1850MHz, and the utmost core frequency could be maintained at round 2550MHz. At the moment, the TimeSpy graphics card rating is 11512, and the efficiency is improved by about 11% in comparison with the default settings. Round. Personally, I really feel that the overclocking potential of the A580 may be very nice. If there may be an open-power model sooner or later, the frequency ought to have the ability to be simply pushed larger.
Based on the present pricing of Intel Arc A580 Index, RTX3050 8GB and RX6600 needs to be its most direct rivals at current, however at present we solely have RTX3050 8GB, so this check will use RTX3050 as a reference for horizontal comparability~ To higher examine the true efficiency of the graphics card, the next assessments are all examined with DLSS and XeSS turned off.
The check of “Cyberpunk 2077” took the longest time. There gave the impression to be a bug within the sport settings. It is turned off. The A580 leads the RTX3050 by about 23% in silent mode, and the overclocking acquire is about 10%.

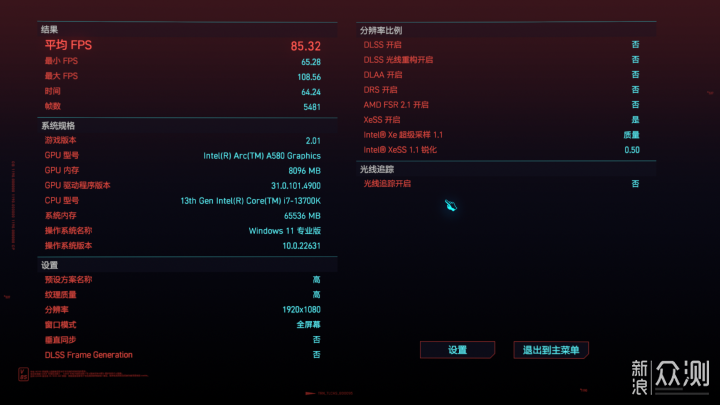

If “Cyberpunk 2077” makes use of XeSS with high quality gear, the body variety of Intel Arc A580 Index on the default frequency is 85.32, which is about 23% larger than that with out XeSS operate turned on.

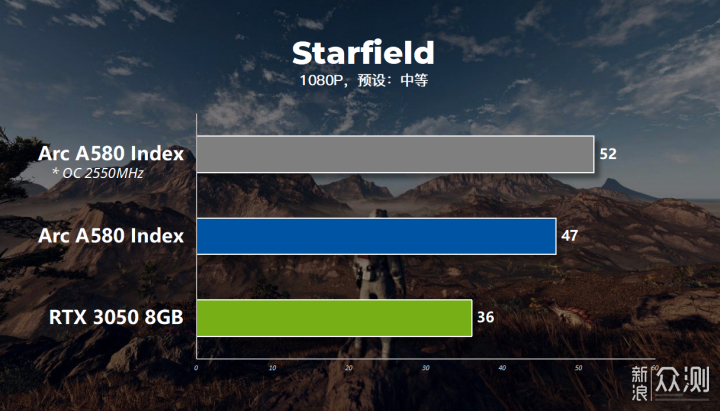

“Starry Sky” assessments the common body charge when strolling from the Star Base to the outside. With out overclocking, the indoor body charge of the A580 is between 55 and 80 frames. When leaving the Star Base and going outside, the body charge will drop to 40. ~60 frames or so. The overclocking efficiency acquire is round 11%.
It’s significantly price mentioning that the A580 was formally launched on October eleventh, and there was a model of the motive force obtainable on that day. Once I examined “Starry Sky” at the moment, the variety of frames in 1080P medium high quality was solely about 15. This variety of frames is clearly excessive. It is an issue. So I intentionally waited till these two days, after Intel launched the brand new driver, and retested it once more earlier than I acquired the above outcomes. I’ve to say that Intel fastened the issue in a short time.

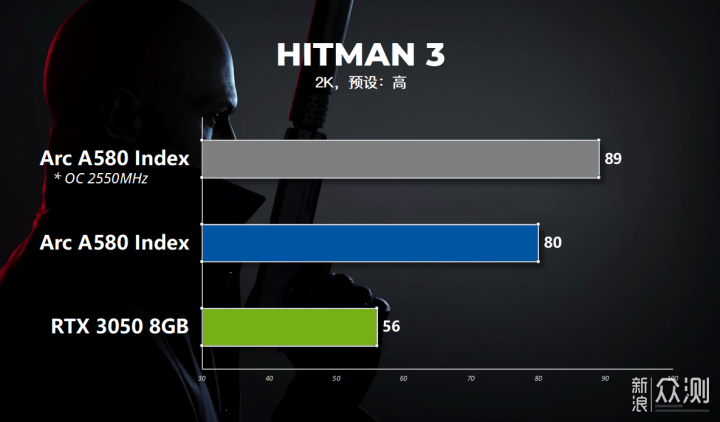

“Hitman 3” is essentially the most eye-catching check of the A580. With 2K decision and excessive picture high quality, the A580 leads the RTX3050 by about 43% in silent mode, and the overclocking acquire is about 11%.
In “Horizon 5”, the A580’s lead is comparatively small. With 2K decision and excessive picture high quality, the A580 leads the RTX3050 by about 28% in silent mode. On this hyperlink, the overclocking acquire can also be the smallest, at about 6%.
Total, the A580 has appreciable benefits over the RTX3050. I feel the efficiency may be very near the RTX3060, particularly after overclocking. It’s price mentioning that the efficiency distinction between the A580 and the A750 on the default frequency is just about 15%. After overclocking, I estimate that the efficiency distinction between the A580 and the A750 on the default frequency is just about 5%.
In spite of everything, Intel Ruixuan graphics card has simply began, and the help of {many professional} software program has not caught up but. If it’s good to cope with Blender, 3Dmax, Maya, Solidworks, and so forth., the A580 just isn’t appropriate for you.
But when your productiveness wants are to course of footage or edit movies, then the A580 shall be a really cost-effective graphics card. Particularly when it comes to video, Intel not solely helps extra onerous decoding specs, however the high quality of onerous coding can also be the very best within the Home windows camp. For instance, the H.265 (HAEC) 10bit 4:2:2 specification that each one new cameras now help, Intel added help for it as early because the eleventh era Core, whereas AN and AN nonetheless don’t help it but.

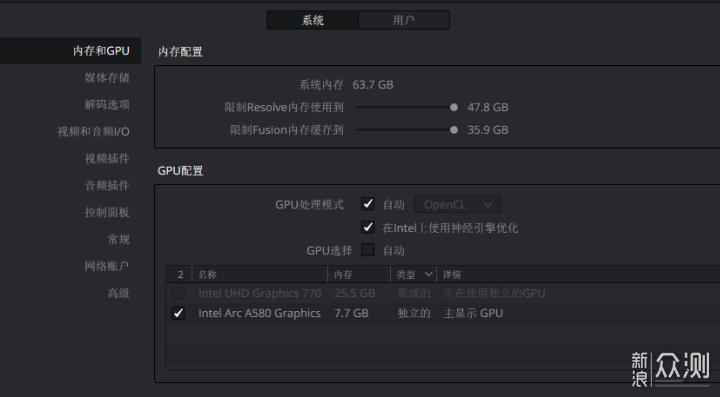

Along with codec help, {hardware} acceleration can also be an important a part of video modifying. DaVinci is extremely beneficial right here. DaVinci is at present one of the best software program that helps OpenCL. On DaVinci, the acceleration effectivity of OpenCL just isn’t inferior to that of CUDA. Furthermore, for Da Vinci’s {hardware} acceleration, video reminiscence is extra necessary than GPU efficiency.

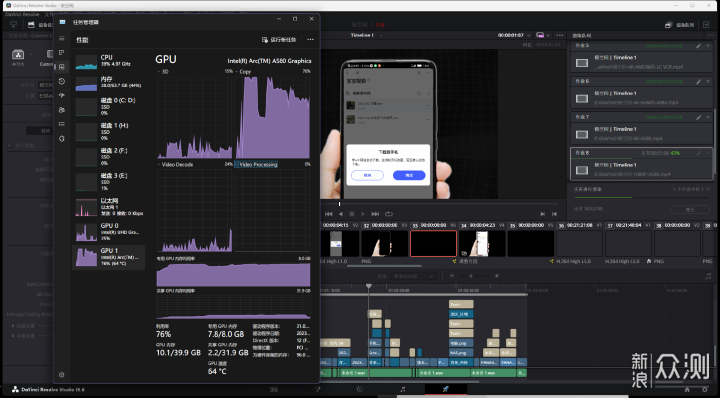

When utilizing graphics card acceleration to render particular results, it is extremely demanding on video reminiscence specs, particularly video reminiscence capability. Mates who’ve used DaVinci should have skilled video reminiscence explosion. In DaVinci, the GPU efficiency of consumer-grade graphics playing cards is definitely overflowing in comparison with its video reminiscence capability. This is the reason the video reminiscence capability {of professional} graphics playing cards is mostly very massive. When the A580 is rendering 4K video particular results, the GPU occupancy charge is usually round 85%, and it’s not often full. The video reminiscence utilization will stay between 6.5~7.8GB. It may be seen that the video reminiscence specs are the important thing when rendering particular results. bottleneck.

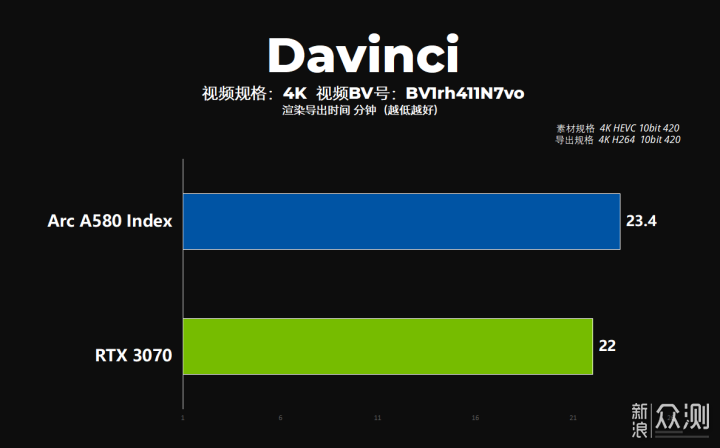

I discovered an engineering materials from my earlier video. This video has extra particular results (the BV quantity is within the image above, pals can have a look), and in contrast it with the RTX3070 and A580 I’ve available. For the reason that reminiscence specs of the 2 are very shut, the RTX3070 has nearly no benefit over the A580 on this facet. Although CUDA has larger acceleration effectivity, it’s severely restricted by the weak reminiscence specs. Due to this fact, in case your principal productiveness software is DaVinci, I feel A580 or different Arc graphics playing cards are nonetheless price a attempt.

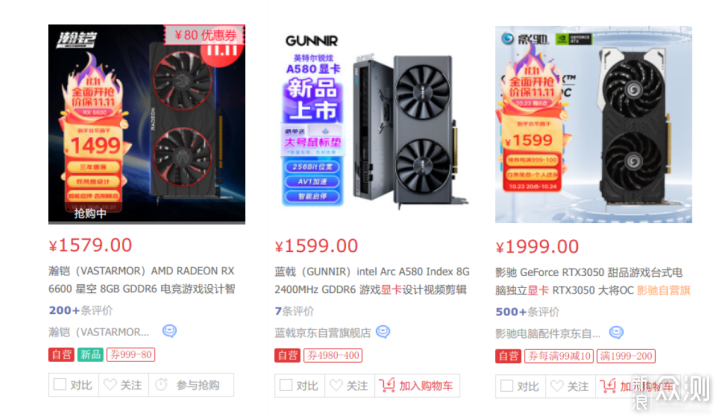

As a result of it’s new to the market, the present pricing of the Intel Arc A580 is nearly the identical as that of the A750. Nevertheless, contemplating that the efficiency hole between the 2 is certainly not massive, it’s certainly tough to widen the hole in pricing. This can be the explanation for its repeated delays. .
Mates who should not in a rush to purchase it may possibly await it to drop? I feel will probably be a really cost-effective selection when it’s round 1,300.
