As we speak’s overview will cowl two of the tallest m.2 heatsinks available on the market, Thermalright’s HR-09 and HR-09 Professional. At 48mm and 74mm tall, they’re actually dominating over the competitors’s heatsinks that are normally 20mm or much less in peak.
The necessity to preserve trendy Gen 5 SSDs cool has resulted in a marketplace for m.2 warmth sinks, and there is all kinds of selections to contemplate. Warmth sinks of sizes giant and small, in quite a lot of kind components and even with energetic cooling, are actually accessible to maintain your SSD cool. We’re just lately reviewed the HR-10 Professional, one other m.2 heatsink from Thermalright, which options an energetic fan.
When NVMe warmth sinks first hit the market, most of the items included with sure motherboards had been gimmicks and truly resulted in increased SSD temperatures. Cooling m.2 drives wasn’t actually a priority again then, however as we speak’s PCI-e Gen 5 SSDs aren’t in a position to maintain their peak efficiency with out some type of cooling. The controller present in most PCI-e 5 SSDs presently available on the market is Phison’s E26, which has a TJ Max (most temperature) of 125C – a lot hotter than earlier era merchandise.
Thermalright is well-known within the cooling market, the Peerless Murderer is a favourite of Wccftech readers. Their just lately launched Phantom Spirit 120 is for my part the perfect air cooler presently available on the market – providing a mixture of quiet noise ranges and high tier efficiency.
Options of the HR-09 and HR-09 Professional m.2 NVMe SSD Heatsink Coolers
Copper heatpipes, vents, and plenty of fins
Each HR-09 and HR-09 Professional make the most of copper heatpipes to switch warmth away out of your SSD. The HR-09 has one heatpipe, the HR-09 Professional has two.

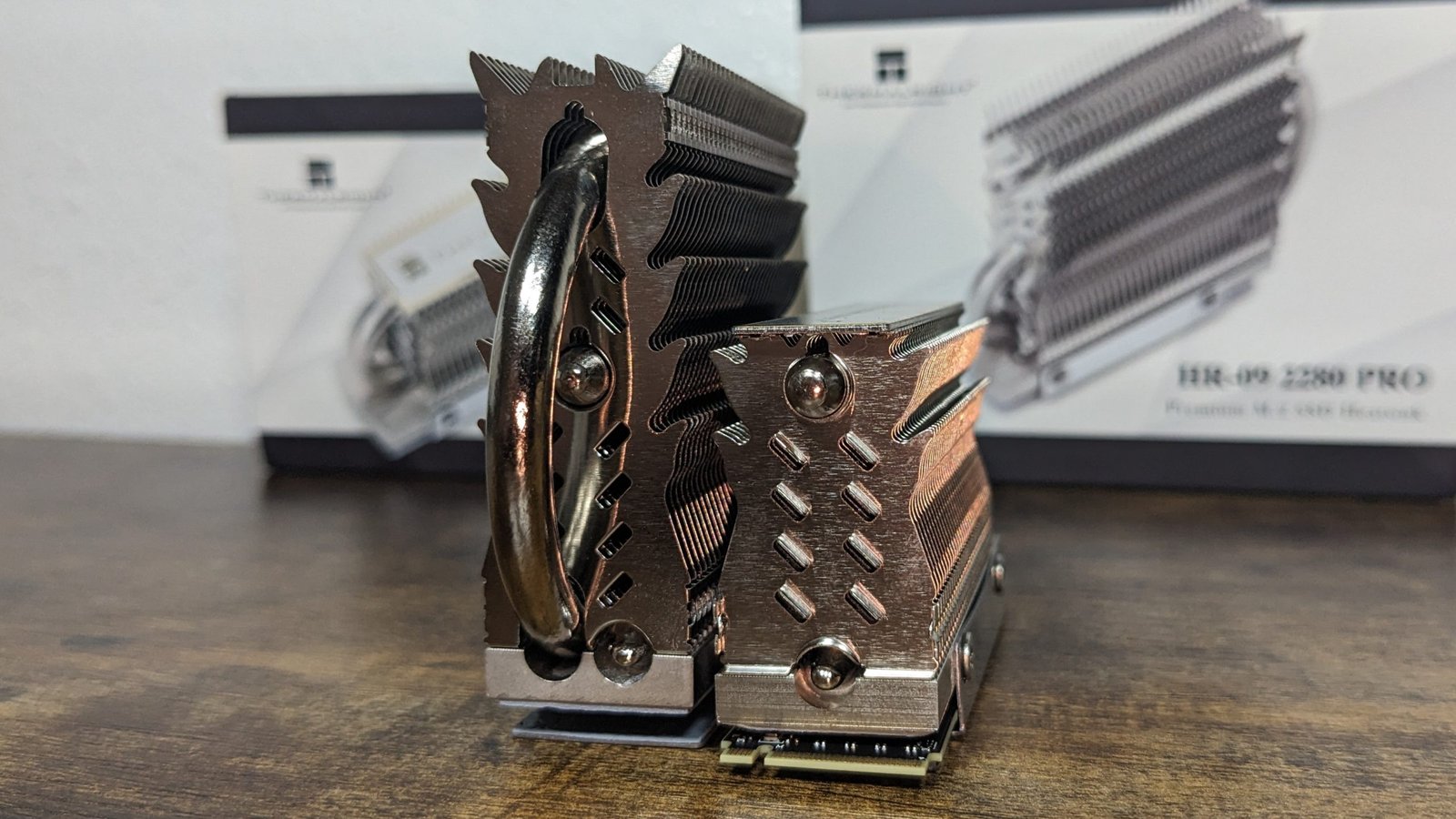

The primary distinction between these items is their peak – the HR-09 Professional is actually a doubled model of the HR-09 with twice the fin space, twice the heatpipes, and (practically) twice the peak. The HR-09 measures 48mm tall, the HR-09 Professional measures 74mm tall.
The opposite distinction between these items is their tops. The HR-09 has an etched metallic high with Thermalright’s branding, the HR-09 Professional’s high is of jagged fins.
The perimeters of every unit have diagonal vents to assist facilitate airflow by means of the fins and heatpipes
Set up, Packaging, and Contents
The HR-09 and HR-09 Professional arrive in a small brown field not a lot bigger than a cellphone, with an outer protecting showcasing the product.
Opening the field reveals the contents, the heatsink is protected by a delicate protecting and molded foam.
Thermalright additionally features a small screwdriver, which is beneath the molded foam.
To begin set up you will want to make use of the included screwdriver to take away the screws from the perimeters of the unit, permitting entry to the thermal pads. A small piece of froth protects the thermal pads throughout transport, which may be discarded after set up.
Take away the peel from the pads, and place your SSD within the base of the unit. Place the heatsink within the bottom, and safe it with the included screws.
The final step is to attach the SSD to the m.2 slot, and safe it with a screw.
If you happen to’re utilizing a big air cooler, you won’t have the ability to set up this heatsink in a m.2 slot subsequent to your CPU – you will want to make use of one of many slots decrease on the motherboard as a substitute. This would possibly not current an issue with liquid coolers, however air cooler compatibility might range.
In my final overview of Thermalright’s HR-10 Professional, some readers expressed issues that these items would possibly current compatibility points with GPUs. When you might need compatibility points with sure air coolers, a GPU will not current an issue. Pictured under is Thermalright’s HR-09 with a prototype Intel DG1 dGPU put in subsequent to it.
Thermal and Benchmark Efficiency Comparability
To check the efficiency of the heatsink’s cooling skill, I’ve run a customized IOMeter script which takes half-hour to finish testing. This script is designed to trigger the drive, and particularly it’s controller, to create as a lot warmth as doable. You would possibly contemplate it a “Furmark” of SSD testing, it’s an influence virus designed for the aim of testing NVMe cooling.
Each the HR-09 and HR-09 Professional do not simply dominate over the competitors in measurement – additionally they dominate in efficiency! The HR-09 Professional’s is amongst the perfect outcomes I’ve seen so far, operating at a pleasant and funky 52 levels C. The essential HR-09 is a bit hotter at 67C, however that is nonetheless higher than over half of the heatsinks I’ve examined so far!
Each HR-09 and HR-09 Professional heatsinks are in a position to run the TeamGroup Z540 SSD at it is peak efficiency of 4900 IOPs on this stress take a look at. As you’ll be able to see from the chart above, lowered temperatures don’t all the time translate into increased benchmark efficiency – however it is going to enhance it’s lifespan and longevity. A SSD operating at or close to peak temperatures (also called TJunction Max or TJ Max) with have a decrease lifespan in comparison with one operating at a extra affordable temperature.
Worth Comparability
For coolers like Thermalright’s HR-09 and HR-09 Professional that are in a position to run a SSD unthrottled, a good way to take a look at it’s worth is to check the thermal enchancment for each greenback spent – how nicely does the heatsink preserve a Gen 5 SSD Cool for the sum of money spent? The HR-09 and HR-09 Professional ship a fantastic mixture of efficiency and worth, delivering amongst the perfect efficiency per greenback on this chart.
However in reality, this chart is a bit misleading – the HR-09 Professional’s ranking relies on it is MSRP of $17 USD. However as with all Thermalright merchandise, the HR-09 Professional is mostly accessible for lower than it is rated MSRP. As of this writing on November 4, 2023 it is accessible on Amazon for less than $12.90 for the black model and $10.59 for the silver model. If I had been to evaluate it is worth by these metrics, the perf/$ would enhance to 2.67 or increased!
Conclusion
Thermalright’s HR-09 and HR-09 Professional are a number of the greatest options presently accessible available on the market, offering sturdy cooling efficiency that can permit a PCI-e Gen 5 SSD to take care of excessive speeds and run at decrease temperatures, whereas rising its longevity and lifespan.
If you happen to’re an expert or different person with storage intensive workloads, a heatsink of some form is required to take care of peak efficiency with trendy SSDs. If you happen to’re concerned about Thermalright’s HR-09 or HR-09 Professional, they’ve MSRPs of $11.99 and $16.99 however are incessantly accessible for much less. As of this writing on November 4, 2023 they’re accessible for $10.59 on Amazon.com
