Just lately we had the chance to take a look at an Intel Z790-based motherboard from Maxsun, a producer not well-known to the West, and preferred what the Terminator Z790M D5 Wi-Fi needed to supply. Immediately, we have now the corporate’s iCraft B760M Wi-Fi on the take a look at bench. For $199.99, you get a well-provisioned motherboard with three M.2 sockets, a 2.5Gbps port, built-in Wi-Fi 6E, sufficient energy supply for flagship-class processors, and a good-looking black and silver design. The key distinction between them is that the B760 platform permits overclocking of the reminiscence however not the processor. We’ll have a look at the options of this MicroATX board and see the way it fares in comparison with the manufacturers we’re extra accustomed to.
Board Design, CPU, and Reminiscence

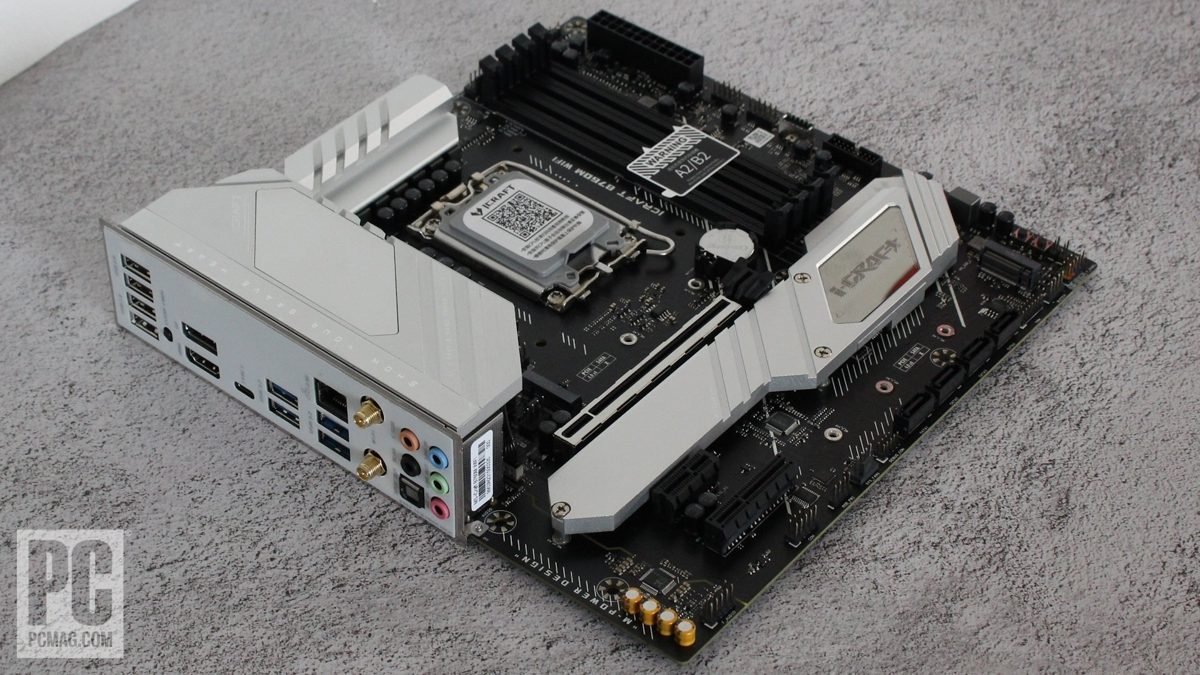

The iCraft B760M Wi-Fi sports activities a multi-layer PCB with black slots and sockets, together with silver heatsinks protecting the VRM, an M.2 socket, and the chipset. The contrasting colours are nonetheless impartial and, helped by the built-in RGB lights, ought to slot in with most construct themes. Not like the Terminator Z790M D5, this board’s VRM heatsinks do not include a fan, however since you’ll be able to’t overclock on the platform what’s current cools the MOSFETs under with out concern. When you want greater than 4 SATA ports, you will must put an add-in card in one of many PCI Specific slots, however the iCraft is in any other case simply as full-featured as its competitors.
(Credit score: Joe Shields)The motherboard helps Intel’s twelfth and thirteenth Era LGA1700 processors as much as and together with the Core i9-13900K/KS. The dozen 60A MOSFETs devoted to the processor dealt with our CPU with no points throughout testing. The passive heatsinks saved the VRMs under working effectively inside spec, although they did are likely to get heat with sustained multithreaded hundreds. When you’re pushing a high-end processor, make sure your chassis has good airflow and your CPU good cooling, as this board (just like the Terminator) lets the processor run on the greater 253W energy restrict as a substitute of leaping again to 125W.
Reminiscence assist for the iCraft B760M Wi-Fi peaks at DDR5-6800+ (OC), which is about common for the platform and value level and is definitely previous the value/efficiency candy spot. A lot past DDR5-6000 or DDR5-6400, you are spending large bucks for tiny efficiency beneficial properties anyway. When you want loads of RAM, the board accommodates as much as 192GB, which ought to fulfill even probably the most hardcore dwelling customers.
(Credit score: Joe Shields)Our DDR5-5600 and DDR5-6000 kits have been secure by setting the interior XMP profile, so all is effectively round these speeds. Because the iCraft does not record assist over DDR5-6800, we did not attempt the quickest package we had readily available (DDR5-7200). There are many reminiscence bits to regulate within the BIOS for these in search of to maximise their efficiency.
Format and Inside Connectors
Beginning within the motherboard’s prime left nook, we spy the EPS connectors to energy the processor. On this case, there are two: an 8-pin (required) and optionally available 4-pin. The silver VRM heatsinks have a good quantity of mass and sufficient floor space to maintain the VRMs working effectively inside specification. Atop the left VRM heatsink is an infinity-mirror-like RGB ingredient that exhibits off the Maxsun branding. Simply beneath that, on the again of the board, are a number of extra RGB LEDs that produce a pleasant glow. The board’s a number of RGBs will actually gentle up your chassis.
Transferring proper, between the highest VRM heatsink and DRAM slots, is the primary 4-pin fan/pump header. Every of the 4 whole headers helps PWM and DC-controlled units. The handbook does not specify their output; I contacted Maxsun and the corporate confirmed all headers output 1A/12W. That is not quite a bit, so watch out to not overload the headers.
Persevering with on, we encounter the 4 DRAM slots, every with a single locking mechanism on the prime. Above them is one other 4-pin fan header and at last the RGB headers, on this case two 3-pin ARGB and one 4-pin RGB. Management over built-in RGBs and any lights connected to the headers is dealt with by the MaxsunLED software program. The app seems to be like it should do the job with quite a lot of results, speeds, and brightness management, however we’re unsure what most of its different options are because the model we might obtain for overview wasn’t completely in English.
(Credit score: Joe Shields)Heading down the fitting edge, we spy the 24-pin ATX connector to energy the board. Subsequent are USB headers. From prime to backside, you will notice two USB 2.0 headers, a front-panel USB Kind-C 3.2 Gen 1 (5Gbps) connector, and a 19-pin USB Kind-A 3.2 Gen 1 (5Gbps) header.
Audio, Growth, Storage, and Rear I/O
Within the backside left nook is the audio part, consisting of a Realtek ALC897 codec and 4 yellow capacitors. It is a bare-bones resolution, lacking the audio separation line (for assist with EMI) {that a} overwhelming majority of recent boards have, however many customers will discover it acceptable for each day use.
In the course of the motherboard are three PCI Specific slots and three M.2 sockets. The highest, strengthened PCIe slot is the first location for graphics playing cards; it has probably the most bandwidth, working as much as PCIe 5.0 x16. The smallest slot within the center peaks at PCIe 3.0 x1, whereas the underside open-ended x4 slot runs as much as PCIe 3.0 x4. This structure offers you adequate slots to increase if you want to; simply make sure you are not including high-bandwidth playing cards because you’re restricted to PCI Specific 3.0.
(Credit score: Joe Shields)Simply above the first GPU slot is the primary of three M.2 sockets. All three of those sockets assist as much as 80mm PCIe modules—SATA-based M.2 storage is not going to work—at speeds as much as PCIe 4.0 x4 (64Gbps). You will not discover the most recent and best PCIe 5.0 M.2 sockets on this funds board (or many others, for that matter). 4 SATA ports alongside the underside edge spherical out the storage choices. When you favor to make use of RAID for storage, the board helps RAID 0, 1, 5, and 10 modes solely on the SATA ports.
Alongside the underside fringe of the board are simply a few headers, because the RGBs are on the highest half. Transferring from left to proper are front-panel audio, a COM port, a 4-pin fan header, the 4 vertically mounted SATA ports, TPM, speaker, and front-panel headers.
(Credit score: Joe Shields)The rear of this Maxsun motherboard has a preinstalled I/O plate with grey labels on a white background. The 9 USB ports must be sufficient for many customers; they embrace a speedy USB-C 3.2 Gen 2×2 (20Gbps) port, 4 USB-A 3.2 Gen 1 (5Gbps) ports, and 4 USB 2.0 (480Mbps) ports. There are HDMI and DisplayPort ports for built-in video output subsequent to a handy clear-CMOS button to reset the BIOS. On the networking aspect are a 2.5Gbps Realtek port and Intel Wi-Fi 6E antenna connectors. Final is the audio stack, with 5 analog plugs and the SPDIF. The one factor lacking that I might prefer to see again listed here are some 10Gbps USB ports.
UEFI BIOS and Utilities
The Maxsun BIOS is beneficial sufficient, nevertheless it will not win any awards for seems to be. First, it does not have an Straightforward Mode as we’re used to from different board companions—simply an Superior mode with headings listed throughout the highest. The design combines a black background with a portal/door picture; white textual content with yellow headers makes it straightforward to learn. There are many choices for tweaking (however once more, no CPU overclocking on the B760 platform), however the lack of an Straightforward Mode and a much less refined look put it at an obstacle to the 4 main motherboard makers.
(Credit score: Maxsun)The Fundamental part is extra informative than something, exhibiting BIOS, processor, and RAM info within the left two-thirds with system particulars at proper. The latter embrace CPU and VRM temperature, fan speeds, voltages, and extra.
(Credit score: Maxsun)What Maxsun calls an Superior part is the place to configure your {hardware}. From the CPU to the community, graphics, and USB, you’ll discover it right here. There’s additionally a Energy part that offers with hibernation and the way the system responds to power-off and power-on conditions (not pictured right here).
(Credit score: Maxsun)The Turbo part is the place you will discover all of the efficiency tweaking choices. Right here you’ll be able to set XMP modes for RAM and manually tweak the velocity and timings. Processor choices embrace voltage and frequency changes, offsets, and extra, although you are restricted to the utmost turbo multiplier.
In the end, the BIOS works nice however lacks the maturity of different firmware, at the very least by way of look. The first board companions give their customers extra refined UEFIs. However this should not be a deal-breaker, as you will discover all of the performance you want (minus an Straightforward Mode) to tweak this board to the restrict.
Maxsun does not supply a lot in the way in which of utility software program; all I might discover on the web site was the abovementioned MaxsunLED app, largely not written in English, to regulate appropriate RGB LEDs connected to the built-in headers. I might make out eight LED modes and sliders for velocity and brightness changes, however that is so far as I received. You can even enter a customized colour in hexadecimal or RGB.
(Credit score: Maxsun)Verdict: Expensive However Worthy
The Maxsun iCraft B760M Wi-Fi is a well-rounded choice within the B760 area, although its $199.99 MSRP is a bit greater than most of its rivals’. For the cash, you get a impartial black-and-silver look and a specs record similar to these of the manufacturers we’re extra accustomed to; three M.2 sockets and 4 SATA ports for storage; built-in Wi-Fi 6E and a pair of.5Gbps Ethernet; ample energy supply; and efficiency above and past the Intel specification.
(Credit score: Joe Shields)The least costly various, MSI’s Professional B760M-A Wi-Fi, is just $169.99 however has solely two M.2 sockets, as do the Asus TUF Gaming B760M Plus Wi-Fi ($189.99) and Gigabyte B760M Aorus Elite AX ($174.99). Final however not least, the ASRock B760M PG Sonic ($184.99) is the closest in value to the Maxsun and the one different board on this record with three M.2 sockets. Appears to be like are subjective; of the quintet, solely the Maxsun, ASRock, and Gigabyte have built-in RGB lighting. Of those boards, we in all probability just like the Gigabyte greatest if you will get by with solely two M.2 sockets. If the iCraft was $20 cheaper, we might be singing a unique tune.
