MSI Spatium M570 Professional SSD Assessment: Huge Cooler, Tremendous Efficiency

	MSI Area M570 Professional: 2TB for $329 The MSI Spatium M570 Professional is a PCIe Gen 5 SSD with class-leading efficiency and an built-in cooler that (actually) towers over the competitors.
	Glorious Efficiency Native PCIe Gen 5 Interface Low Latency Nice For Avid gamers	Worth Premium Not Appropriate For PS5

MSI Spatium M570 Professional SSD Specs And Options

Discover The MSI Spacetium M570 Professional SSD PCIe 5 SSD @ Amazon

---

MSI is at the moment providing the Spatium M570 Professional in three capacities – 1TB, 2TB, and 4TB, but it surely’s the 2 largest drives that provide the perfect efficiency. The 1TB mannequin, whereas nonetheless comparatively quick, doesn’t fairly match the height sequential capabilities of the 2TB and 4TB fashions. We’ll be evaluating the 2TB mannequin right here.

As talked about, the MSI Spatium M570 Professional is constructed round a PCIe Gen 5 Phison E26 controller, paired to Micron 232-layer NAND flash reminiscence, and a few LPDDR4 DRAM Cache (with capacities starting from 2GB to 8GB, relying on the dimensions of the drive).

MSI’s specs declare peak reads and writes for the 2TB (and 4TB) Spatium M570 Professional of 12.4GB/s and 11.8GB/s, respectively, which places the drive among the many present PC storage elite. Quicker drives are coming (we previewed one already), however as of this second, the MSI Spatium M570 Professional can grasp with the perfect of them. And like different premiums SSDs out there at present, MSI provides a 5 12 months guarantee and helps all the advance options you’d count on, like TRIM, encryption, and so on.

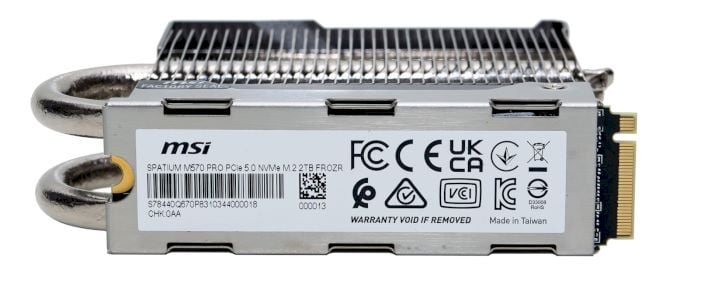

Beneath all that metallic is a typical M.2 2280 gumstick. However contemplating these high-end Phison / Micron-based drives can devour greater than 11 watts underneath load, MSI determined to make sure thermals, and the potential throttling that may come because of extra warmth, wouldn’t be drawback with the Spatium M570 Professional – therefore the huge, tower-type cooler.

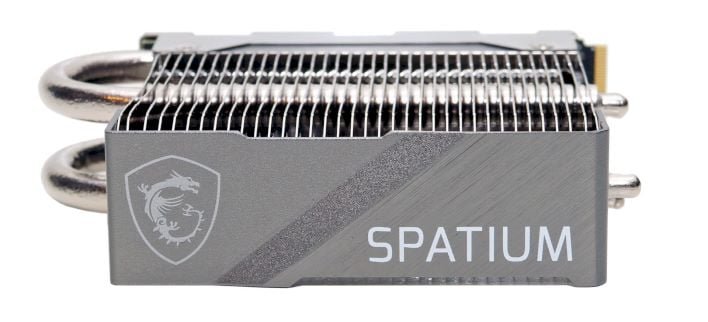

As you’ll be able to see, there’s a tall nickel-plated aluminum fin-stack on the Spatium M570 Professional, linked to a heat-plate by three heat-pipes, that rests immediately atop the Phison E26 controller, top-side NAND and DRAM cache. Whereas all high-end E26-based drives require some type of cooling, few go as exhausting as MSI did right here. Supplied there may be ample air-flow in your chassis, that enormous cooler is greater than as much as the duty of maintaining the Spatium M570 Professional buzzing alongside at high velocity.

There are a couple of downsides to that cooler, nevertheless. With out ample clearance across the M.2 slot, it merely could not match on some motherboards. It additionally requires the entire elimination of any stylized M.2 warmth plates included with most fanatic motherboards out there at present. The cooler clearly provides some value as properly, and precludes it from becoming within the PS5.

MSI Area M570 Professional SSD SSD Benchmarks

Underneath every take a look at situation, the SSDs showcased right here had been put in as secondary volumes in our testbed, with a separate drive used for the OS and benchmark installations. Our testbed’s motherboard was up to date with the most recent BIOS out there on the time of publication and Home windows 11 was absolutely up to date. Home windows Firewall, computerized updates, and display screen savers had been all disabled earlier than testing, and Focus Help was enabled to forestall any interruptions.

In all take a look at runs, we rebooted the system, ensured all temp and prefetch knowledge was purged, and waited a number of minutes for drive exercise to settle and for the system to succeed in an idle state earlier than invoking a take a look at. The entire drives right here have additionally been up to date to their newest firmware as of press time. The place relevant, we might additionally sometimes use any proprietary NVMe drivers out there from a given producer. When not out there, the drives used the Microsoft driver included with Home windows 11.

HotHardware’s Take a look at System:

---

IOMeter Benchmarks

IOMeter is a well-respected trade normal benchmark. Nevertheless, regardless of our outcomes with IOMeter scaling as anticipated, it’s debatable as as to whether or not sure entry patterns really present a sound instance of real-world efficiency. The entry patterns we examined could not mirror your specific workloads, for instance. That mentioned, we do assume IOMeter is a dependable gauge for relative throughput, latency, and bandwidth with a given storage answer. As well as, there are specific highly-strenuous workloads you’ll be able to place on a drive with IOMeter that you would be able to’t with most different storage benchmark instruments.

Within the following tables, we’re exhibiting two units of entry patterns; a customized Workstation sample, with an 8K switch dimension, consisting of 80% reads (20% writes) and 80% random (20% sequential) entry and a 4K entry sample with a 4K switch dimension, comprised of 67% reads (33% writes) and 100% random entry. Queue depths from 1 to 16 had been examined…

When it comes to latency, we see extra of the identical, with the MSI Spatium M570 Professional SSD ending proper on high of the Essential T700. Observe, nevertheless, whereas there are apparent variations in efficiency between the drives with these workloads, all of those SSDs are quick.

SiSoft SANDRA 2022

SANDRA’s storage benchmark is actually  a take a look at of sequential efficiency, and as you’d count on, the PCIe 5.0 drives depart the older PCIe 4.0 drives behind. The MSI Spatium M570 Professional SSD places up robust numbers right here, nipping on the Essential T700’s heals throughout the board.

ATTO Disk Benchmark

ATTO is one other “fast and soiled” sort of disk benchmark that measures switch speeds throughout a selected quantity size. It measures uncooked switch charges for each reads and writes and graphs them out in an simply interpreted chart. We selected .5KB by 64MB switch sizes and a queue depth of 6 over a complete max quantity size of 256MB. ATTO’s workloads are sequential in nature and measure uncooked bandwidth, reasonably than I/O response time, entry latency, and so on.

As soon as once more, when it comes to sequential learn and write efficiency, whatever the switch dimension, the MSI Spatium M570 Professional SSD competes properly with the Essential T700, which is to say it’s among the many quickest drives we have examined up to now.

Learn and write IO throughput can be superb with the MSI Spatium M570 Professional SSD. It does not draw back at any specific level, but it surely stays within the combine with the quickest drives throughout the vary of switch sizes.

AS SSD Compression Benchmark

Subsequent up we ran the Compression Benchmark built-into AS SSD, an SSD particular benchmark being developed by Alex Clever Software program. This take a look at is attention-grabbing as a result of it makes use of a mixture of compressible and non-compressible knowledge and outputs each Learn and Write throughput of the drive. We solely graphed a small fraction of the info (1% compressible, 50% compressible, and 100% compressible), however the pattern is consultant of the benchmark’s full outcomes.

The compressibility of the info being transferred throughout the drives we examined has nearly no affect on efficiency. The slight variations with a few of the drives fall inside the margin of error for this take a look at. Relating to the MSI Spatium M570 Professional SSD particularly, its learn and write efficiency right here is top-notch, and trails solely the Essential T700 within the learn take a look at.
