May the analog quartz wristwatch, a mainstay of the timepiece marketplace for greater than half a century, be headed lastly for a high-tech makeover? A French startup, SilMach, in Besançon, France, is betting massive that it’s. The corporate has used silicon microelectromechanical techniques (MEMS) to provide a wholly new wristwatch motor for analog watches that’s half the scale and roughly thrice as environment friendly compared with the usual stepper motor now utilized in wristwatches.
Actually? Analog watches? Now? Within the age of the smartwatch?
Time for a actuality verify: Quartz analog wristwatches truly accounted for near three-quarters of the marketplace for standard wristwatches lately, in accordance with information compiled by the analysis agency Gitnux. And that total market was valued at US $66 billion this 12 months—barely bigger than the worldwide marketplace for smartwatches, by some estimates.
And but in the present day’s analog quartz watches are technologically unchanged from the primary quartz watches, launched 53 years in the past by a Swiss consortium and by Japanese watchmaker Seiko. These watches, and in the present day’s watches, used a form of synchronous direct-current stepper motor referred to as a Lavet motor, invented in 1936 by Marius Lavet, a French engineer.
A technician assembles a TimeChanger wristwatch, the primary to be outfitted with MEMS motors.SilMach
The concept of utilizing silicon MEMS to make a watch motor seized French engineer Patrice Minotti in 1996 whereas he was in Tokyo, heading a joint laboratory between France’s Centre Nationwide de la Recherche Scientifique and the College of Tokyo. “I used to be personally impressed by the very first IC-processed electrostatic motor, which was created a couple of years earlier by Richard Muller (UC Berkeley),” Minotti wrote in an e-mail. “This very first IC-based MEMS motor was an incredible laboratory demonstrator however wasn’t ready, by far, to drive the palms of a wristwatch…. I imagined a brand new MEMS motor structure that might be capable of drastically amplify the driving torque of state-of-the-art electrostatic MEMS motors.”
The kind of MEMS actuator the group started working with was the comb drive. To know the way it works, think about two combs with extensively spaced tooth, going through one another with their tooth interleaved. Voltages utilized to every comb arrange an electrostatic attraction, or repulsion, that causes the combs to maneuver towards, or away from, one another. To get rotational movement, levers and crankshafts are linked to the shifting combs.
One massive problem was that 2,000 such combs have been wanted to provide sufficient torque to maneuver the palms of the watch instantly, with none gearing. One other hurdle was the circuitry wanted to get a 3-volt watch battery to provide the 110-V alerts wanted to energy the electrostatic comb drives. Within the present MEMS motor, this conversion is completed by an application-specific built-in circuit occupying simply 2 millimeters sq.. It took almost a decade to develop, beginning in 2012, in accordance with Pierre-François Louvigné, co-CEO of SilMach.
A wafer containing drive models for the wristwatch motor was produced at a MEMS fab facility in France. SilMach

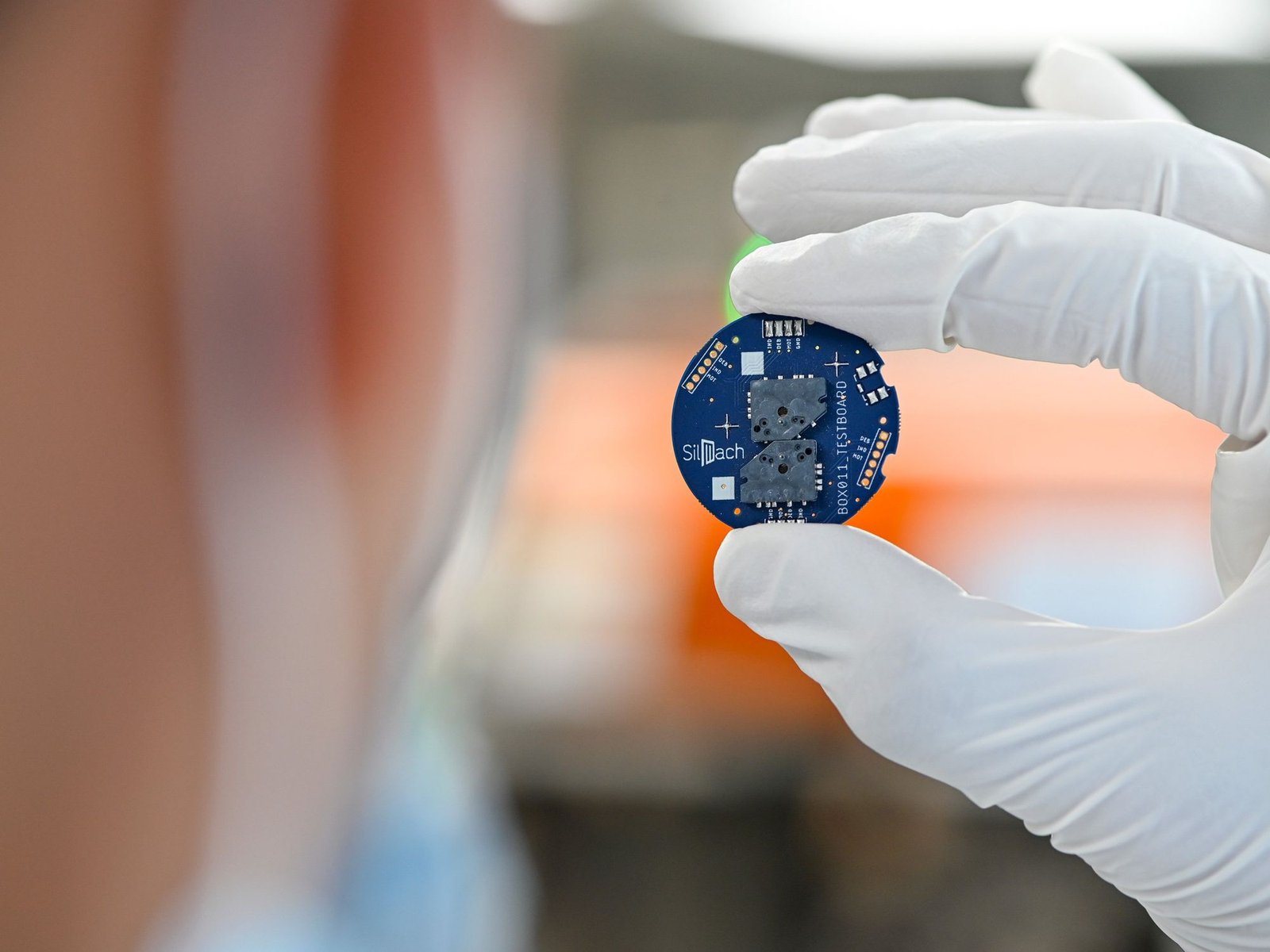

In 2016, the corporate entered right into a three way partnership, referred to as TiMach, with Timex Group, the watchmaking large. Timex offered experience wanted to tweak the design of the MEMS motors in order that they may very well be fabricated in a kind readily usable by watch producers. Of their present kind, the motors (one for every hand of a watch) and all the opposite elements of a watch could be soldered instantly on to a single surface-mount printed circuit board.
Such compactness and ease of integration is especially advantageous for makers of hybrid smartwatches, reminiscent of Withings, Garmin, Citizen, Fossil, and Skagen. These watches have lots of the capabilities of smartwatches—pulse and sleep monitoring, health monitoring, Bluetooth communications, message displaying—together with bodily palms, like a conventional analog watch and, after all, a motor. As a result of hybrid timepieces should mix that motor with a wide range of digital sensors and a show, the watches are sometimes fairly massive, and area contained in the case is often very tight.
SilMach is betting on the growth of the marketplace for these hybrid smartwatches, for which their motor may be very properly suited. “In a typical hybrid smartwatch, the Lavet motor occupies as much as 70 % of the within of the case,” says Jean-Baptiste Carnet, SilMach’s different co-CEO. Thus the smaller dimension of the MEMs motors means rather more room for different electronics and sensors, he notes. Or, the watches might lastly be made compact sufficient to be worn by individuals with normal-size wrists.
As well as, the truth that the MEMS motors could be built-in instantly with the opposite electronics simplifies manufacturing. “We expect all watches, all wearables, will likely be absolutely digital,” Louvigné declares.
The primary watch utilizing the brand new motor was lately supplied as a restricted version on Kickstarter, for €1,850. The corporate can also be in discussions with a number of main watchmakers, Louvigné says, including that the corporate would have additional bulletins on the Shopper Electronics Present (CES), in January.
