PNY CS3150-HS 1TB SSD evaluate: Eye-wateringly quick

PCI Gen 5 drives are right here, and we’ve examined PNY’s CS3150-HS 1TB to see if the SSD is admittedly going to be as fast as the corporate claims, and in the event you ought to choose one up on your gaming rig.

Getting a brand new SSD on your PC is likely to be getting a bit harder, and it’s as a result of introduction of fast PCI 5 drives starting to hit the market. Lately launched in January, PNY’s CS3150 has lastly landed. However, are they actually quick sufficient to warrant their value tags?

We examine their CS3150-HS, which sports activities a relatively massive heatsink, alongside an addressable fan connector. These SSDs would possibly look barely completely different from their PCI 3 or PCI 4 brethren in a single massive approach: Their heatsinks are gigantic. This finally ends up making the SSD appear to be a mini GPU, strapped right into a tiny slot, relatively than the gumsticks we’re so accustomed to seeing from the likes of Sabrent.

Key specs

• Capability: 1TB
• Kind issue: M.2 2280
• Max sequential learn: 11,500 MB/s
• Max sequential write: 8,500 MB/s
• Guarantee: 5 years
• Worth: $194.99

Design

Dexerto

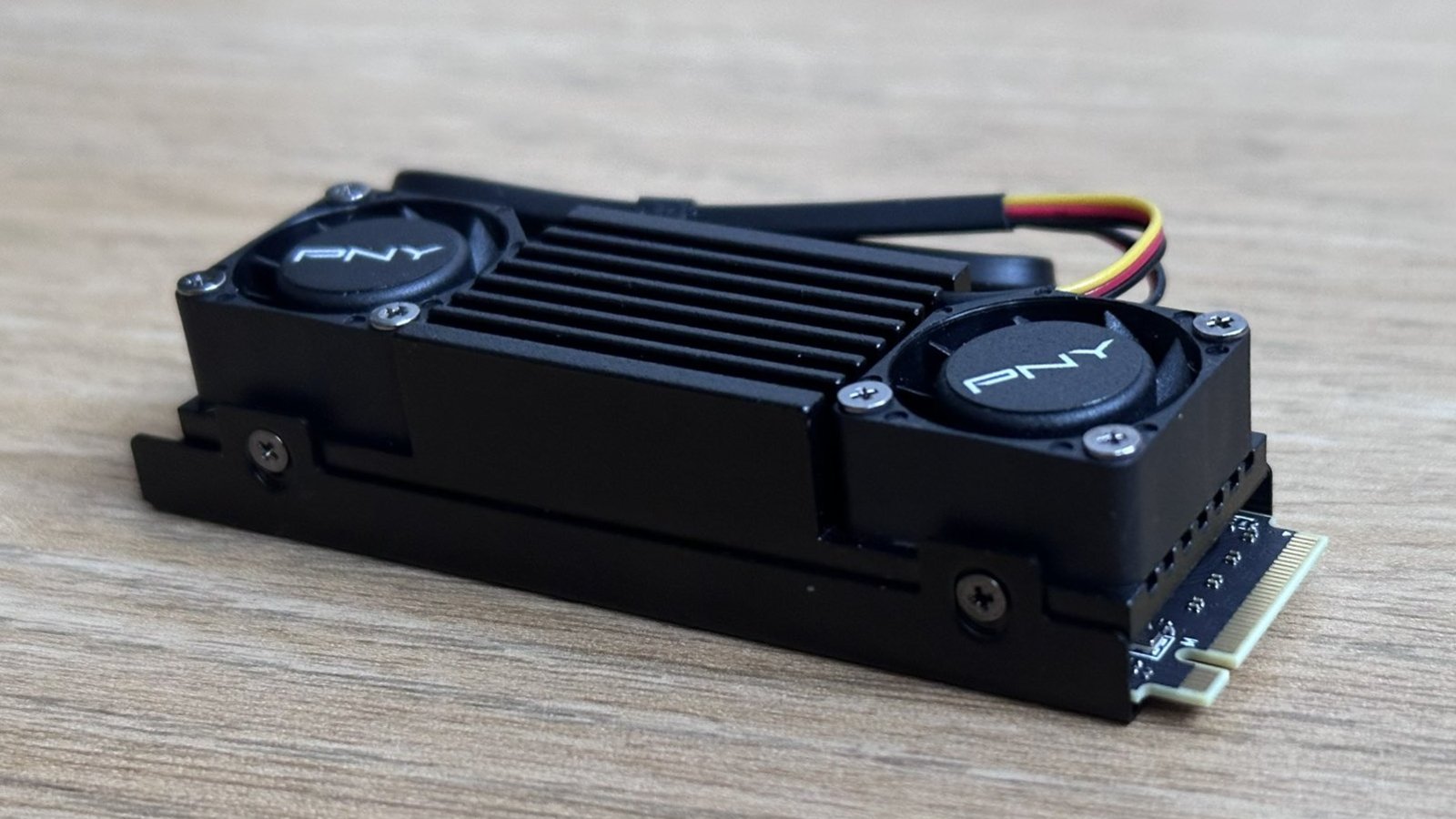

As we talked about earlier than, PNY’s CS3150-HS has a few tips up its sleeve. Firstly, the SSD comes mounted to a reasonably chunky heatsink, which is offered in a metallic black end. At every of the SSD’s flanks is a pair of teeny tiny followers, which permits the SSD to obtain some type of lively cooling, which goes to be vital if you wish to hit these key marketed speeds which are plastered on the field.

However, there’s one ugly addition: The addressable fan connector which protrudes from the heatsink itself. Whereas it’s nice which you could configure fan speeds and curves, the cable itself just isn’t totally wrapped, as an alternative, the cable has accented ketchup and mustard cabling which simply appears to be like downright terrible. It’s 2024, can we not make black cables for high-end efficiency {hardware} as of late?

The cable, no matter its look, has sufficient size on it to suit nearly any motherboard. However, as a result of sheer dimension of the drive itself, you would possibly wish to examine in the event you even have clearance for it in your motherboard. Some boards supply an built-in heatsink, which gained’t be appropriate with this drive.

We’ve most not too long ago seen corporations like Sabrent supply up Gen 5 drives and not using a heatsink, so it might have been good to see PNY try such a feat, too.

Given its 2280 type issue, you’ll have the ability to slot it in nearly wherever, simply ensure you have a PCI 5 slot to accommodate the complete potential on supply from the drive itself.

Efficiency

Dexerto

So, does the PNY CS3150 actually have it the place it counts relating to efficiency? I left the fan to its default curves in my testing, and put it via a gauntlet of checks by way of a number of strategies. Crystal DiskM ark, and in addition to transferring over some real-world recordsdata and the way it masses in gaming situations.

Crystal Disk Mark outcomes

• Max sequential learn: 11,422 MB/s
• Max sequential write: 8,445 MB/s

The CS3150 places in an amazing efficiency right here, managing to interrupt some limitations with some mighty spectacular artificial outcomes. The SSD is making use of all the additional bandwidth afforded to it on the PCI lanes to be able to make operation completely fast.

However, whereas the numbers do certainly inform an attention-grabbing story, what about real-world utilization?

Actual-world use

The CS3150 was barely sooner when loading up an set up of Tekken 8, when in comparison with the Samsung 990 Professional that was put in in a special slot on the system. It’s an actual blink and also you’ll miss it state of affairs although, however there’s some advantage to having fast speeds afforded by Gen 5 drives. If I wasn’t particularly measuring this nonetheless, I’d wrestle to see any actual variations in efficiency from each drives.

Transferring a big video file to the drive additionally showcased spectacular outcomes with a 50GB file being transferred in beneath ten seconds flat: That is spectacular, however until you’re doing this frequently, it turns into a little bit of a moot level relating to the extent of velocity that these drives are actually reaching.

Do you have to purchase it?

Dexerto

There are a few issues concerning the PNY CS3150 that I like: its switch speeds being one among them. However, as somebody who isn’t frequently watching the clock when my video games load, or transferring massive recordsdata to my system, I’d be completely pleased sitting with an present, cheaper Gen 4 drive that sits at a better capability for across the similar value.

Proper now, these speeds are spectacular when it comes to efficiency, however the worth it affords to the person in gaming PCs remains to be a bit questionable proper now. As these drives are popularized and extensively supported, and when costs start to come back down, it is likely to be a better tablet to swallow.

Verdict: 4/5

It’s troublesome to refute the pure efficiency on supply right here. Whereas there are components just like the partially wrapped fan cable that I wasn’t a fan of, it’s nonetheless a formidable drive that may supply heaps of velocity for individuals who want it. Simply bear in mind, if you’re getting one among these, you ought to be somebody who’s transferring massive recordsdata usually, in any other case, there’s little or no level in spending more cash proper now, over getting a PCI 4 different.
