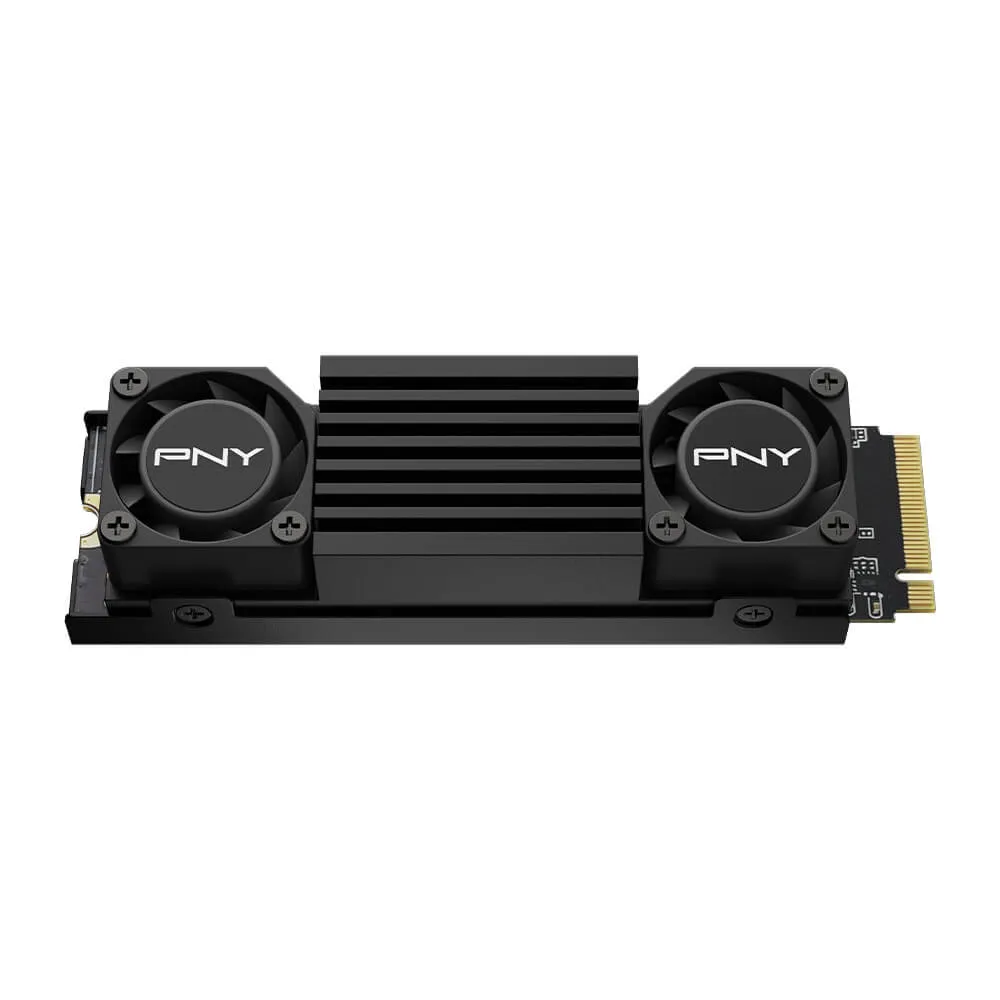

The machine dimensions permit for integration with a variety of laptop instances, sustaining a top of 39.8mm, which is conducive to system compatibility and contrasts with bigger alternate options just like the Nextorage NE5N. The RGB mannequin contains further elements corresponding to a backplate, thermal pads, the SSD, a heatspreader, and the RGB shroud, but retains a compact profile.
Technical specs for the XLR8 CS3150 SSD are as follows:
- Capacities Accessible: 1TB and 2TB
- Reminiscence Kind: 3D NAND Flash
- Interface: PCIe Gen5 x4, NVMe 2.0
- Type Issue: M.2 2280
- Bundle Dimension: 155.9 x 55.1 x 39.8 mm
- Product Dimension: 76 x 23.5 x 17.5 mm (most)
- Weight: 53 grams
- Sequential Learn Speeds: As much as 11,500 MB/s (1TB), As much as 12,000 MB/s (2TB)
- Sequential Write Speeds: As much as 8,500 MB/s (1TB), As much as 11,000 MB/s (2TB)
- Heatsink Fan Energy: 4-pin connector
- Energy Administration Help: S0/PS1/PS2/PS3/PS4, APST, ASPM, L1.2
- Working Temperature Vary: 0°C to 70°C
- Storage Temperature Vary: -40°C to 85°C
- Certifications: BSMI, CE, FCC, REACH, RoHS, VCCI, PCIe Base 5.0, NVMe 2.0
- Imply Time Between Failures (MTBF): 1.6 million hours
- Error Correction: LDPC ECC
- Monitoring: S.M.A.R.T capabilities
- Information Path Safety: Finish-to-Finish
- Efficiency Options: TRIM help
- Guarantee: 5 years (restricted)
Efficiency metrics are derived from PNY’s inner testing and will not replicate real-world eventualities because of various machine configurations.
With the rise of SSDs that includes energetic cooling options, it will be important for specs to incorporate fan particulars corresponding to bearing kind, airflow (CFM), and noise degree (dB). These are generally supplied by producers of cooling options for different elements like CPUs and GPUs.
The development within the trade is shifting in direction of SSDs with substantial cooling mechanisms to handle the warmth generated by the newest controllers, such because the Phison E26. The cooling effectivity depends on a number of elements, together with the design, case airflow, and chip structure. The rising prominence of those bulkier coolers necessitates visibility on the motherboard, diverging from the traditional slim M.2 drives.
Developments in PCIe 5.0 controller expertise, exemplified by the Silicon Movement SM2508 and the InnoGrit G5666, are anticipated to reinforce effectivity and cooling in future SSDs, with developments anticipated to be disclosed at CES 2024 or in comparable timeframes.
