Samsung Introduces LPCAMM Reminiscence Modules

Though Low Energy DDR(LPDDR) reminiscence has performed a pivotal position in lowering PC laptop computer energy utilization, the disadvantage to the mobile-focused reminiscence has all the time been its tight signaling and energy supply necessities. Designed to be positioned near its host CPU as a way to reduce energy expenditures and maximize clockspeeds, LPDDR reminiscence is unsuitable to be used in conventional DIMMs and SO-DIMMs – as a substitute requiring that or not it’s soldered down on a tool prematurely. But it surely seems to be like the times of soldered-down LPDDR reminiscence are quickly at an finish, as this night Samsung is asserting a brand new normal for detachable and modular LPDDR reminiscence: LPCAMM.

Pitched as an LPDDR-centric model of the upcoming Compression Hooked up Reminiscence Module (CAMM) normal for detachable cell reminiscence, LPCAMM is Samsung’s tackle utilizing the identical fashion of compression connector interface for LPDDR reminiscence. The online result’s that, because of the extra exacting specs and shorter hint lengths utilized by a CAMM-style connector, Samsung says it’s potential to have modular and swappable LPDDR5 reminiscence finally. And all in a fraction of the area a conventional SO-DIMM setup would occupy.

Whereas the CAMM format has barely gotten off of the bottom itself – JEDEC has but to even approve the usual – Samsung is actually opting to run with the concept to do one thing totally different with it by specializing in LPDDR reminiscence. Notably, nevertheless, the ensuing LPCAMM kind issue is incompatible with CAMMs – each bodily and electrically – so regardless of the same names and use of compression connectors, the 2 are usually not interchangeable. However each pursue the identical concepts for his or her respective reminiscence varieties.

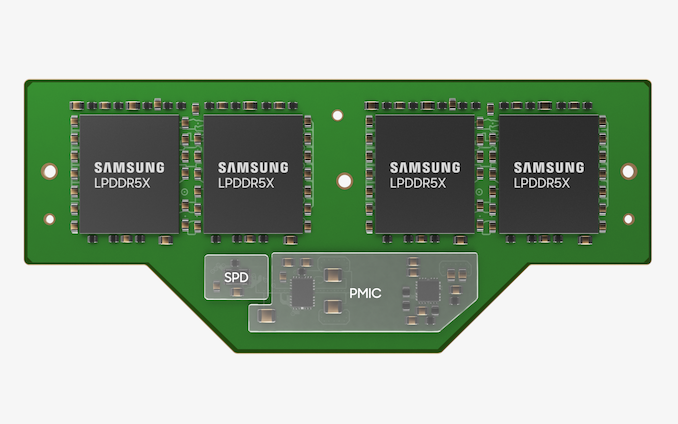

LPCAMM is already in improvement at Samsung for a 2024 business launch, and for this night’s announcement Samsung despatched over a render of an LPCAMM module. Which, mixed with the corporate’s press launch, supplies a wealth of technical particulars on the brand new reminiscence kind issue.

The rapid takeaway is that with LPCAMM, Samsung is putting 4 x32 LPDDR5X reminiscence packages straight over the compression connector, permitting for a 128-bit reminiscence bus on a single reminiscence module. Whereas Samsung didn’t present us with an image/render of the alternative facet, we’re instructed it’s principally all sign pads on the alternative facet, just like the connector portion of a full-size CAMM module.

For comparability: the connector facet of a pre-standardization Dell DDR5 CAMM module

Critically, as a result of the LPDDR5X chips are straight over the connector, this minimizes the space a sign travels between the host reminiscence controller and reminiscence chips. Even CAMMs, which decreased this distance, nonetheless required far for the sign to journey alongside the module from the connector to the reminiscence chips farther away. In different phrases, Samsung has primarily created a socket kind issue for LPDDR reminiscence, with solely the bare-minimum trance size and PCB between the chips and the motherboard.

The module itself measures 78mm x 23mm. Moreover the DRAM packages themselves, the one different electronics on an LPCAMM module are the SPD, and the facility administration IC(PMIC). Which, just like the CAMM normal, permits a module to supply for its personal voltage regulation and identification. Since these parts aren’t as delicate to sign integrity and take up an honest little bit of area themselves, they’re offset from the connector portion of the LPCAMM.

For his or her first era of LPCAMM modules, Samsung is wanting as capacities of 32GB, 64GB, and 128GB, with knowledge charges as much as LPDDR5X-7500. Samsung doesn’t at present have any 256Gbit LPDDR5X reminiscence modules of their catalog, so both the corporate has a method to match 8 modules on to an LPCAMM, or extra seemingly they intend to introduce bigger reminiscence modules by the point LPCAMMs ship subsequent 12 months. In any other case the information price is a tier beneath Samsung’s finest reminiscence modules (8533 MT/sec), however I wouldn’t be shocked to ultimately discover out that it’s the trade-off for having modular LPDDR reminiscence.

Based on Samsung, they’ve already verified their LPCAMMs with an unnamed Intel platform – nearly definitely Raptor Lake cell, given the timing of the announcement. Although nothing about LPCAMMs is vendor-specific, and if the shape issue is profitable, I wouldn’t be shocked to see laptop computer producers additionally decide it up for AMD designs.

Trying on the greater (smaller?) image, Samsung is pitching LPCAMMs as a crossover answer for providing a versatile quantity of low-power reminiscence in laptops, and maybe extra apparently, servers. At the moment system distributors wanting to put in LPDDR must solder the reminiscence down on the time of manufacture, which implies that there’s no additional alternative to regulate the quantity of reminiscence after the very fact. So for modular reminiscence, distributors (and clients) are caught selecting between a hard and fast quantity of LPDDR or a versatile quantity of DDR on SO-DIMMs. LPCAMMs could be a middle-ground answer, permitting a versatile quantity of quicker LPDDR reminiscence on a bundle smaller than SO-DIMMs (and with a decrease whole capability), however nonetheless a bit bigger than a compact and optimized soldered-down answer. The online end result could be that system distributors might customise programs and set up the suitable quantity of reminiscence when the system is ordered, and laptop computer homeowners might swap in a bigger LPCAMM farther down the road as a system improve.

The proposed use case for servers is sort of related as properly. Servers are growing utilizing LPDDR reminiscence for improved efficiency and decrease reminiscence energy necessities, comparable to with NVIDIA’s Grace platform. So a modular answer would enable server distributors to equally configure programs at construct time, and to do reminiscence upgrades down the road with out having to swap out your complete motherboard/system.

For the second, Samsung isn’t saying how LPCAMM compares to soldered LPDDR5X reminiscence almost about dimension or efficiency – it greater and nearly definitely a bit extra energy hungry resulting from hint lengths. In any other case, as a substitute for SO-DIMMs, Samsung says that LPDDR5X LPCAMMs solely occupy 40% of the area of a DDR5 SO-DIMM, and enhance energy effectivity by as much as 70%, roughly in keeping with the final good thing about LPDDR5X over LPDDR5.

However even with this newfound flexibility, don’t anticipate to see LPCAMMs change soldered LPDDR reminiscence – at the least not wholesale. Moreover the upper certified speeds for a soldered answer, LPCAMMs can’t match the smaller footprint of a soldered answer, particularly as distributors are beginning to put LPDDR reminiscence straight on chip packages (i.e. Apple). Relying on the price of implementation, LPCAMMs might displace soldered-on-motherboard reminiscence, whereas ultraportable units will more and more embrace soldered-on-package reminiscence to maximise area and effectivity.

As for standardization, in accordance with Samsung they’re working with companions to get a JEDEC normal for LPCAMMs. All of the whereas, the JEDEC introduced again in March that they have been additionally engaged on extending the CAMM normal to cowl LPDDR reminiscence, utilizing the identical connector for each DDR5 and LPDDR5. At the moment we’ve heard no additional data from the group, and absent a ratified CAMM normal, it’s unclear if JEDEC remains to be transferring ahead with their LPDDR proposal. Finally, we might but see rival CAMM-style requirements for LPDDR reminiscence, relying on how standardization shakes out.

A suspicious compression hooked up reminiscence module noticed at ADATA’s Computex 2023 each in June

In any case, it seems to be like Samsung has already been working with at the least one accomplice for a number of months. When scrolling by way of our archives, we noticed an image of an LPCAMM module on the present ground of Computex 2023. Taken at ADATA’s sales space, the module was labeled a CAMM, however is clearly within the LPCAMM kind issue, giving us an thought of what a bodily LPCAMM module seems to be like.

Wrapping issues up, we anticipate to listen to extra about LPCAMM (and CAMM) within the coming months, particularly because the later is lastly standardized. If all goes in accordance with plan, Samsung expects to be commercializing LPCAMMs in 2024, which ought to line it as much as ship in programs primarily based on Intel’s next-generation Meteor Lake platform.
