TweakTown’s Ranking: 68%
The Backside Line
SilverStone’s MILO 12 mITX case is an efficient providing for a selected crowd, nevertheless it lacks higher CPU cooling help and is overpriced for what it’s.
Execs
- + Tons of two.5
- + Help for triple-slotted GPUs which might be as much as 345mm in size
- + Help for full-size ATX or SFX-L PSUs
- + GPU temperatures have been nice for an SFF case
- + Help for 9.5mm slim ODD
Cons
- – Restricted to 77mm CPU cooler top making CPU cooling difficult
- – Value
Do you have to purchase it?
Keep away fromContemplateShortlistPurchase
Introduction, Specs, and Pricing
SilverStone, a staple on the mITX facet of the case market, has despatched over their MILO 12 for us to evaluate. The MILO 12 is a slim and compact enclosure with sufficient room for a three-slot GPU, coming in at 105x393x378mm or 15.6 liters. Priced at $179.99, the MILO 12 will put a large dent in your pockets. Let’s have a look at if it is price it.
SilverStone MILO 12 mITX Case
| At present | Yesterday | 7 days in the past | 30 days in the past | ||
|---|---|---|---|---|---|
| £210.52 | £211.70 | – | |||
|
* Costs final scanned on 9/4/2023 at 8:59 pm CDT – costs is probably not correct, click on hyperlinks above for the most recent value. We might earn an affiliate fee. |
|||||
Packaging
18VIEW GALLERY – 18 IMAGES
SilverStone has packaged the MILO 12 in a plain sufficient brown cardboard field with the SilverStone identify, emblem, and MILO 12 naming on the facet.
18Additionally printed on the slim facet of the field are the specs.
18The MILO 12 got here packaged in two dense items of froth with a pleasant comfortable cushion. Masking the MILO 12 is a transparent plastic bag.
Exterior the SilverStone MILO 12 mITX Case
18Each facet panels have loads of air flow, with diamond-shaped holes with finer mesh behind and being interchangeable.
18The rear of the MILO 12 showcases the skinny and compact design. Captive thumb screws maintain the highest, backside, and facet panels all in place. Help for as much as three slot GPU and SFX PSUs with a relocated energy cable enter situated on the underside.
18Proven right here is the included stand that snaps collectively within the center.
18The entrance of the MILO 12, beginning with the highest, reveals some mesh air flow, with the HDD exercise gentle, button, and a hidden triangular energy button. Transferring all the way down to the middle is the entrance I/O, consisting of two USB 3.0 Sort-A ports, a single USB Sort-C (Key A)port, and a mixture headphone/microphone 3.5mm jack. Additionally, for the astute amongst you, a 9,5mm ODD might be supported right here as nicely, come out the little bit of plastic, and you’re in enterprise, simply so long as an SFX-L PSU is used.
Contained in the SilverStone MILO 12 mITX Case
18Taking the left facet panel off reveals the GPU chamber, which helps as much as a triple-slot GPU. GPUs as much as 345mm in complete size might be put in. On the right-hand facet, a GPU help bracket can maintain the GPU in additional securely. The bottom wall of the GPU chamber additionally has a big cutout to permit GPUs with an air flowthrough design to breathe extra simply.

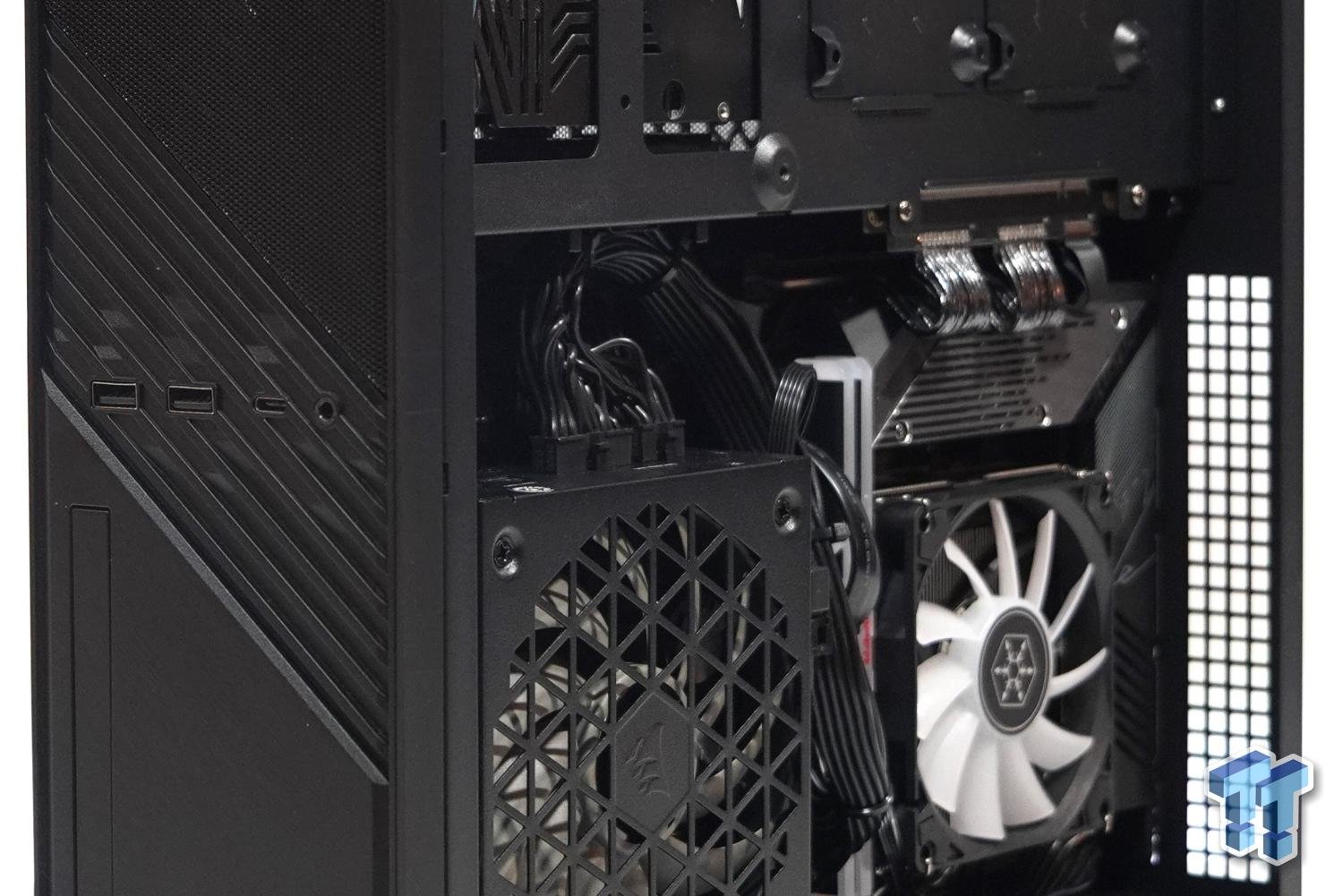

18On the CPU and PSU chamber facet of the MILO 12 is help for 2 SSD or HDD on the opposite facet of the GPU chamber, whereas to the precise of the SSD, mounts present help for a 140mm fan mounting to assist with air crossflow. Transferring down into the PSU and CPU chamber is the bracket for mounting an SFX PSU. To the precise of the PSU bracket is the place an mITX motherboard is mounted, full with an oblong cutout for simpler entry for upkeep.
18The all-blacked-out cabling is far appreciated, beginning with the entrance panel pin connections, USB 3.0 header, HD Audio, and the USB Sort-C connector.
18One other shot of the 2 SSD or HDD brackets
18The PSU bracket can help a full-size ATX or SFX-L PSU.
18Eradicating the entrance cowl reveals just a few extra secrets and techniques the MILO 12 was hiding. An 80mm fan might be put in within the GPU chamber to assist airflow. A 3rd mounting location for a 2.5″ SSD or HDD is in entrance.
18Eradicating the underside panel reveals the place the SFX PSU could be plugged in with the included extension, and we discover a fourth location for two.5″ SSD or HDD help.
18SilverStone features a PCIe 4.0 riser cable, rubber self-adhesive ft, zip ties, screws, ODD mount, and guarantee data.
Check System, Set up, and Completed Product
- Motherboard: B650I AORUS Extremely(AMD B650) – Purchase from Amazon
- CPU: AMD Ryzen 9 7900 – Purchase from Amazon
- Cooler: SilverStone Expertise Hydrogon H90 ARGB – Purchase from Amazon
- Reminiscence: Patriot Viper Venom RGB DDR5-5600 32GB – Purchase from Amazon
- Storage: Kingston Fury Renegade 1TB Gen4 PCIe x4 NVMe M.2 SSD – Purchase from Amazon
- Case: SilverStone Milo 12 mITX – Purchase from Amazon
- Software program: AIDA64 Engineer 6.32.5600, and CPU-z 1.94.0 x64
- Energy Provide: Corsair SF850L 850w ATX 3.0 PSU – Purchase from Amazon
- OS: Microsoft Home windows 11 Professional 64-bit Construct 22621 – Purchase from Amazon
- Software program: AIDA64 Engineer 6.8.6300, and CPU-z 2.03.0 x64
[[
Ultimate Ideas
18Testing for round 5 hours, the MILO 12 didn’t take even that lengthy to warmth up. The take a look at system has an AMD Ryzen 9 7900 on a B650i AORUS Extremely motherboard and an NVIDIA RTX 3090 from Zotac. The Ryzen 9 7900 12 core 24 thread CPU has a TDP of 65 watts, which in all actuality ran a lot increased than that, to the diploma I needed to BIOS restrict the VCORE to 1V to maintain temperatures underneath the Ryzen 9 7900s Tjmax temperature of 95C. That mentioned, even limiting the VCORE to 1V, the package deal temperature nonetheless shot as much as 92C whereas utilizing a SilverStone Hydrogon H90 SFF CPU cooler. The upside is the Ryzen 9 7900 isn’t downclocked to maintain temperatures down.
However, the GPU, the NVIDIA RTX 3090 by Zotac, ran fairly nicely at a max temperature of 78C. Now why the GPU cooling was so good in comparison with why CPU cooling was so poor, it was due to how shut the GPU was to the facet panel. The GPU was capable of pull in recent cool air way more successfully than the CPU was, particularly for the reason that Hydrogon H90 SFF CPU cooler solely is 48mm in complete top, not even reaching near the utmost top of 77mm to achieve the cooler air by way of the mesh facet panel. One other issue is the design of the 7000 collection of CPUs from AMD, which are supposed to run sizzling by design. AMD had designed these CPUs to run nearly to the Tjmax threshold of 95C to take care of the next clock velocity.
18Conclusion time, is the MILO 12 from SilverStone an excellent mITX case? Constructing it was nice, and the whole lot appeared to have a spot. Would I like to recommend it to a gamer? No, probably not. I truly would suggest it for HTPC use. Probably. The place the MILO 12 really would shine is for the skilled that did not need loads of bling with a slim, compact design. Additionally, high-end {hardware} ought to apply elsewhere since CPU cooling might be a difficulty, so something over a 65-watt CPU needs to be averted totally.
Priced at a staggering $179.99, it makes for a tough tablet to swallow for a mITX case. For instance, Fractal’s Ridge retains the identical kind issue and design because the MILO 12, nevertheless it prices round $50 much less.
