RAID 0 is a technique that treats two or extra storage gadgets as one drive and data information in a distributed method. Its largest benefit is that it may improve information switch velocity. It was helpful within the days when HDDs, which had sluggish learn and write speeds, had been the principle storage system, however with the appearance of SSDs that had been sufficiently quick on their very own, they misplaced consideration.
After all, there may be nonetheless demand in artistic fields that deal with big quantities of knowledge, similar to video enhancing, as information switch velocity is straight linked to work effectivity, but when even one storage unit in RAID 0 breaks down, the info will turn out to be inaccessible. Widespread issues embody low redundancy, problem in connecting storage to a different PC to rescue information within the occasion of a PC failure, and elevated problem in OS set up as a result of have to construct a RAID array and set up drivers. In some functions, the disadvantages are extra noticeable.
Nonetheless! There’s one thing romantic about RAID 0, which mixes a number of storage items to dramatically velocity up information switch speeds. Individuals who wish to construct their very own gadgets have the expectation that in the event that they construct a RAID 0 utilizing already quick NVMe SSDs, all the pieces will likely be tremendous quick.
So, right here I wish to problem the query, “If I construct a RAID 0 with Gen 4 NVMe SSD, can the sport startup and loading time be shortened?”
I ready two Essential P5 Plus CT1000P5PSSD8JP.Now construct RAID 0
The NVMe SSDs I ready had been two Micron Essential P5 Plus CT1000P5PSSD8JP (Gen 4 connection, 1TB). The nominal sequential learn velocity is 6,600MB/s, and the sequential write velocity is 5,000MB/s, which isn’t the highest class for Gen 4 SSDs, however it may be mentioned to be sufficiently high-end specs.
Construct RAID in AMD X670E and Intel Z790 atmosphere
This time, we’ll construct a RAID 0 utilizing a mix of AMD’s Ryzen 9 7900X and a motherboard outfitted with an X670E chipset, and a mix of a motherboard outfitted with an Intel Core i9-13900K and Z790 chipset, and see how a lot the velocity will change in comparison with when related alone. I will test it out.
First, when constructing RAID, you must know that the supported RAID differs relying on the chipset. The desk beneath summarizes RAID help by present main chipsets.
| RAID help for main Intel chipsets | ||
|---|---|---|
| chipset | PCI Categorical | SATA |
| Z790 | RAID 0/1/5/10 | |
| H770 | RAID 0/1/5/10 | |
| B760 | × | RAID 0/1/5/10 |
| Z690 | RAID 0/1/5/10 | |
| H670 | RAID 0/1/5/10 | |
| B660 | × | RAID 0/1/5/10 |
| H610 | × | × |
| RAID help for main AMD chipsets | ||
|---|---|---|
| chipset | PCI Categorical | SATA |
| X670 | RAID 0/1/10 | |
| B650 | RAID 0/1/10 | |
| X570 | RAID 0/1/10 | |
| B550 | RAID 0/1/10 | |
| A520 | RAID 0/1/10 | |
With the Intel chipset B760/B660, solely SATA-connected storage could be constructed, and the H610 doesn’t help RAID. All of AMD’s main chipsets are able to RAID development. Nonetheless, it ought to be famous that even when each Intel and AMD chipsets help RAID, the RAID degree that can be utilized differs relying on the motherboard (for instance, even the Z790 doesn’t help RAID 10). In case you are pondering of constructing a RAID, you’ll want to examine earlier than buying a motherboard.
Subsequent, I’ll briefly introduce learn how to construct RAID for every chipset. The atmosphere used for this verification is as follows.
| AMD verification atmosphere | Intel verification atmosphere | |
|---|---|---|
| CPU | Ryzen 9 7900X | Core i9-13900K |
| motherboard | ASUS ROG CROSSHAIR X670E HERO (AMD X670E) |
ASRock Z790 Nova WiFi (Intel Z790) |
| Verification atmosphere (widespread) | |
|---|---|
| reminiscence | Micron Essential DDR5 Professional CP2K16G56C46U5 (PC5-44800 DDR5 SDRAM 16GB×2) |
| video card | MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC (NVIDIA GeForce RTX 4060) |
| CPU cooler | Corsair iCUE H150i RGB PRO XT (easy water cooling, 36cm class) |
| energy provide | Tremendous Flower LEADEX V G130X 1000W(1,000W、80PLUS Gold) |
| OS | Home windows 11 Professional(22H2) |
RAID 0 in Intel atmosphere
Subsequent, let’s take a look at the atmosphere of Core i9-13900K+Z790. This one makes use of a high-speed system bus of DMI 4.0 x8 (roughly 16,000MB/s) to attach the CPU and chipset, so it’s judged that there isn’t any bottleneck just like the X670E. I constructed a RAID 0 utilizing the M.2 slot through the chipset.

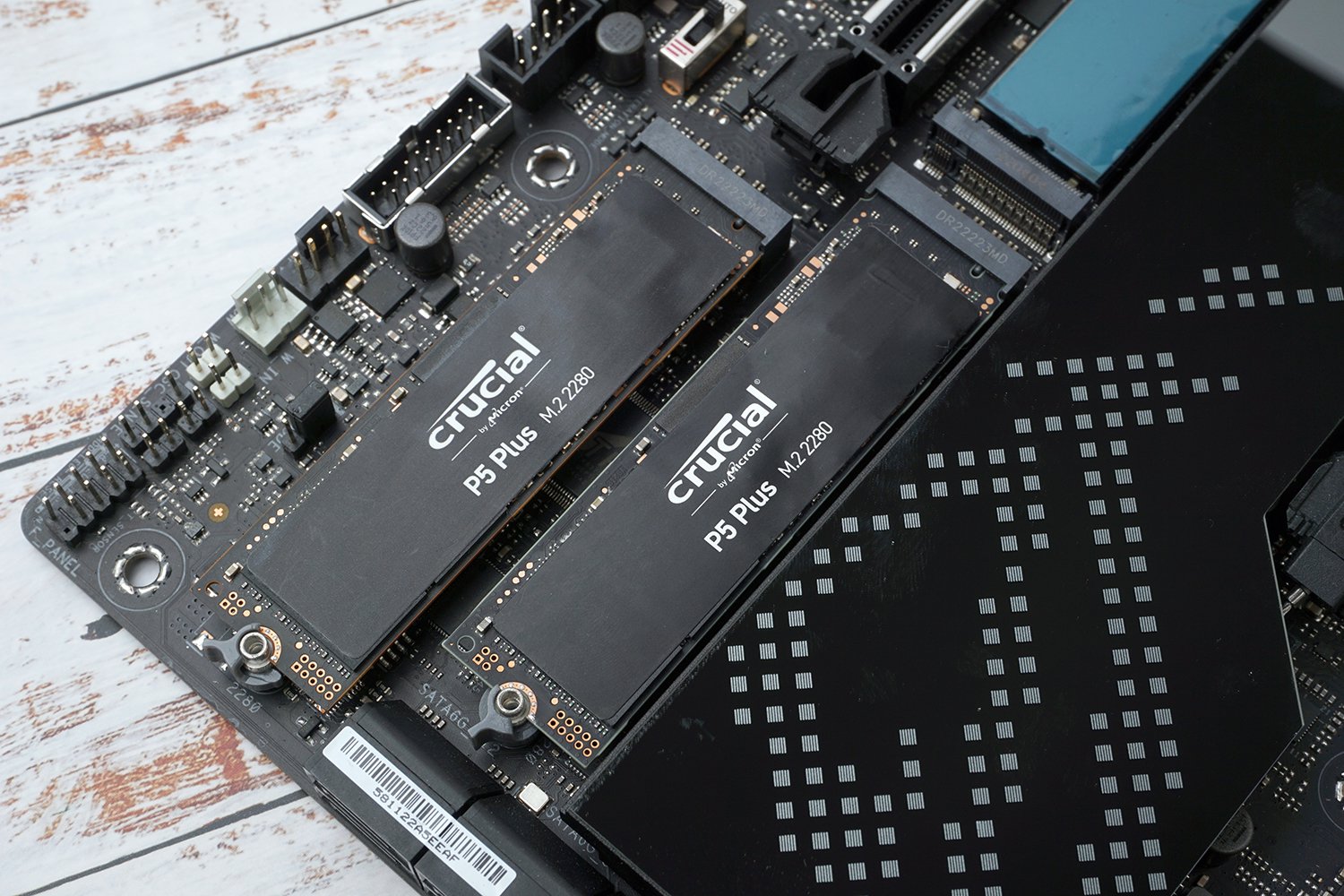

Put in SSD in M.2 slot through chipset of Z790 Nova WiFi
The process for constructing RAID 0 shouldn’t be a lot totally different from X670E. Allow VMD within the UEFI menu and construct a RAID array utilizing Intel Fast Storage Expertise. Equally, it’s obligatory to put in the RAID driver throughout OS set up. The RAID driver could be downloaded from ASRock’s web site.
Construct RAID 0 with Intel Fast Storage Expertise in UEFI
Save the RAID driver on the USB reminiscence upfront and cargo it utilizing “Load driver” on the OS set up location choice display.
By the best way, when constructing RAID 0, all detailed settings are made utilizing the motherboard’s default settings. As a complement, the stripe measurement was 256KB for the X670E and 64KB for the Z790.
Test your potential first with commonplace benchmarks
After constructing a RAID 0 atmosphere, let’s run CrystalDiskMark to easily examine the change in information switch velocity.
sequential velocity
Concerning sequential reads and writes, RAID 0 constructed with the M.2 slot through the X670E chipset peaked at round 6,000MB/s, as anticipated, because the system bus between the CPU and chipset gave the impression to be the bottleneck. It has turn out to be. Direct connection to the X670E’s CPU and through the Z790’s chipset completely demonstrates the ability of RAID 0, with sequential reads being greater than twice as quick and sequential writes roughly 1.9 instances sooner than a standalone system with out RAID. did.
Alternatively, concerning random efficiency, there have been variations in velocity relying on the connection methodology and chipset. For RAID 0, the minimal capability for studying and writing information is set by the set stripe measurement. For this X670E, it’s 256KB. Alternatively, CrystalDiskMark’s random exams are carried out in 4KB items, so studying and writing information in 256KB items is inefficient. This can be one motive why random entry is usually slower than when accessing it alone. Additionally it is fascinating that the developments are totally different between the X670E and Z790 environments.
Subsequent, let’s attempt 3DMark’s Storage Benchmark, which performs numerous game-related processes similar to beginning the sport, taking part in whereas recording, and shifting information.
That is a shocking outcome. The X670E chipset got here out on prime. Wanting on the particulars, it confirmed wonderful information switch speeds for recording and set up. Aside from that, the scores didn’t change a lot. There are in all probability variations that can’t be seen with CrystalDiskMark alone.
See modifications in sport launch and cargo instances
From right here, I wish to examine the principle situation, the sport startup and loading instances. First, let’s run the BLUE PROTOCOL benchmark and the FINAL FANTASY XIV: Akatsuki no Finale benchmark. In each instances, the loading time is recorded within the benchmark outcomes, so we use that.
Though the distinction is refined, the Z790 chipset is superior. Nonetheless, there isn’t any massive distinction in any of the X670E environments, so it can’t be denied that the distinction could also be as a result of distinction in platform slightly than the impact of RAID 0.
Subsequent, examine the precise sport startup time and loading time. In Cyberpunk 2077, “startup” is the time from while you press the “Play” button on the launcher till “Proceed with spacebar” is displayed, and while you click on on the save information from the loading display till “Proceed with spacebar” is displayed. was outlined as “load”.
For Starfield, “startup” is the time from while you press the “play” button on Steam till “PRESS ANY~” is displayed, and “loading” is the time from the loading display to choosing save information and with the ability to play.
For Murderer’s Creed Mirage, “startup” is the time from while you press the “play” button on Ubisoft Join till “Press any key” is displayed, and “loading” is the time from loading the save information to with the ability to play.
The typical worth of every run thrice is proven.
It may be mentioned that the Z790’s chipset is great, however in comparison with the state with out RAID, there’s a distinction of lower than 1 second in all the pieces besides the startup time of Murderer’s Creed Mirage, so it can’t be mentioned that it’s efficient sufficient to take the difficulty to create RAID 0. The truth that Murderer’s Creed Mirage begins up rapidly could be seen on account of the distinction in time between Intel and AMD platforms, slightly than the impact of RAID 0.
There isn’t any have to create RAID 0 for gaming functions.
In the event you construct RAID 0, there isn’t any doubt that sequential efficiency will improve. Will probably be efficient in case you are coping with massive quantities of knowledge. Nonetheless, the outcomes of this check present that it doesn’t result in sooner sport startup or loading instances.
For gaming functions, it’s protected to say {that a} Gen 4 related SSD alone will present enough efficiency. RAID 0 has some romance, however when you’re putting in a number of SSDs for gaming, we advocate simply utilizing them for set up. It is a disappointing outcome, nevertheless it proves as soon as once more that it has little impact on video games, so I am okay with it.
