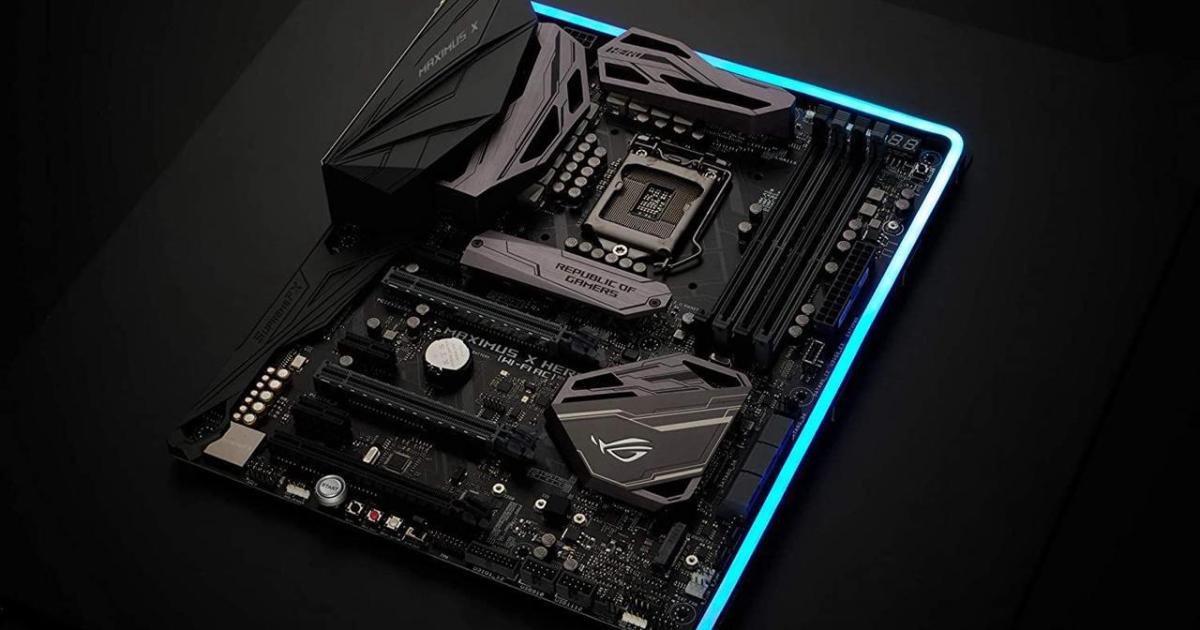

Your laptop’s motherboard is among the most significant elements in your PC’s chain of command. Consider it because the mind of your whole system, dealing with every little thing from processors and graphics playing cards to energy distribution and native reminiscence. In case your laptop’s been operating slower than regular, and also you’ve completed every little thing you’ll be able to to clear your cache, cookies, and different digital particles, then there’s likelihood your motherboard could be the wrongdoer.
Luckily, there’s a few strategies you should utilize for getting your motherboard again in working order, and we’re going to stroll you thru every a part of the method.
Reset your UEFI/BIOS
It’s not unusual for BIOS settings, significantly overclocks and requirements modifications, to trigger issues together with your PC. In the event you push issues too far, activate a setting your {hardware} isn’t appropriate with, or disable one thing essential, you may discover your system is unstable, received’t get previous the power-on self-test (POST) display screen, or received’t activate in any respect.
The best and quickest repair for this, and heaps of different motherboard issues, is to reset the BIOS.
Some motherboards have BIOS reset buttons on the rear I/O panel, or on the motherboard itself. If you may get into the BIOS (right here’s the way to entry your BIOS) then you should utilize the reset command — sometimes F5 — to reset the BIOS to its manufacturing unit default setting.
In the event you can’t do any of the above, although, you’ll be able to all the time do it the old-school, handbook approach. Energy down the PC and take off the facet panel. Unplug the facility cable and find the small, round disc battery on the motherboard. Rigorously take away it, then press and maintain the facility button in your PC for 30 seconds. This could drain any residual energy from the motherboard, leaving its settings to reset to default with out their battery backup.
Now you’ll be able to reinstall the battery, plug the cables again in, and energy up the system to see if it’s fastened your motherboard downside.
Have you ever checked the facility?
In case your system received’t activate in any respect, then checking the facility cables is an absolute should. Trendy motherboards sometimes require a number of energy cables, and forgetting simply one among them will imply your PC received’t activate in any respect. There’s a important 20- to 24-pin connector and a second four- or eight-pin connector hidden away by the processor socket. Some PCs also have a secondary four- or eight-pin cable, too.
Test that you’ve got all of the required cables plugged in, and that they’re totally seated and correctly matched with the right energy provide cords. If unsure, unplug them and plug them in once more.
Are the elements put in appropriately?
Parts may cause a motherboard to malfunction in the event that they’re not correctly put in, resulting in an unstable system at finest, and one which received’t even boot at worst. RAM, graphics playing cards, the CPU itself, and any add-in playing cards you’ve can all trigger these points if not put in correctly, so it’s a good suggestion to test them when you suppose you may need a {hardware} downside.
Study your graphics card when you can, nevertheless it’s sometimes simpler to simply reseat it. Take away the facility cables, then take away its PCI-bracket screw, press down on the retention bracket close to the tip of the PCIExpress slot, after which take away the cardboard. Push it again into the slot fastidiously to reseat it and be sure to hear the press of the bracket partaking earlier than screwing it in once more.
The RAM slot has two plastic wings that ought to snap over the edges of every stick of reminiscence. These needs to be standing upright at 90 levels from the motherboard’s floor and securely inserted across the tabs discovered on either side of your RAM sticks. If one or each wings are barely askew, the RAM isn’t correctly put in.
Correctly putting in a processor is way more troublesome, however is price checking when you’re actually stumped. The pins and the slot on the processor and motherboard should be correctly lined up. As soon as inserted, the processor ought to sit flat on the socket’s floor. The processor’s warmth sink also needs to connect firmly.
For extra assistance on putting in or reinstalling a processor, try our guides on the way to set up an Intel CPU and the way to set up an AMD CPU.
Is one thing shorting out?
Motherboards are full of capacitors and soldered connections that route knowledge and energy from one a part of the board to a different. As you could have seen, the motherboard is held aloft from the PC case by a sequence of screw-in standoffs which might be a few quarter-inch thick. These exist as a result of the motherboard can quick if it makes contact with different metallic elements, which might trigger the system to crash, and even do injury to its elements.
A motherboard experiencing a brief could begin up and instantly shut down once more, or could boot, however then crash at random. Study how your motherboard is put in. Test that you just used the standoffs that maintain the motherboard from contacting the case and be certain that any unsupported parts of the motherboard haven’t bent towards the case’s inside. Additionally, test that every one inside wires are correctly shielded with a rubber or plastic exterior.
In the event you’re nonetheless not sure if one thing is shorting, take away your complete PC from the case and rebuild it in your desk with all of the elements separated so you’ll be able to simply diagnose the place the quick is happening.
Test the entrance panel connectors
The ability button on a pc’s case connects to the motherboard by a skinny, two-pin wire, together with different entrance panel connectors like restart buttons, energy LEDs, and arduous drive exercise lights. With out this essential however easy-to-miss connection, your laptop received’t begin. That’s as a result of the motherboard by no means receives the command to take action when you press the facility button when the wire isn’t related to the correct pins in your motherboard.
Observe the wires from the entrance panel to your motherboard and be sure that the facility button connectors (typically labeled with a + and a -) are related correctly. If unsure, take away all of them, and simply be sure that the facility button ones are in place earlier than reattaching the others.
Strive updating your UEFI/BIOS/Firmware
The Unified Extensible Firmware Interface (UEFI) and Primary Enter/Output System (BIOS) join your PC’s firmware to its working system. If it’s not appropriate with the CPU or another part you’ve put in, it received’t activate. The newest UEFI/BIOS updates sometimes enhance stability and add options, however they will enhance compatibility too, so when you’re experiencing a motherboard downside, then updating your motherboard’s firmware may very well be the reply.
First, uninstall any {hardware} that you just put in that precipitated this concern so you may get the system again to a working state once more. Alternatively, some firms, like AMD, do have chip mortgage packages that may assist get you up and operating once more.
When you’ve a working system once more, obtain the most recent motherboard firmware out of your producer’s web site. Copy the recordsdata over to a USB drive, then reboot your system. Look in your UEFI for a instrument that may replace the BIOS, usually positioned within the Instruments part, although this can differ by producer.
Observe the on-screen directions to replace the firmware, and your downside needs to be solved. For extra ideas, observe our information on the way to replace your BIOS.
Observe: Don’t reboot, energy down, or in any other case intervene with the firmware replace course of, as doing so could make your PC inoperable completely.
What does a motherboard even do?
A motherboard is your PC’s important circuit board. That is the a part of the pc that strains all your system {hardware} to a number of central processing models (CPUs), sends out electrical energy from the facility provide, and supplies connections to your PC’s reminiscence, graphics card, and different essential {hardware}.
Can I exchange my laptop’s motherboard?
If not one of the above has helped you resolve your concern and also you’re nonetheless sure the motherboard is at fault, it could be time to switch it. If you’d like some assist selecting, we’ve a information to the most effective motherboards you should buy.
Do understand that no matter knowledge is being saved domestically in your compute will probably be erased although. You’ll additionally need to finances accordingly, as motherboard replacements can simply price upwards of $150.
