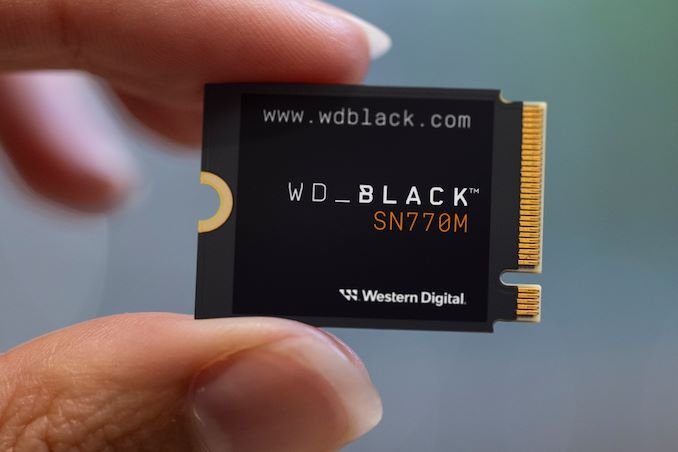

Western Digital has unveiled a compact model of its WD_Black SN770 SSD, tailor-made primarily for handheld gaming consoles such because the Asus ROG Ally and Valve Steam Deck. The WD_Black SN770M delivers the efficiency typical of a midrange PCIe 4.0 SSD, with help for options like Microsoft’s DirectStorage.
As implied by its title, the WD_Black SN770M is constructed on the identical platform as its bigger counterpart, the WD_Black SN770. It gives comparable efficiency metrics: sequential learn speeds of as much as 5150 MB/s, sequential write speeds of as much as 4900 MB/s, and random learn/write IOPS of as much as 740K/800K. Whereas the SN770M’s figures won’t rival the most recent PCIe Gen5 drives, needless to say these are compact SSDs designed for transportable, warmth and power-constrained consoles.
| Western Digital WD_BLACK SN770M SSD Specs | |||
| Capability | 500 GB | 1 TB | 2 TB |
| Mannequin | WDS500G3X0G-00CHY0 | WDS100T3X0G-00CHY0 | WDS200T3X0G-00CHY0 |
| Controller | SanDisk | ||
| NAND Flash | ? | ||
| Kind-Issue, Interface | Single-Sided M.2-2230, PCIe 4.0 x4, NVMe 1.4 | ||
| DRAM | N/A | ||
| Sequential Learn | 5000 MB/s | 5150 MB/s | |
| Sequential Write | 4000 MB/s | 4900 MB/s | 4850 MB/s |
| Random Learn IOPS | 460K | 740K | 650K |
| Random Write IOPS | 800K | ||
| Avg. Energy Consumption | ? W | ? W | ? W |
| Max. Energy Consumption | ? W (R) ? W (W) |
? W (R) ? W (W) |
? W (R) ? W (W) |
| SLC Caching | Sure | ||
| TCG Opal Encryption | No | ||
| MTTF | 1.75M Hours | ||
| Guarantee | 5 years | ||
| Write Endurance | 300 TBW 0.33 DWPD |
600 TBW 0.33 DWPD |
1200 TBW 0.33 DWPD |
| MSRP | $74.99 | $109.99 | $219.99 |
Western Digital doesn’t disclose what particular controller is or NAND is utilized in most of their drives as of late. Notably, the corporate already gives an PCIe Gen 4 M.2-2230 drive for OEMs, the SN740, which lists the identical efficiency specs. So the SN770M may be a retail redress of the SN740. Which, given how well-liked the SN740 has been as an aftermarket improve for the Steam Deck, it is extra stunning that WD wasn’t already promoting a model of that drive within the retail market.
When it comes to storage capability, the WD_Black SN770M is on the market in 500 GB, 1 TB, and a couple of TB variants, mirroring what its bigger sibling gives. On condition that each the Asus ROG Ally and Valve’s Steam Deck ship with not more than 512 GB of storage, the 1 TB and a couple of TB choices current a considerable improve.
The 1TB mannequin, priced at $109.99, is on the market solely by means of Western Digital’s on-line retailer and Greatest Purchase. In distinction, the 2TB model is offered solely at Greatest Purchase for $219.99. At the moment, the five hundred GB mannequin is on the market for $74.99 from Western Digital’s on-line retailer, in addition to different e-tailers, retailers, and resellers. All these drives include Western Digital’s five-year restricted guarantee.
The M.2-2230 type issue was primarily developed for SSDs powering ultra-thin laptops, which generally do not demand top-tier efficiency. Whereas there are certainly high-performance SSDs with the M.2-2230 type issue, most aren’t designed for gaming methods. This makes it difficult for homeowners of transportable consoles just like the ROG Ally or Steam Deck to improve to a extra superior SSD. With the introduction of the WD_Black SN770M, Western Digital gives a retail answer tailor-made for avid gamers, mixing stable efficiency with gaming-centric options, a mix uncommon in M.2-2230 drives.
