Graphics card sag, or GPU sag, is one thing nearly everybody who’s ever owned a high-end graphics card has skilled. It’s that sinking feeling you get when your costly new GPU droops in its PCIExpress slot, testing the power of its mounts to maintain it in place. However even when it manages to take action, the long-term impact of GPU sag may be fairly dramatic, resulting in degradation and even failure.
Fortuitously, it’s simple to repair GPU sag. Should you act early, you’ve nothing to worry.
What’s GPU sag?

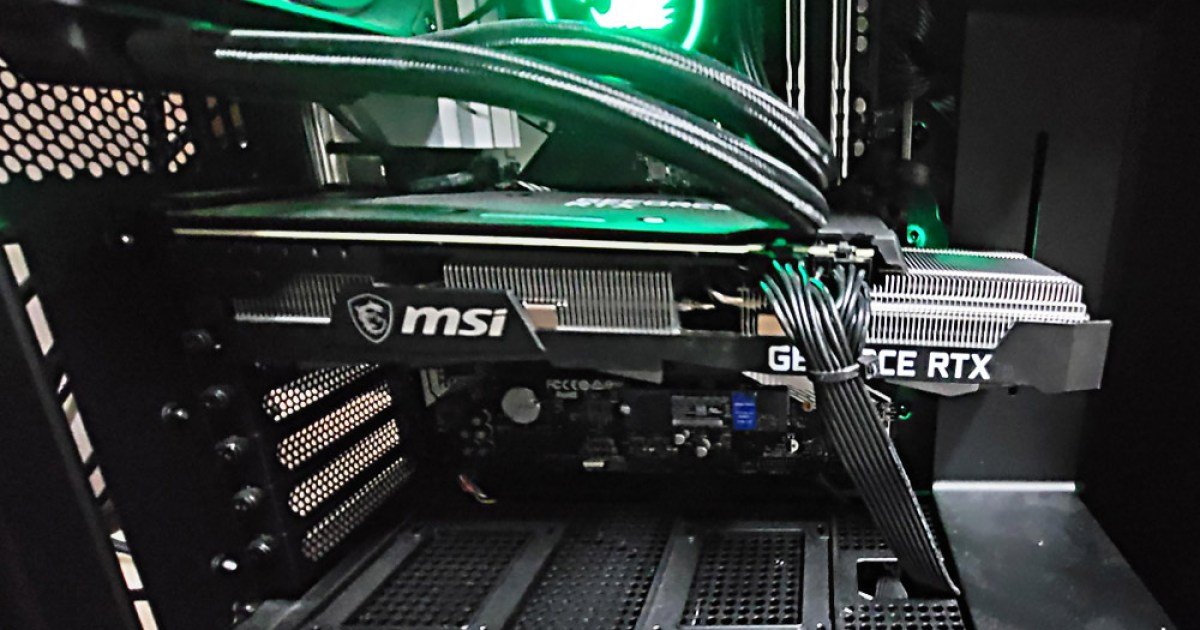

GPU sag is when a graphics card, sometimes a bigger, heavier one, can’t be totally supported by the PCIExpress slot and PCI Bracket. Fashionable graphics playing cards can usually carry massive coolers, which have vital weight to them — greater than these conventional mounting factors can adequately deal with. With the printed circuit board (PCB) unable to carry its rigidity, the board droops, or sags downwards on the prime nook with out direct help.
This isn’t essentially an issue within the quick time period — so long as the cardboard is within the slot totally, it ought to work simply wonderful. Nevertheless, there’s a purpose that many producers embody extra help brackets with significantly huge, heavy, and costly graphics playing cards: GPU sag can harm your GPU. YouTuber KrisFix-Germany reported in April that he had samples of Nvidia RTX 2080 Ti GPUs that now not work as a result of the reminiscence modules closest to the PCIExpress slot have broken connection factors. He famous failed solder joints on the PCB and oxidation on the reminiscence contacts.
He means that that is brought on by GPU sag, the place the harassed PCB flexes because it warms and cools all through use, ultimately damaging close by connections. Though he was in a position to repair this specific situation, it suggests GPU sag is an actual downside that has the potential to interrupt costly {hardware} that in any other case has loads of life left in it.
How do you repair GPU sag?
GPU sag is brought on by a GPU’s weight being inadequately supported, so the answer is so as to add extra help!
There are a number of methods you may enhance a GPU’s help. Sure circumstances have extra sturdy PCIExpress bracket designs, and lots of high-end motherboards have extra reinforcement (generally referred to as armor) across the PCIExpress slots.
One of the best ways so as to add extra GPU help, although, is beneath it on that prime nook. There are GPU help brackets designed particularly for this, just like the fancy-looking Cooler Grasp resolution above; many high-end GPUs include one within the field. Nevertheless, you don’t want to make use of a GPU help bracket. Something that’s sturdy sufficient to take the load and nonconductive might be completely wonderful. Lego bricks, a tupperware tub, or perhaps a rest room paper roll will do.
Another choice is to vary the mounting of the GPU. Vertical graphics card mounting is feasible in some circumstances, and there are growth kits that may make it viable in others. This includes connecting the GPU to a ribbon cable that then plugs into the PCIExpress slot, letting you mount the graphics card in a vertical (or alternate) orientation. Not combating in opposition to gravity, the cardboard can sit comfortably, sag-free.
