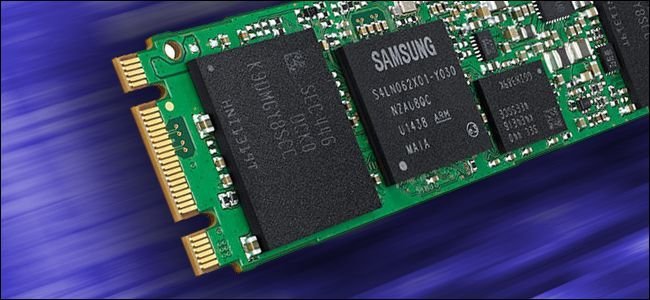

There is a new open format sweeping the world of efficiency PCs, and it is…effectively, sophisticated. The M.2 format is designed for producers to exchange quite a lot of particular units, do it in a tiny area, and require little or no energy. However really upgrading to an M.2 drive or accent requires slightly forethought.
The place Did M.2 Come From?
Previously often known as Subsequent Technology Kind Issue (NGFF), the M.2 format is technically a substitute for the mSATA customary, which was well-liked with producers of super-compact laptops and different small devices. That will appear stunning, since most M.2 drives bought at retail are supposed to be used in full-sized desktops, however M.2 has successfully changed mSATA onerous drives and SSDs in compact laptops like Apple’s MacBook or Dell’s XPS 13. They’re merely sealed throughout the our bodies and unable to be upgraded by most customers.
What Can It Do?
M.2 is extra than simply an evolutionary kind issue. Doubtlessly, it might supersede the entire growing older Serial ATA format altogether. M.2 is a slot that may interface with SATA 3.0 (the cable that is in all probability linked to your desktop PC’s storage drive proper now), PCI Categorical 3.0 (the default interface for graphics playing cards and different main enlargement units), and even USB 3.0.
Meaning that—potentially—any storage or disk drive, GPU or port enlargement, or low-power gadget that makes use of a USB connection, might all be mounted on a card plugged into the M.2 slot on the similar time. The fact is a bit more complicated—for instance, a single M.2 slot solely has 4 PCI Categorical lanes, 1 / 4 of the overall typically desired for graphics cards—but the pliability for this tiny little slot is spectacular.
When utilizing the PCI bus as a substitute of the SATA bus, M.2 units can switch knowledge at anyplace from 50% to roughly 650% sooner than customary SATA, relying on the capabilities of the motherboard and the M.2 card itself. When you’ve got the chance to make use of an M.2 SSD on a motherboard that helps PCI technology 3, it may be considerably sooner than an everyday SATA drive.
What Units Use The M.2 Slot?
In the intervening time, M.2 is primarily used as an interface for super-fast SSDs, each on laptops and desktops. For those who stroll into a pc ironmongery store and ask for an M.2 drive—assuming yow will discover a retail pc retailer nonetheless in operation, of course—they’ll virtually actually present you an SSD with an M.2 connector.
Some laptop computer designs additionally use an M.2 port as their technique of wi-fi connection, mounting tiny, low-powered playing cards that mix Wi-Fi and Bluetooth radios. That is much less frequent for desktops, the place the convenience of a USB dongle or PCIe 1x card is most well-liked (although there is not any purpose you could not do it on a appropriate motherboard).
Lastly, some firms are beginning to develop the usage of the slot into classes that do not broadly match storage or enlargement. Whereas nobody’s made an M.2 graphics card but, Intel is promoting its speed-boosting cache storage, “Optane,” in M.2 format for customers.
Does My Laptop Have an M.2 Slot?
In case your PC was made or assembled in the previous few years, it in all probability has an M.2 slot. Sadly, the pliability of the format signifies that really utilizing it is not so simple as simply plugging in a card.
M.2 playing cards include two main compatibility variables: size and key. The primary is pretty obvious—your pc must have sufficient bodily area to help the size of the cardboard you need to use. The second variable—how the cardboard is keyed—just means the cardboard connector should match the slot you may be plugging it into.
M.2 Size
For desktops, size is not usually an issue. Even a tiny Mini-ITX motherboard can simply make room for the utmost size M.2 PCB, which is 110 millimeters lengthy. Some playing cards are as quick as 30mm. You typically desire a card to be the scale supposed to be used by your motherboard producer, as an indentation on the top of the PCB permits for a small screw to carry it securely in place.
All M.2 drives use the identical width decided by the connection. The “dimension” is expressed within the following format; test for compatibility along with your laptop computer or motherboard when selecting one out:
- M.2 2230: 22 millimeters extensive by 30 millimeters lengthy.
- M.2 2242: 22 millimeters extensive by 42 millimeters lengthy.
- M.2 2260: 22 millimeters extensive by 60 millimeters lengthy.
- M.2 2280: 22 millimeters extensive by 80 millimeters lengthy.
- M.2 2210: 22 millimeters extensive by 110 millimeters lengthy.
Some motherboards are versatile, providing mounting holes for the retention screw at some or all of those intervals.
M.2 Key
Whereas the M.2 customary makes use of the identical 22 millimeter-wide slot for all playing cards, it isn’t essentially the very same slot. Since M.2 is designed for use with so many various sorts of units, it has some frustratingly similar-looking ports.
- B Key: makes use of a niche in the fitting aspect of the cardboard (left aspect of the host controller), with six pins to the fitting of the hole. This configuration helps PCIe x2 bus connections.
- M Key: makes use of a niche within the left aspect of the cardboard (proper aspect of the host controller), with 5 pins to the left of the hole. This configuration helps PCIe x4 bus connections for twice the info throughput.
- B+M Key: makes use of each of the above gaps, with 5 pins on the left aspect of the cardboard and 6 on the fitting. Due to the bodily design, B+M Key playing cards are restricted to PCIe x2 speeds.
M.2 playing cards with a B Key interface can solely match right into a B Key host slot, and likewise for M Key. However playing cards with a B+M Key design can slot in both a B or an M host slot, since they’ve gaps for each.
Verify your laptop computer or motherboard specification to see which one is supported. We advocate seeing the documentation as a substitute of “eyeballing” the slot, for the reason that two key requirements may be simply confused.
What Do I Must Set up an M.2 Card?
Not a lot. Most M.2 playing cards are SSDs and are mechanically acknowledged by your working system based mostly on AHCI drivers. For Home windows 10, most Wi-Fi and Bluetooth playing cards are mechanically acknowledged as effectively, with generic drivers activated instantly or particular drivers downloaded later. Nonetheless, chances are you’ll must allow the M.2 slot through a setting in your pc’s BIOS or UEFI. You will additionally desire a screwdriver to place within the retention screw.
Can I Add An M.2 Card if My PC Does not Have a Slot?
For laptops, the reply is no—the design of recent laptops is so compact that there is not any area for any form of non-planned enlargement. For those who use a desktop, you are in luck. There are many adapters on the market that use the PCIe x4 slot already in your motherboard. Nonetheless, in case your motherboard cannot boot from PCIe, then you definitely will not be capable of set that M.2 drive as your boot drive, which suggests you will not profit from quite a lot of the velocity. So hold that in mind—if you need the complete advantages of an M.2 drive, you may in all probability want a motherboard that helps it.
Picture supply: iFixIt, Intel, Kingston
