What the Pink Mild on a Motherboard Means

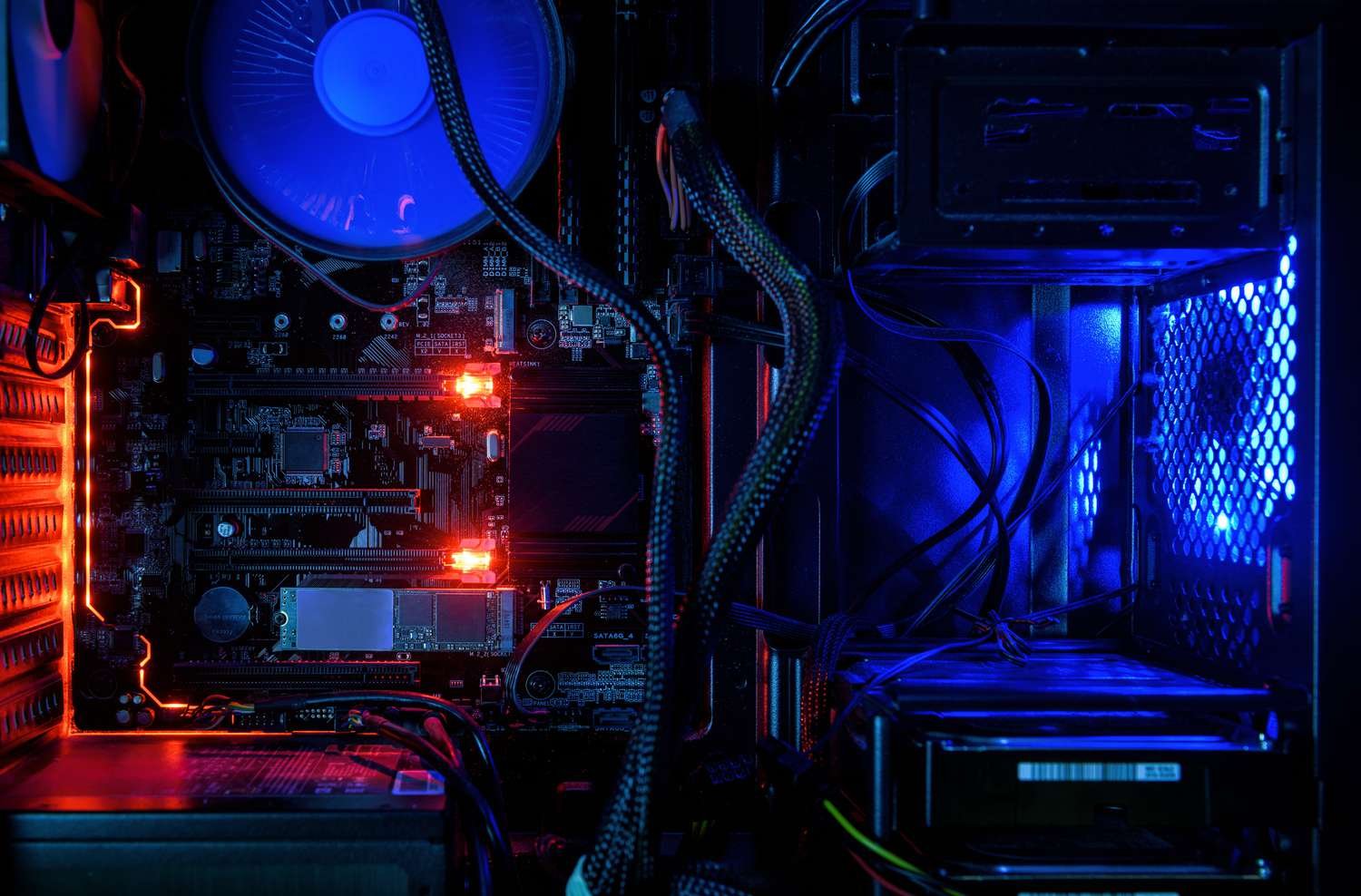

A purple gentle in your motherboard means inner {hardware} is both plugged-in incorrectly or not working.

• Inside {hardware} examples embody the CPU, RAM, or a graphics card.
• Generally a useless CMOS battery could be the perpetrator.
• Boot errors on the onerous drive the place the first OS is put in may additionally trigger a purple gentle.

The purple gentle at all times seems after the pc activates, however usually, it is not going to boot, enter the bios, or show content material on the monitor.

The precise error depends upon the motherboard and the place the purple gentle is. Some motherboard producers embody labels on the board to clarify what’s incorrect. Older motherboards might have a single, unlabeled purple LED, making it harder to discern what is going on on.

For those who can not inform what’s incorrect at a look (one thing’s not plugged in accurately, and many others.), you’ll be able to at all times check with the consumer handbook included together with your motherboard.

Find out how to Learn a Pink Mild on a Motherboard

Newer boards have 4 major indicators, and the purple gentle might be subsequent to every label. These are:

BOOT: A purple gentle close to the BOOT indicator means one thing is incorrect with the boot units, which might be the onerous drive. Extra particularly, it is the onerous drive the place the OS is saved.

VGA: A purple gentle close to the VGA or GPU indicator means the graphics card will not be detected or seated accurately.

DRAM: A purple gentle close to the DRAM indicator signifies that a RAM module will not be seated accurately. For those who can see that facet clamps on both facet of a RAM stick aren’t locked down, that is in all probability the problem.

CPU: A purple gentle close to this indicator means the motherboard doesn’t acknowledge the CPU, which may imply many issues. The CPU won’t be plugged in accurately, or one of many pins is bent. It may be the CPU fan will not be plugged in. Lastly, a useless CMOS battery may trigger the purple gentle to set off.

What Does a Pink Mild in CPU Point out?

Every motherboard LED tells you the place the issue is, however not essentially what it’s.

The purple gentle close to the CPU label signifies that one thing is incorrect with the processor, and it’s one of many extra frequent causes you’ll encounter the purple gentle.

Listed here are some the explanation why the CPU indicator would set off:

• It is probably not seated correctly, which might imply it’s not plugged in accurately or the pins are bent.
• It could additionally imply the motherboard’s energy cable will not be plugged in accurately.
• The CPU fan cable will not be plugged into the header all the best way.
• The CMOS battery is useless.
• The CPU you could have put in is flawed.

Find out how to Troubleshoot Pink Mild Errors on a Motherboard

These steps apply to all motherboard fashions, together with older boards with out labeled LED indicators.

1. Disconnect the affected {hardware} and reseat it to make sure it’s plugged in accurately. When you’ve got an older board, you’ll be able to skip this step.




2. Reset the bios of your motherboard. More often than not, it’s a jumper that you may brief (by plugging in a jumper). You have to the consumer handbook to your board for those who don’t know the steps to do that. You may also verify the official help web site of your motherboard’s producer. Alternatively, you’ll be able to take away the CMOS battery and go away it out for not less than 5 minutes.




3. Substitute the CMOS battery. A useless battery will set off a purple LED indicator, which might go away you pulling out your hair. It’s possible you’ll even contemplate making an attempt this primary earlier than anything.




4. If all else fails, disconnect and unplug all {hardware} beginning with the GPU, any onerous drives, the RAM, and the CPU. Examine the connectors and pins for harm or particles. Grime and dirt might construct up on an outdated motherboard which might trigger issues. You possibly can take away it by rigorously cleansing the connectors with a smooth pencil eraser. You must also take away all exterior peripherals, together with the mouse, keyboard, exterior drivers, printers, and ethernet cable.




5. One after the other, join the units to your laptop and take a look at booting it up. Essential {hardware} contains the CPU and RAM. When you’ve got a number of RAM modules, you’ll be able to go away one plugged in and the remaining disconnected. If the pc seems as well and there’s no purple gentle current, even when there isn’t any video, then it’s seemingly you’ve discovered the issue. Strive booting with out the GPU (graphics card) and a single stick of RAM.




6. For those who’ve checked all elements and the issue persists, the issue could also be both a faulty motherboard or a dying or faulty energy provide. In some circumstances, when the facility provide fails, it nonetheless provides energy to the motherboard and elements, and every part, together with the system followers, will activate, but the pc is not going to boot.




How Can You Inform if Your Motherboard Is Dying?

The easiest way to inform in case your motherboard is dying, or failing, is to observe the troubleshooting steps mentioned right here. Unplug all minor {hardware} from the board and attempt to boot with minimal connections.

If the pc nonetheless does not activate or POST, the board or the facility provide is probably going the perpetrator. As a rule, the facility provide is the issue. Nonetheless, for those who change the facility provide and the pc nonetheless does not boot, you already know it is the motherboard.

In uncommon circumstances, you might be able to detect harm on the board, together with burnt or faulty headers, transistors, and different elements. A board that has been killed by a static shock is not going to present any indicators of harm, nevertheless.

Why Does My Motherboard Have an Orange Mild?

An orange gentle, often stable, means energy is equipped to the motherboard, which is regular. Some motherboards might show a persistent orange gentle, whereas others is not going to.

The facility button might flash completely different colours with choose computer systems to point an issue. A stable orange gentle means there’s an issue with the motherboard, whereas a blinking orange gentle means there’s one thing incorrect with the facility provide.
