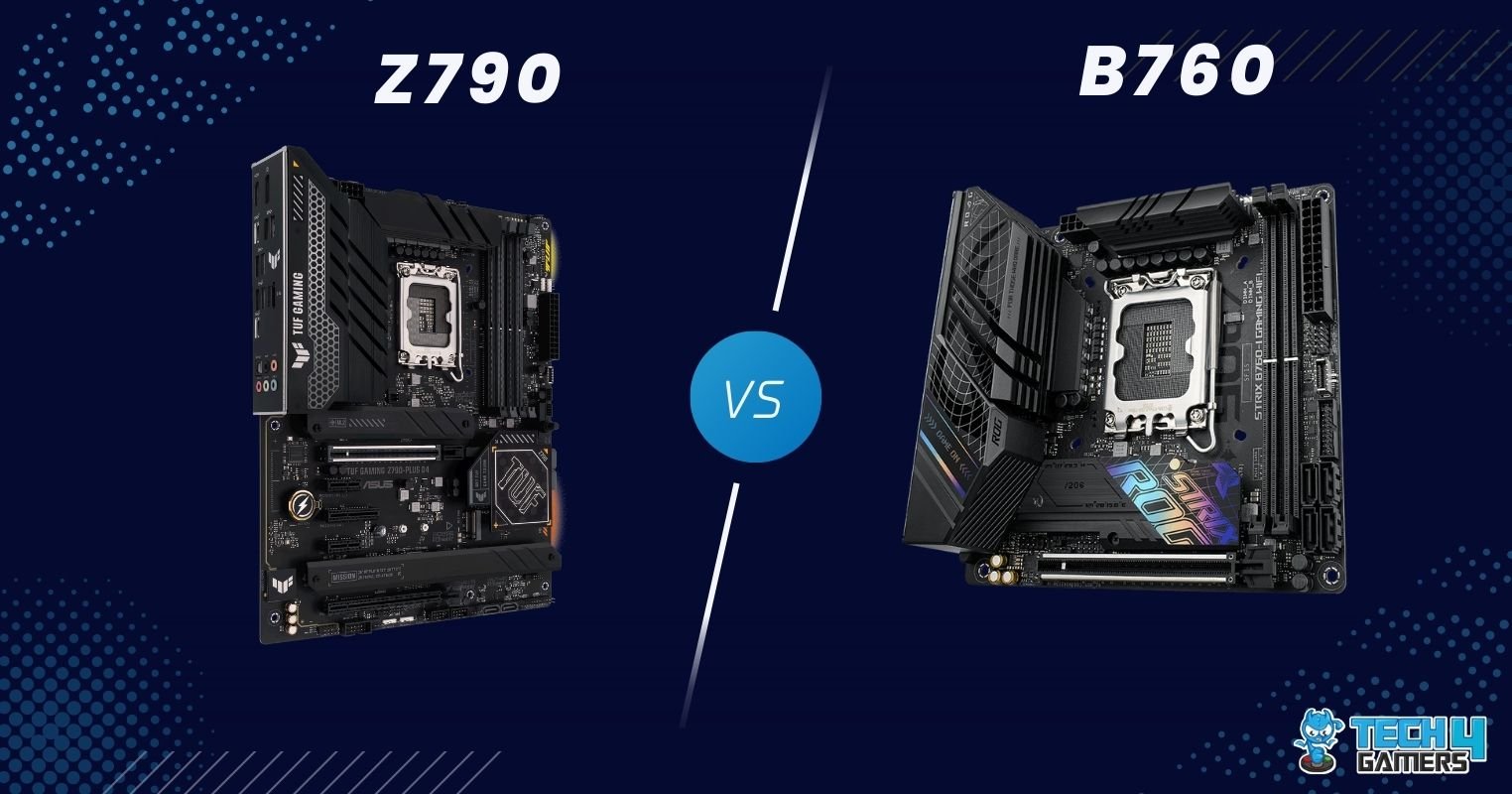

Intel’s Thirteenth-generation lineup has introduced us three new chipsets (thus far) as a substitute of the same old 4. These chipsets are Z790, H770, and B760. Our focus at present is on Z790 vs B760 as we decide which chipset is healthier on your subsequent Intel construct.
Key Takeaways
- The Z790 is a high-end chipset with a beginning value of ~$180whereas B760 is a mid-range chipset that prices $120 at minimal.
- CPU overclocking is just supported by Z790, and thus it’s a really perfect selection for overclockable Ok SKUs. B760 is the higher possibility for no-Ok twelfth or Thirteenth gen CPUs.
- By way of I/O connectivity, B760 will get half the bandwidth as Z790. Because of this, it helps half the variety of complete PCIe lanes (14) in comparison with Z790.
- Moreover, the Z790 can home twice as many SATA 3.0 ports (8) and extra high-speed USB ports.
Z790 Chipset
The Z790 chipset is a part of Intel’s high-end “Z” collection chipset lineup, which is normally the flagship chipset launched with every era. This chipset is targeted on intensive I/O assistCPU and reminiscence overclockingand higher VRMs for CPU overclocking. On the identical time, they have an inclination to have some premium options, resembling dual-BIOS and improved onboard cooling.
All these options and the I/O assist come at a price, although, as this chipset can value wherever from $180 to a number of hundred USD.
Additionally Learn: B550 Vs X570
B760 Chipset
As for Intel’s B760 chipset, that is the true mid-range chipset lineup. This chipset is normally finest suited to informal customers and people not trying to overclock (though reminiscence overclocking is supported on B560 and newer chipsets). The I/O assist on these motherboards is greater than sufficient for the common person, and thus it’s normally the chipset picked by most customers.
These motherboards are far more inexpensive, with a place to begin simply above $100, whereas the high-end choices can value near $200 or extra.
Comparability Desk
| Chipset | Z790 | B760 |
|---|---|---|
| Supporting Lineups | twelfth Gen, Thirteenth Gen | twelfth Gen, Thirteenth Gen |
| CPU Overclocking | Sure | No |
| Reminiscence Help | DDR4, DDR5 | DDR4, DDR5 |
| No. of DIMMS per Channel | 2 | 2 |
| Reminiscence Overclocking | Sure | Sure |
| No. of DMI 4.0 Lanes | 8 | 4 |
| PCIe Revisions | 3.0, 4.0 | 3.0, 4.0 |
| Whole no. of PCIe Lanes | 28 | 14 |
| No. of PCIe 3.0 Lanes | As much as 8 | As much as 4 |
| No. of PCIe 4.0 Lanes | As much as 20 | As much as 10 |
| USB Revisions | USB 3.2, USB 2.0 | USB 3.2, USB 2.0 |
| Whole No. of USB Ports | As much as 14 | As much as 12 |
| No. of USB 3.2 (20 Gb/s) Ports | As much as 5 | As much as 2 |
| No. of USB 3.2 (10 Gb/s) Ports | As much as 10 | As much as 4 |
| No. of USB 3.2 (5 Gb/s) Ports | As much as 10 | As much as 6 |
| No. of USB 2.0 Ports | As much as 14 | As much as 12 |
| SATA 3.0 (6.0 Gb/s) Ports | 4 | 8 |
| Wi-Fi Help | Wi-Fi 6E | Wi-Fi 6E |
| Intel Raid Configuration | 0,5,10 – SATA/PCIe | 0,5,10 – SATA |
| Supported CPU PCIe Configurations | 1×16 + 1×4 OR 2×8+1×4 | 1×16 + 1×4 |
| Package deal Measurement | 28mm x 25mm | 28mm x 25mm |
| Thermal Design Energy | 6 watts | 6 watts |
| Launch Date | September twenty seventh, 2022 | January third, 2022 |
| Chipset MSRP | $57 | $31 |
| Beginning Value of Motherboards (as of April 2023) |
$180 | ~$120 |
| Greatest Motherboards | Greatest Z790 Motherboards | Greatest B760 Motherboards |
Z790 vs B760 Comparability Desk
The 2 chipsets share a couple of options, like reminiscence assist, reminiscence overclockingand Wi-Fi 6E assist. Moreover, they each have the identical TDP at 6 watts. Now, let’s talk about the primary variations.
Additionally Examine: Z790 vs Z690
CPU Overclocking
The primary important distinction between the chipset is that the B760, as with earlier generations, doesn’t assist overclocking. Intel’s Turbo Enhance function continues to be an possibility if you wish to extract extra efficiency out of your CPU, although. Sure motherboards additionally allow you to overclock your CPU via BCLK overclocking.
As for the Z790 chipset, it helps CPU overclocking and was suitably launched with Intel’s overclockable “Ok” SKUs. The overclocking assist additionally brings higher high quality VRMsextra VRM phases, and improved VRM cooling.
DMI 4.0 Lanes (And PCIe Lanes)
Intel’s DMI (Direct Media Interface) is the interconnect between the CPU and the chipset. Each Z790 and B760 chipsets assist DMI 4.0, however B760 halves the variety of lanes (and thus the bandwidth) obtainable for I/O connections. That is why the Z790 chipset helps a better variety of I/O connectivity.
As B760 has half the bandwidth, it additionally helps half the variety of PCIe lanes in comparison with Z790. Notably, the Z790 helps as much as 20 PCIe 4.0 lanes and 8 PCIe 3.0 lanes – the B760 can accommodate as many as 10 PCIe 4.0 lanes and 4 PCIe 3.0 lanes.
USB Ports
The Z790 chipset sports activities (as much as) 5 USB 3.2 20 Gb/s ports, 10 USB 3.2 15 Gb/s ports, 10 USB 3.2 5 Gb/s ports, and 14 USB 2.0 ports. Compared, the B760 chipset can assist (as many as) 2 USB 3.2 20 Gb/s ports, 4 USB 3.2 15 Gb/s ports, 6 USB 3.2 5 Gb/s ports, and 12 USB 2.0 ports.
Additionally Learn: X670 Vs B650 Motherboards
In complete, the Z790 can home as much as 14 USB ports, whereas the B760 chipset can have 12 USB ports.
SATA 6.0 Gb/s Ports
The Z790 can assist a most of 8 SATA 3.0 ports for all of your storage and optical drives. Then again, the B760 chipset helps as much as 4 of those ports, which continues to be lots for many customers.
Intel RAID Configurations
In the case of RAID, the Z790 chipset helps this storage know-how on each PCIe and SATA drives. Nevertheless, for B760, the Intel RAID assist is restricted to solely SATA drives.
PCIe CPU Configurations
Concerning the PCIe lanes allowed via the CPU, the Z790 chipset, like its predecessor, continues to supply the choice of splitting the 16 PCIe into 2×8 lanes. This can be utilized for twin GPU configurations. The B760 solely permits the usual 1×16 configuration and the 1×4 lanes.
Z790 Vs B760: Which Chipset Is Appropriate For You?
Having mentioned the important thing options and variations between the 2 chipsets, let’s finalize which chipset would be the proper possibility.
Related Comparisons: Z590 vs B560
Why Select Z790
At first, it is best to go for the Z790 chipset when you have an overclockable “Ok” CPU, because it’s the one chipset that may allow you to overclock your CPU. Additionally, you may get a Z790 motherboard with 2×8 PCIe 5.0 lanes for those who plan on going for a dual-GPU PC setup. One other factor is that the Z790 chipset has far more I/O connectivity.
Thus, when you have a number of NVMe SSDS and/or high-speed USB units to attach, this chipset shall be your better option.
It additionally comes down as to whether you possibly can afford a Z790 chipset motherboard, as you’ll be trying to spend a minimum of $180 on one in every of these boards. It’s solely value going for a Ok SKU for those who can pair a Z-series motherboard with it. In any other case, it’s finest to settle with one other chipset.
Why Select B760
The B760 is the perfect chipset for the common person and, most significantly, a non-Ok Intel CPU person. It nonetheless offers loads of I/O choices together with as much as 2 NVMe SSDs, 4 SATA SSDs, and one PCIe 5.0 slot for even probably the most highly effective graphics card. It additionally offers loads of USB ports for all of your USB units.
This chipset offers the important options which can be sufficient for many customers and is far more inexpensive, beginning at $120. Nevertheless, some B760 boards can value upwards of $200, and it doesn’t make sensible sense to purchase such an costly B760 board for gimmicks resembling higher cooling and RGB.
Additionally Learn: Z690 vs H670 vs B660
After you’re carried out choosing the right chipset, you may as well verify our information on how to decide on a motherboard to interrupt down your preferences and select the most effective motherboard accordingly.
In any case, we hope that our Z790 vs B760 comparability cleared your confusion in regards to the two motherboards.
Professionals And Cons
| Chipset | Professionals | Cons |
|---|---|---|
| Z790 |
|
|
| B760 |
|
Ceaselessly Requested Questions
Can I overclock my CPU on a B760 motherboard?
No. CPU overclocking is just supported on the Z790 chipset. Nevertheless, you possibly can nonetheless use Intel’s Turbo Enhance or BCLK overclock to get extra efficiency out of your CPU.
Is the Z790 chipset higher than the B760 chipset?
The Z790 chipset is healthier as a result of it has extra bandwidth from the chipset for extra I/O connectivity. It additionally helps CPU overclocking.
Does the B760 chipset assist reminiscence overclocking?
Sure. The B760 chipset, like B660, permits you to overclock your RAM.
