MSI is getting ready to launch its model new Z790 MAX collection motherboards which is able to characteristic help for Intel’s 14th Gen Raptor Lake Refresh CPUs. Immediately, we’ve received full PCB breakdowns & unique footage of those motherboards.
MSI Z790 MAX Motherboards Are Intel 14th Gen CPU Prepared, Come With Model New Options Such As WiFI 7 and Upgraded PCB Designs
We received a pleasant have a look at MSI’s Z790 MAX motherboard lineup that includes 4 new merchandise in the course of the Computex showcase, the MEG ACE MAX, the MPG Carbon MAX WIFI, the MPG EDGE MAX WIFI, and the MAG Tomahawk MAX. As anticipated, the motherboards will likely be that includes full help for Intel’s 14th Gen Raptor Lake Refresh Desktop CPU lineup together with quicker DDR5 reminiscence. The VRMs may even be tuned to help the upper wattage that these chips devour together with higher heatsink designs to guarantee that the cooling is ample below probably the most annoying hundreds.
MSI MEG Z790 ACE MAX Motherboard
Beginning on the prime, we’ve the MSI MEG Z790 ACE MAX which comes with a 24-Section DUET Rail energy system with 105A SPS energy phases. The LGA 1700 socket is powered by twin 8-pin energy connectors whereas the 4 DDR5 DIMM slots supply as much as 7600 MT/s+ help with as much as 192 GB of capacities. The board options 5 M.2 slots, two PCIe x16 slots (wired x16 / x8) that are Gen 5 & one Gen 4 x8 slot. Whereas a lot of the I/O stays the identical, the 2 main options are WIFI 7 and 5.0 GbE LAN help.
MSI MPG Z790 Carbon Max WIFI Motherboard
Subsequent up within the lineup are the duo of MSI MPG MAX motherboards, the Z790 CARBON MAX WIFI, & the Z790 EDGE MAX WIFI. The Carbon Max is provided with a 19 Section Direct energy design with 105A SPS energy phases whereas the EDGE Max is provided with a 16 Section Mirrored Energy design & makes use of 90A SPS energy phases. The Carbon helps as much as DDR5-7600+ reminiscence whereas the Edge is able to supporting DDR5-7200+ reminiscence. The Carbon is available in a stealthy black design whereas the Edge comes with a creamy white shade theme. Each boards look nice and in addition characteristic WIFI 7 wire-less capabilities. The Carbon helps onboard 5 GbE LAN whereas the Edge helps 2.5 GbE LAN.
MSI MAG Z790 Tomahawk MAX WIFI Motherboard

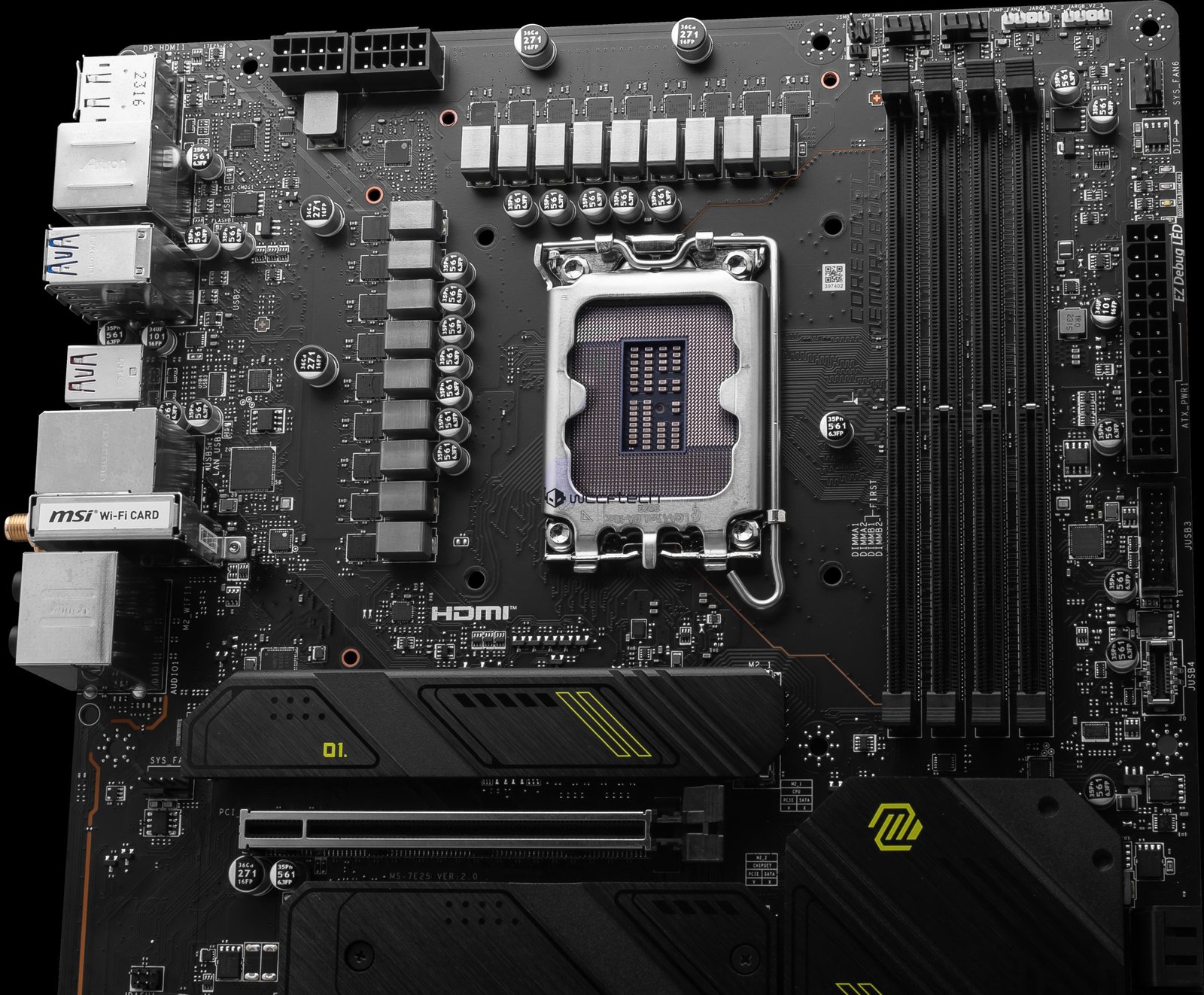

Lastly, we’ve the budget-friendly MSI MAG Z790 Tomahawk MAX WIFI which comes with a 16 Section VRM design with 90A SPS energy phases, as much as DDR5-7200+ reminiscence help, and WIFI 7 capabilities (with 2.5 GbE LAN). The motherboard comes with an attention-grabbing brushed black shade scheme with inexperienced accents which look nice.
As all the time, the MSI Tomahawk collection delivers distinctive capabilities in its worth bracket and can serve the mainstream audiences very well with an incredible set of options reminiscent of 4 M.2 slots with Protect Frozr expertise, 8 SATA III ports, two full-length PCIe slots and an enormous array of I/O which embrace two Sort-C ports on the again. The board additionally comes with twin 8-pin connectors to make sure the CPU will get probably the most energy for steady efficiency.
Whereas costs stay unknown for now, we count on them to be very near current Non-MAX MSI fashions and availability needs to be round subsequent month as we get nearer to the 14th Gen CPU launch. Anticipate extra particulars on MSI’s Z790 MAX motherboards within the coming months.
