A Many Core Introduction

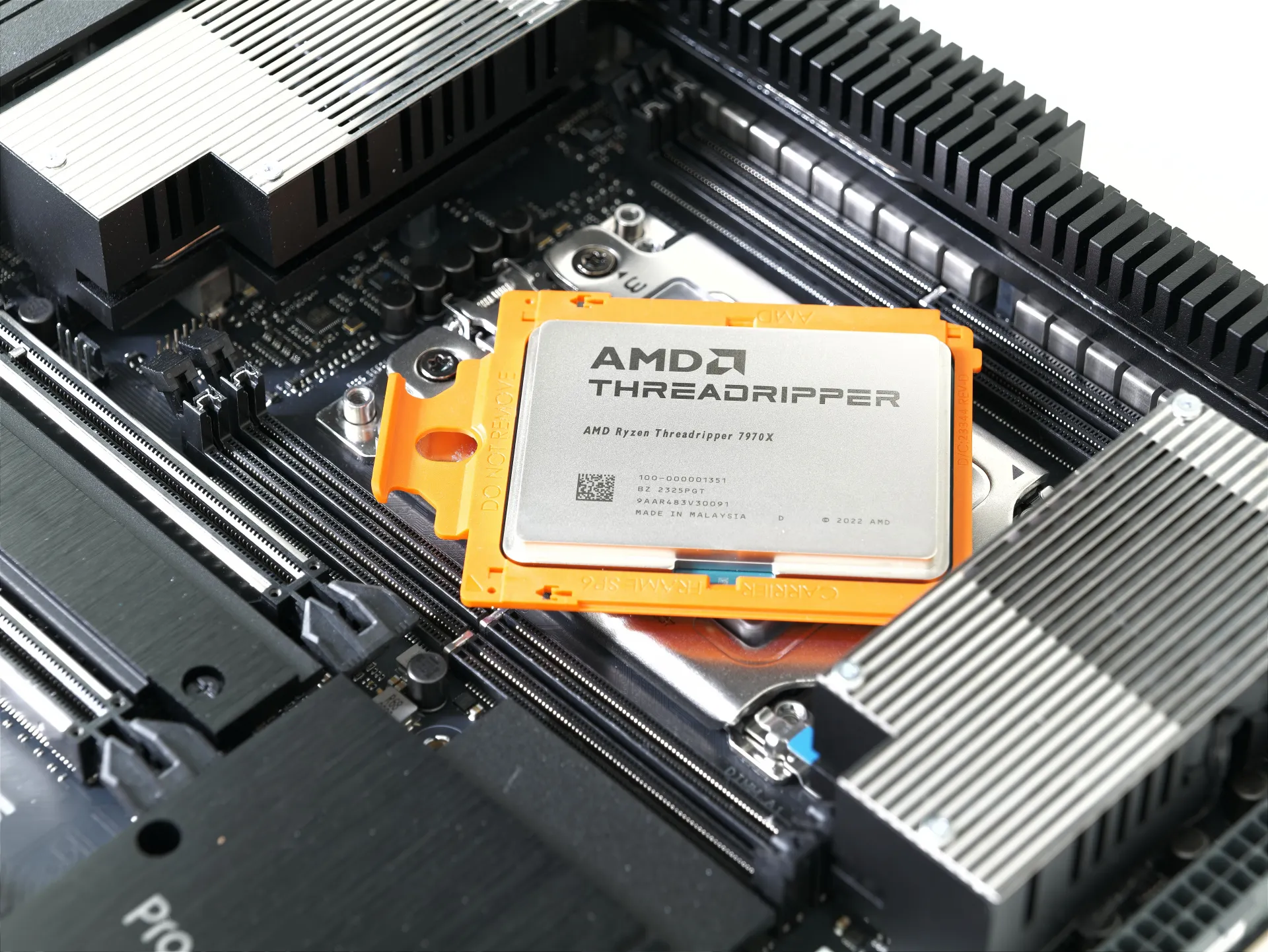

We analyse the Ryzen Threadripper 7000 sequence processors, on this assessment, we’ll take care of the 32-core/74-threaded Threadripper 7970X, paired with a TRX50 motherboard. We’ll have a look at multithreaded efficiency, however we is not going to draw back from recreation efficiency both.
We already examined the Ryzen Threadripper 7980 wich is 64-core primarily based on Zen4 (that is 128 threads thanks very a lot), on this assessment half that with a deal with the Ryzen Threadripper 7970 with its 32-cores. The AMD Ryzen Threadripper 7000 sequence has returned with a powerful presence, catering not solely to workstation necessities but additionally serving as a Excessive-Finish Desktop (HEDT) processor. AMD categorises its Threadripper processors into two distinct classes: one tailor-made for the Excessive-Finish Desktop (HEDT) market, using the AMD Socket TR5, and the opposite designed for the workstation sector, falling below the Threadripper PRO 7000WX sequence, which employs a variation of Socket SP5. Each classes embody a complete of seven processor fashions, all harnessing the facility of AMD’s newest “Zen 4” microarchitecture. Within the HEDT class using Socket TR5, the lineup consists of the Ryzen Threadripper 7960X, Threadripper 7970Xand Threadripper 7980X. The specs for the 7960X comprise 24 cores, 48 threads, a peak enhance frequency of 5.30 GHz, and a mixed cache of 152 MB (together with L2 and L3). The 7970X boasts 32 cores, 64 threads, the identical 5.30 GHz enhance frequency, and an elevated cache of 160 MB. Essentially the most superior amongst them, the 7980X, contains a exceptional 64 cores, 128 threads, a most enhance frequency of 5.10 GHz, and a considerable 320 MB cache. Every mannequin throughout the HEDT vary carries a Thermal Design Energy (TDP) ranking of 350W.
These processors will make the most of the brand new sTR5 socket, a shift from earlier socket varieties that had been the subject of a lot business chatter. The sequence incorporates each the PRO WRX90 chipset for enterprise purposes and the HEDT TRX50 chipset, which delineates the motherboard classes.
On the workstation spectrum, the 7000WX sequence is succeeding the 5000WX sequence, introducing the flagship 7995WX with 96 cores and 192 threads. This growth has led to the rebranding of the 64-core mannequin because the 7985WX. The sequence additionally showcases processors with 32, 24, 16, and 12 cores. efficiency increments stem from a 13% IPC uplift from Zen 4 over Zen 3, a person core frequency enhancement by 17%, and elevated cache sizes. The processors have a TDP set at 350 Watts, marking a 25% increment. Different options embody assist for 128 PCIe 5.0 lanes and the adoption of 8-channel RDIMM reminiscence, emphasizing DDR5 reminiscence with speeds reaching 5200MHz.
HEDT is again for customers (that may spare some cash)
For the overall shopper base, three fashions are offered: the 24-core Ryzen Threadripper 7960X, the 32-core 7970X, and the 64-core 7980X. Sure, AMD is about to introduce three new fashions inside its Threadripper 7000 sequence for high-end desktop (HEDT) platforms on November twenty first. These fashions will include 64, 32, and 24 cores respectively. Primarily based on their evaluation of the market’s necessities, AMD has opted towards providing variations with core counts smaller or bigger than these, as seen of their Professional division. Particularly, the desktop Threadripper will probably be made accessible with 8 chiplet CCDs, supporting as much as 64 cores. In distinction, the Professional model is designed with 12 CCDs, enabling a configuration of as much as 96 cores.
All these fashions preserve a 350W TDP. The PRO lineup mirrors this, with the inclusion of the top-tier 7995WX with 96 cores. A notable enhancement permits customers to combine a Professional chip on a consumer-grade motherboard with the TRX50 chipset, thus facilitating entry to the facility of 96 cores. But, integrating a consumer-grade CPU on a business-centric WRX90 motherboard shouldn’t be possible.
Each the Threadripper and Threadripper PROs allow overclocking for the CPU and RAM. PRO CPUs can interface with each PRO and HEDT platforms, whereas the usual Threadrippers are unique to the TRX50 platform, bypassing the WRX90. Deploying PRO CPUs on the HEDT platform introduces some constraints, similar to the shortage of ‘PRO Manageability’ attributes, a ceiling of 4-channel reminiscence, and a cap of 48 PCIe lanes. A noteworthy level is the anticipated cost-effectiveness of the TRX50 chipset-based motherboards compared to the WRX90 ones.
To bridge the distinction between mainstream {and professional} computing environments, and likewise to attain value efficiencies, modifications have been made in some specs. Particularly, there at the moment are 48 operational PCIe 5.0 lanes, and the storage interface incorporates 4 channels. These changes would result in extra economical motherboards, particularly when in comparison with the Professional options that assist eight channels and 128 PCIe lanes. In accordance with AMD, the value factors of those motherboards ought to stay considerably under the $1,000 mark.
Nonetheless, affordability is relative, significantly when contemplating the prices of the CPUs themselves. The three CPUs are priced as follows (US MSRP earlier than taxes):
- Ryzen Threadripper 7980X is priced at $4,999.
- Ryzen Threadripper 7970X is priced at $2,499.
- Ryzen Threadripper 7960X is priced at $1,499.
