AMD Zen 4 Ryzen 9 7950X and Ryzen 5 7600X Overview: Retaking The Excessive-Finish

Throughout AMD’s ‘collectively we advance_PCs’ occasion on the finish of August, the corporate unveiled its Ryzen 7000 sequence of desktop processors, with 4 SKUs aimed on the mid-range and high-end market segments. After whetting the viewers’s appetites with that announcement, tomorrow AMD will likely be formally releasing their long-awaited next-generation CPUs.

The launch of the Ryzen 7000 sequence brings so much to digest, for informal followers and hardcore {hardware} fans alike. For his or her latest lineup of chips, AMD has given their desktop CPU platform a top-to-bottom replace, not solely releasing new CPUs, however releasing a wholly new platform, socket AM5 round it. Consequently, for the primary time in a number of generations these chips usually are not drop-in appropriate with present AMD motherboards. However on the identical time it has allowed AMD to ship on a set of platform enhancements, starting from DDR5 and PCIe 5.0 help to improved energy administration capabilities. AMD has even managed to sneak an entry-level Radeon RDNA2 architecture-based iGPU into the chip.

The Ryzen 9 7950X: 16 Cores, 32 Threads, New 170 W TDP: $699

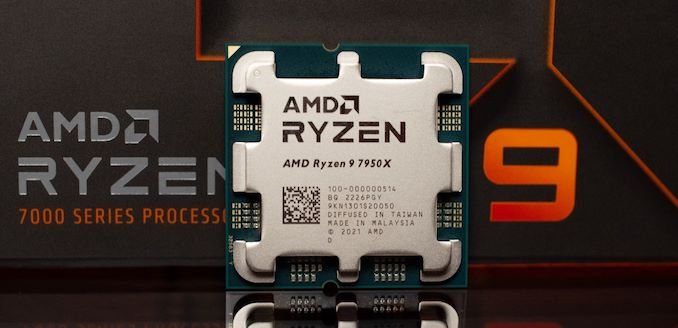

We’ll begin, as all the time, with the CPUs themselves. AMD’s flagship for this era is the Ryzen 9 7950X, a 16 Zen 4 core CPU that AMD is trying to high the charts with for each single-threaded and multi-threaded workloads. The Ryzen 9 7950X has a base frequency of 4.5 GHz and a peak turbo clockspeed of 5.7 GHz, which makes it the very best clocked desktop x86 CPU to hit the market but.

However do not assume AMD’s Zen 4 structure is nearly clockspeeds. AMD has additionally improved the IPC of their CPU structure by a median of 13% – primarily counting on the addition of AVX-512 instruction help and comfortably bigger caches and buffers all through the CPU – which signifies that the Ryzen 7000 chips can ship some vital efficiency enhancements in a wide range of single-threaded workloads.

As for multi-threaded workloads, AMD has been in a position to enhance efficiency there as properly, albeit with a reliance on each structure enhancements and better TDPs to permit for greater sustained clockspeeds. One of many enabling components right here is that the AM5 platform permits for greater chip TDPs – as much as 170W within the case of the 7950X – which is a few 65W greater than the max TDPs on AMD’s quickest 16 core Ryzen 5000 components. Consequently AMD is in a very good place to ship on the “management” class efficiency that the corporate is after, however not totally free of charge.

The Ryzen 9 7900X, Ryzen 7 7700X, and Ryzen 5 7600X

Shifting one down the stack is the Ryzen 9 7900X, which is a 12C/24T and 170W TDP half; it has the next base frequency than the 7950X of 4.7 GHz, however with a barely decrease increase frequency of as much as 5.6 GHz.

Beneath that, AMD has launched one Ryzen 7 half designed for mid-range desktop computing, the Ryzen 7 7700X. That is an 8C/16T SKU, with a lift frequency on a single core of as much as 5.4 GHz, and a base frequency of 4.5 GHz. Notably, in contrast to the Ryzen 9 components, this half has a extra typical-for-AMD TDP of 105W.

Lastly, additionally aimed on the mid-range market and the most affordable member of AMD’s new product stack, we now have the Ryzen 5 7600X. Providing 6C/12T with a TDP of 105W, the 7600X is Zen 4 at a extra affordable worth level. The chip runs at a base frequency of 4.7 GHz, with a modest (in comparison with Ryzen 9) increase frequency on a single core of 5.3 GHz.

Evaluating apples to apples, so to talk, between the brand new Ryzen 7000 sequence components to the previous-generation Ryzen 5000 sequence components, Ryzen 7000 has made some massive general enhancements to the chips’ capabilities. All the Ryzen 7000 chips provide vital will increase in each base and increase frequencies, which bodes properly for general efficiency. The worst we are able to say is that AMD hasn’t elevated their core counts at any worth level/market phase, so the entire efficiency positive aspects we’ll see right here right this moment are totally from structure and clockspeeds, moderately than the extra instant MT positive aspects of throwing extra silicon on the matter.

AMD’s efficiency positive aspects have been made potential partially by the Zen 4 structure’s superior energy effectivity. Whereas the Zen 4 structure is modest refinement of Zen 3, delivering a 13% IPC enchancment, it additionally will get the massive benefit of being produced on TSMC’s 5 nm course of node, a full node’s shrink from the TSMC 7nm course of that was used for Ryzen 5000/3000. This effectivity has allowed AMD to spice up clockspeeds with out breaking the ability financial institution, with the 105W TDP 7700X seeing a 700MHz enchancment for no change in TDP. And multi-threaded efficiency shouldn’t be omitted within the chilly, both; by growing their high TDP to 170W, AMD is ready to maintain the CPU cores on their 12C and 16C components at greater sustained turbo clocks, delivering significantly better efficiency there as properly.

After all one of many key arguments right here is that extra energy requires extra cooling, which could be very a lot true for the Ryzen 7000 sequence. Ryzen 7000’s TjMax for its Precision Enhance Overdrive expertise stands at 95°C, which signifies that the CPU will use the entire obtainable thermal headroom proper as much as that time with a view to maximize efficiency.

Though this may be overridden when manually overclocking, none the much less the top-end Ryzen 7000 chips name for higher cooling than their Ryzen 5000 counterparts. Customers might want to make use of extra premium and aggressive coolers to squeeze each final drop of efficiency from Zen 4, as most of us are wont to do. AMD for his or her half has accounted for all of this with their design decisions and product advertising and marketing, clearly advising Ryzen 9 79×0 homeowners to make use of a liquid cooler with these chips. Nonetheless, this does imply that AMD shouldn’t be bundling their very own CPU coolers with their retail SKUs, as a substitute directing consumers to pretty highly effective third-party coolers.

New AM5 Socket: AM4 Coolers will Help AM5 Too

AMD has additionally transitioned to a brand new platform for Ryzen 7000, named AM5. Together with AM5 additionally comes a brand new socket, the titular socket AM5, a LGA-1718 socket that’s AMD’s first use of the LGA type issue for mainstream desktop CPUs. Now what’s fascinating is AMD has specified that almost all AM4 coolers will help the brand new AM5 socket, which is nice for preserving compatibility with present coolers.

This additionally signifies that AM4 is slowly on its approach to changing into a factor of the previous. Whereas AMD remains to be (many) months away from changing their full Ryzen 4000/5000 stack with Ryzen 7000 components, right this moment is the primary day and step one to doing so. None the much less, AM4 does provide some unbelievable offers proper now (e.g. 5800X3D), in addition to help for cheaper DDR4 reminiscence. This sits in distinction to the AM5 platform, which is totally DDR5-only. Although in relation to reminiscence AMD does have a small benefit over Intel; whereas Intel’s twelfth Gen Core chips solely help a most (JEDEC) velocity of DDR5-4800, the Ryzen 7000 chips are formally rated for DDR5-5200.

To go together with the brand new AM5 platform and supply motherboards for his or her new CPUs, AMD has unveiled 4(ish) new chipsets. These are the B650 and X670, in addition to their “Excessive” variations, the B650E and X670E. The highest-end X670E sequence will function each PCIe 5.0 lanes to the highest PEG slot and help for PCIe 5.0 NVMe storage units. The common X670 chipset, however, foregoes the necessary PCIe 5.0 speeds for the PEG slot in favor of easier-to-implement PCIe 4.0. In both case, each variations of X670 are supposed to supply a plethora of I/O choices, and consistent with the overall tiered construction of AMD’s AM5 chipsets, X670 boards will usually provide higher designs, higher controllers, and higher specs.

The B650 chipsets, in the meantime, are designed to be extra reasonably priced, casting off a few of the I/O lanes and general I/O flexibility the X670 chipsets get pleasure from. Just like the Excessive X670, the B650E is meant for boards that can provide PCIe 5.0 to the PEG slot and NVMe storage. In any other case, the lowest-tier B650 chipset dials that again to PCIe 4.0 for the PEG slot as properly.

For this week’s launch, solely the X670/X670E boards will likely be obtainable. Consumers on the lookout for the cheaper B650/B650E boards might want to maintain out till October.

New I/O Die: TSMC 6nm For Ryzen 7000

Final, as has been the case for the final couple of Ryzen desktop generations, for the Ryzen 7000 sequence AMD is developing their CPUs out of chiplets. All Ryzen 7000 desktop chips are constructed from an I/O Die (IOD) in addition to both one or two core advanced dies (CCDs) relying on the SKU. The IOD hosts the entire PCIe 5.0 lanes, the DDR5 built-in reminiscence controller (IMC), and new for Ryzen 7000, an built-in GPU primarily based on AMD’s Radeon RDNA2 GPU structure. All issues thought of, the IOD used for the Ryzen 7000 is a fairly vital overhaul in comparison with AMD’s earlier IOD, with AMD implementing a number of new efficiency and power-saving options, in addition to additional reducing down on energy consumption due to TSMC’s 6nm course of.

It’s time to dive deep into all of AMD’s new enhancements and adjustments for its Zen 4 microarchitecture. Over the next pages we’ll, be going over the next:

1. Ryzen 7000 Overview: Evaluating Ryzen 7000 to Ryzen 5000 specs
2. Socket AM5: The New Platform For Client AMD
3. Extra I/O For AM5: PCIe 5, Extra PCIe Lanes, & Extra Shows
4. AM5 Chipsets: X670 and B650, Constructed by ASMedia
5. DDR5 & AMD EXPO Reminiscence: Reminiscence Overclocking, AMD’s Manner
6. Ryzen 7000 I/O Die: TSMC & Built-in Graphics at Final
7. Zen 4 Structure: Energy Effectivity, Efficiency, & New Directions
8. Zen 4 Execution Pipeline: Acquainted Pipes With Extra Caching
9. Check Mattress and Setup
10. Core-to-Core Latency
11. SPEC2017 Single-Threaded Outcomes
12. SPEC2017 Multi-Threaded Outcomes
13. CPU Benchmark Efficiency: Energy, Internet, & Science
14. CPU Benchmark Efficiency: Simulation and Encoding
15. CPU Benchmark Efficiency: Rendering
16. CPU Benchmark Efficiency: Legacy Exams
17. Gaming Efficiency: 720p and Decrease
18. Gaming Efficiency: 1080p
19. Gaming Efficiency: 4K
20. Conclusion
