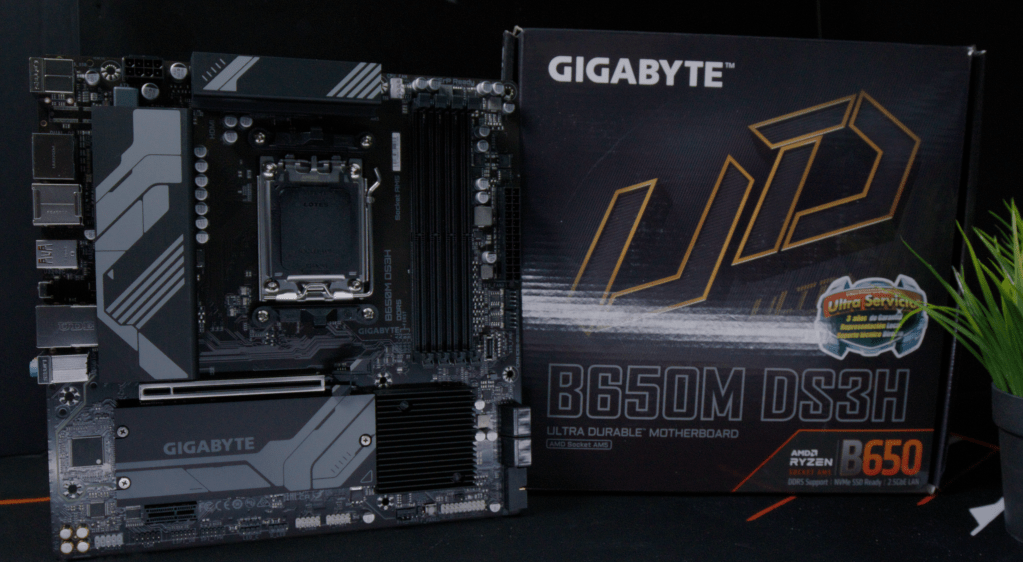

Gigabye B650M DS3H assessment: Step as much as an AM5 motherboard, affordably

AMD’s AM5 platform is maturing proper on schedule, bringing with that some cheaper pricing. Whereas preliminary larger platform bills saved motherboard prices larger on common for early adopters, the pattern is bettering.

Right here we now have one of the inexpensive motherboards but for AM5 — Gigabyte’s B650 DS3H. Coming in at $149, it’s a smaller microATX motherboard, however nonetheless one that permits you to to step into the next-generation AM5. Utilizing the B650 chipset permits for some prices financial savings over the costlier X670. With DDR5 commonplace and bundled with a set of primary options, are there any severe compromises right here? (Bear in mind, the AMD A620 chipset would be the true price range possibility — and that can definitely include extra compromises.)

We’ll go over the options, design, and efficiency. Holding cautious tabs on its engaging pricing, we’ll see if consumers can nonetheless get that next-generation really feel, however “on a budget.” Coupled with a bigger than ever choice of Ryzen 7000 CPUs which might be usually on sale now, it could be a very good path for these wanting to maintain prices underneath management. Its small measurement, albeit area of interest, makes this an much more attention-grabbing alternative for compact PC circumstances, besides. Let’s see the small print!

Additional studying: See our roundup of one of the best small gaming motherboards to find out about competing merchandise.

What are the Gigabyte B650M DS3H’s specs?

Thiago Trevisan

• microATX kind issue (243.84 x 243.84mm)
• Helps AMD AM5 Ryzen 7000 CPUs
• 6+2+1 Phases Digital VRM
• DDR5 RAM, dual-channel as much as 4 DIMMs (as much as 128Gb)
• 2x onboard M.2 slots (PCIe Gen 4)
• 1x PCIe 16x slot (PCIe Gen 4)
• 1x PCIe X1 slot (PCIe Gen 3)
• HDMI 2.1 and 2x DisplayPort out
• 8 USB ports on again (Together with USB C)
• PS/2 port for legacy peripherals
• Realtek 2.5GbE LAN
• RGB header
• 4 SATA 6Gb/s ports
• 4 PWM fan headers
• Realtek 7.1 Audio
• MSRP $149

What’s lacking from the B650 chipset?

The B650 chipset is trimmed down from B650E and X670E. To hit these cheaper costs, you’ll have entry to fewer SATA ports, USB ports, and no PCIe Gen 5 — to not point out the constraints inherent to the B650M’s smaller microATX kind issue. You’ll solely get PCIe Gen 4, and never 5 right here. That’s positive for many customers — we will hardly saturate these lanes as is at the moment.

What’s the Gigabyte B650M’s CPU alternative?

B650 AM5 offers you entry to any present Ryzen 7000 CPU, from the unique ones such because the Ryzen 5 7600X, to latest non-X variants such because the Ryzen 9 7900, to even the quick Ryzen 7 7800X3D. You could need to keep away from a number of the heavy brawler CPUs such because the Ryzen 9 7950X as a consequence of VRMs and cooling concerns. It doesn’t make sense to pair a premium CPU with this class of this motherboard. It’s a greater match with one thing like a 7600X or non-X, lower-wattage CPU just like the Ryzen 7 7700. The latter will even include the AMD Wraith Cooler, providing you with good bang to your buck. Understand that microATX will often enable for much less radiator area in sure circumstances, so that you’ll need to get one thing environment friendly for a smaller construct.

Thiago Trevisan

Does the Gigabyte B650M have DDR5 RAM and PCIe Gen 4?

AM5 is DDR5 RAM solely, and costs are sometimes higher now as extra time has handed since its launch. You’ll get 4 RAM slots, which is healthier than the 2 slots that smaller Mini-ITX motherboards provide, and on par with ATX motherboards.

Being B650, you’re not having access to PCIe Gen 5, however you can see PCIe Gen 4 in each the 16x slot and the 2 onboard NVMe slots. Solely B650E or X670E will give you extra PCIe lanes (and PCIe Gen 5 for that matter) — however at $149, we’re not complaining.

You additionally get an extra Gen 3 1x slot — which is one other benefit over Mini-ITX motherboards, and good for customers who want that further add-in card slot.

What storage does the Gigabyte B650M have?

You’re getting two NVMe PCIe Gen 4 slots onboard, which is affordable for this measurement motherboard. These ought to suffice for many customers, and speeds might be a lot quick, too. For individuals who want extra, you do have entry to 4 SATA ports for extra drives. Total, storage choices are good right here for the worth.

What USB ports does the Gigabyte B650M have?

There are eight rear USB ports, together with 1x USB-C, so the amount is nice for microATX. You do get 4 of them as USB 2.0, with the remaining 3.0. For this value class, that’s positive — we’ve even seen USB 2.0 on costlier motherboards such because the Asrock B650M PG-ITX.

Apparently, you’ll additionally get a relic — a PS/2 port for legacy peripherals. In case you’re glad, you realize precisely what to make use of it for. You probably have no thought what it’s for, don’t fear, and transfer on!

Twin DisplayPort and HDMI 2.1 additionally assist with Ryzen 7000 CPUs, which have built-in iGPUs. It’s uncommon to have so many display-out choices, so Gigabyte definitely intends for simply the fitting person to match this with their wants.

How is the Gigabyte B650M’s networking?

You get Realtek 2.5GbE Lan, which is commonplace on motherboards these days. Disappointingly, you gained’t get Wi-Fi onboard. This generally is a essential deal breaker for many individuals who increasingly depend on a stable Wi-Fi connection. Positive, you’ll be able to simply purchase a separate USB and even PCIe dongle, but it surely’s an added value. We’d wish to see Wi-Fi right here commonplace.

How is the Gigabyte B650M’s audio?

Audio is okay right here, with three inputs on the again. For this value, it’s ample — and those that want higher sound will need to add an exterior gadget or sound card.

What’s included within the Gigabyte B650M’s field?

Thiago Trevisan

The unboxing expertise is straightforward — not a lot right here apart from a couple of M.2 screws and SATA cables. You do get the I/O defend — which isn’t built-in like on many motherboards this technology. No Wi-Fi antenna right here both — as a result of there’s no Wi-Fi onboard.

Different options of observe

The fast launch perform of the GPU is sweet to have, together with “Q Flash Plus,” which helps you to replace the BIOS with out a CPU. You additionally get a reset button on the again. You additionally get 4 PWM fan ports, which is ample for a small construct.

Some options which might be lacking ought to be famous — comparable to the shortage of Wi-Fi, which can influence many customers. The I/O defend can also be not built-in — a function that almost all motherboards appear to have this technology. We are able to perceive, nonetheless, as a result of cheaper value.

Gigabyte B650M DS3H format and design

Thiago Trevisan

The Gigabyte B650M DS3H has an apparent design attribute that’s arduous to disregard: measurement! It’s a microATX motherboard, which means you’ll be able to jam it into smaller enclosures than commonplace ATX. It additionally could have extra ports and slots in comparison with the even tinier Mini-ITX — a promoting level for a lot of PC builders.

Aesthetically, how does it deal with this smaller measurement? For the $149 value, the construct high quality is sweet. A lot of the necessary surfaces on the motherboard really feel nice and are effectively represented and lined all through. For instance, you have got the neat monochromatic colour scheme on each the I/O shroud space and PCIe slot space. Good protection right here makes the motherboard appear extra premium and doesn’t give away its price range standing. The M.2 slots are additionally lined by this “Thermal Guard.”

Thiago Trevisan

You don’t get an built-in I/O defend, which is comprehensible however barely disappointing. It looks like many AM5 motherboards are together with this, and it’s a pleasant little function for PC builders. Not having one makes the I/O rear space extra uncovered than you’d wish to see aesthetically, till it’s tucked away in a small construct. Hopefully you gained’t overlook to place the I/O defend in place earlier than putting in the motherboard!

There’s no RGB gentle present going on this motherboard, however you’ll get RGB headers. That is positive — many motherboards with RGB and fancy OLED shows additionally value considerably extra.

Thiago Trevisan

Across the again, it’s commonplace motherboard fare. Total, the design of the motherboard right here could be very becoming for the worth it is available in at. Positive, we’d wish to see an built-in I/O defend, however we’re glad that the entrance of the motherboard seems to be pleasing and never bare-bones. It’s additionally constructed comparatively effectively, just like pricier choices.

Gigabyte B650M DS3H BIOS and software program

For individuals who like tinkering, the Gigabyte BIOS does offer you some choices for adjusting your system parameters. There’s a very good probability should you’re operating a typical Ryzen CPU comparable to a Ryzen 7 7700 you’ll not often go to the BIOS (because you’re not overclocking). It’s nonetheless a pleasant place to be acquainted with, for setting DDR5 Expo profiles or boot settings.

Gigabyte

Gigabyte additionally presents its software program suite: Gigabyte Management Heart. Like many motherboard manufactures, Gigabyte consolidates varied utility software program packages into one unit. This makes issues like adjusting fan profiles, altering RGB themes, and even driver updates simpler. Whereas we sometimes nonetheless advocate some “old style” strategies of driver updates and fan management, it’s good to see some software program enhancements this technology. (Earlier choices consisted of varied separate software program downloads that every did totally different, usually complicated, issues).

Total, for $149 you’re getting competent efficiency for the brand new technology of AMD Ryzen CPUs. It’s additionally true of the accompanying technological enhancements comparable to DDR5. Whilst you’re not getting high efficiency and overclocking — you’re additionally not paying high greenback. It’s a good compromise.

Do you have to purchase the Gigabyte B650M DS3H?

The Gigabyte B650M DS3H comes with a couple of distinctive factors of curiosity. First, its $149 value makes it one of many better-priced choices we’ve seen up to now on the B650 chipset for the newer AM5 Ryzen CPUs. You’d should go decrease into the A620 chipset to see some higher offers, at the price of much less options. It is also a microATX motherboard, a distinct segment market. This could both be a optimistic or destructive for some, relying in your PC construct goal.

It does put up “as anticipated” efficiency with most Ryzen CPUs, making a greater pairing with the extra inexpensive choices. It has adequate VRMs, and assist for DDR5 and PCIe Gen 4.

It’s lacking a couple of key objects, nonetheless. Main of which is Wi-Fi — which generally is a essential level for some customers. Including a third-party answer is feasible, however that additionally negates the associated fee financial savings right here. You do get 2.5Gb Ethernet, so that you’re lined there. The dearth of an built-in I/O defend is a minor quibble. However we’d identical to to see it in all boards come — as many have completed so already for AM5. (See our assessment of the MSI MAG B650M Mortar WiFi, the place fewer contains are made on this microATX board however for a barely larger value.)

Total, it’s a very good possibility for $149 should you can stay with a couple of of these compromises, and don’t want extra options. A bigger ATX motherboard could offer you extra PCIe slots, higher USB ports, and extra SATA ports, however a small value enhance. In any other case, it’s a properly design motherboard that’s amongst the most cost effective we’ve seen for B650, and retains most options intact.
