MSI MEG Z790 ACE MAX evaluation

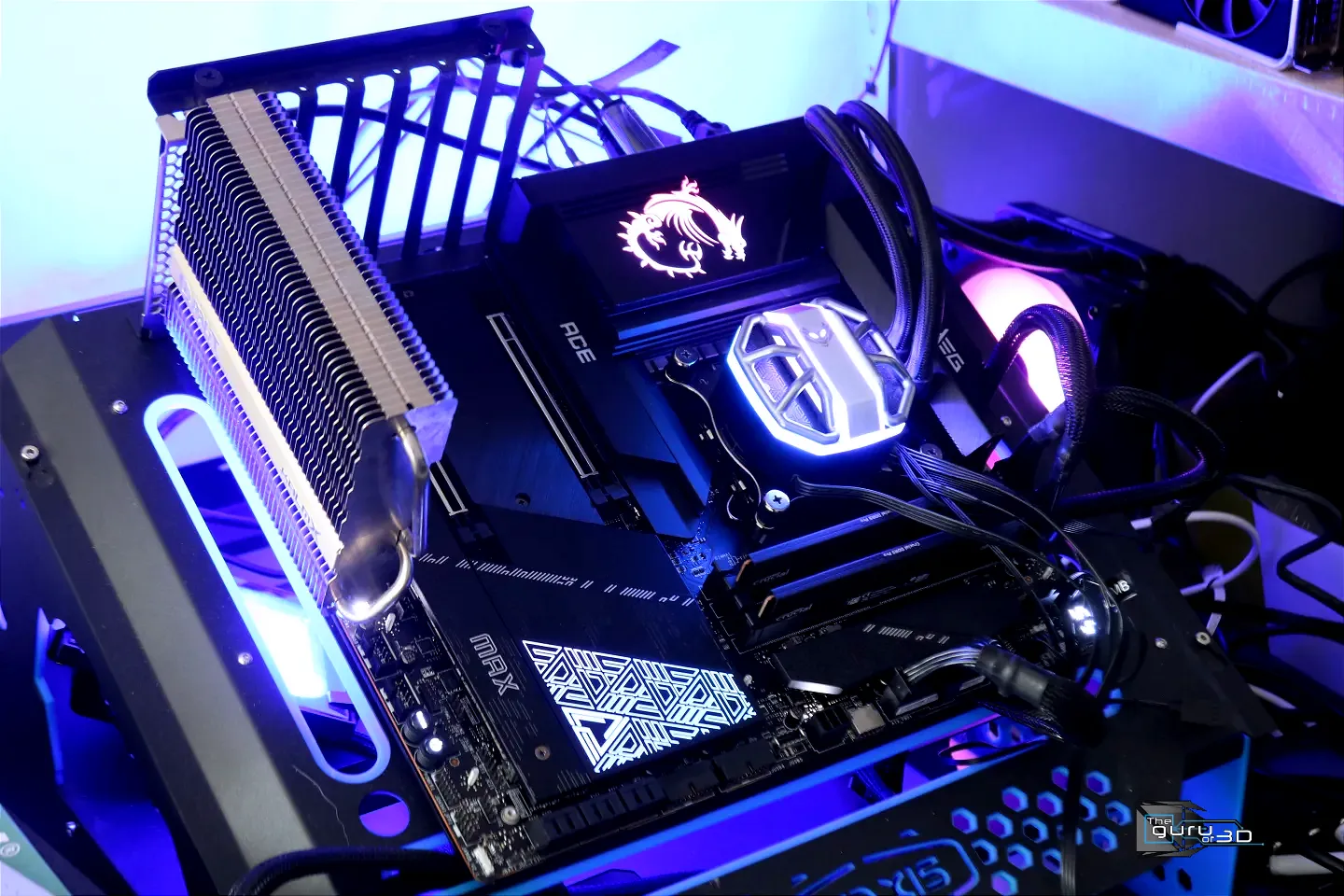

MSI’s ACE of Spades is again, this time in a MAX revision. Following the discharge of the Raptor Lake refresh processors, MSI has up to date their motherboard lineup with the MSI MEG Z790 ACE MAX. This motherboard, designed for the Z790 platform, integrates a 24+1 VRM design, PCI Specific 5.0 lanes, and a number of M.2 slots appropriate with each PCIe Gen4 and Gen5. Moreover, it incorporates twin 2.5 GigE ports and WIFI7 connectivity. The MEG Z790 ACE MAX motherboard is characterised by its glossy darkish black end accented with gold. It is engineered to harness the capabilities of Intel’s 14th Gen Core processor. That is achieved by superior {hardware} help, together with a 24 + 1 +2 DRPS VRM energy system, twin 2.5G LAN, Wi-Fi 7, and sturdy elements complemented by a server-grade PCB. As an E-ATX platform, it’s optimized for excessive configurations, accommodating superior overclocking of the processor, DDR5 reminiscence, and high-end graphic playing cards.
Included new BIOS Options:
- Reminiscence Extension Mode
- Functionality for P-core to exceed 6 GHz
- BCLK locked at 102.5
- Reminiscence configuration optimization with “Reminiscence Strive It!”
According to expectations, motherboards will present complete help for Intel’s 14th Gen Raptor Lake Refresh Desktop CPU lineup, alongside enhanced compatibility with sooner DDR5 reminiscence. Moreover, the VRMs have been calibrated to accommodate the heightened energy consumption of those processors, complemented by improved heatsink designs to make sure efficient cooling even throughout probably the most demanding workloads. The MSI MEG Z790 ACE MAX, boasts a formidable 24-Section +1 +2 DRPS VRM energy system outfitted with 105A SPS energy levels. The motherboard’s LGA 1700 socket derives its energy from twin 8-pin energy connectors, whereas the 4 DDR5 DIMM slots provide spectacular help, with speeds exceeding 8000 MT/s and capacities of as much as 192 GB. When it comes to enlargement and connectivity, the board is provided with 5 M.2 slots, two PCIe x16 slots (configured as x16/x8 in wiring), all of that are appropriate with Gen 5, and one Gen 4 x8 slot. Whereas a lot of the I/O choices stay constant, two standout options embody WIFI 7 and twin 2.5 GbE LAN help.
MSI’s complete Z790 board lineup will help JEDEC DDR5-5200 out of the field, with upper-tier fashions supporting DDR5-8000 by XMP 3.0. The ability supply system has been improved, starting from 16 DRPS (Duet Rail Energy System) CPU energy phases utilizing 80A SPS on the low finish to a whopping 26 DRPS utilizing 105A SPS on the MEG Z790 ACE (24+1+2 105A). The ACE’s intensive M.2 compatibility supplies many potentialities for assembling a high-speed storage array. On high of a kind of sizzling PCIe 5.0 NVMe SSDs, MSI says the M.2 Defend Frozr cooling system will assist cut back temps by 5 per cent. There are 5 M.2 slots and three PCIe 16x slots on the Ace, the latter working at PCIe 4.0 speeds (one at PCIe 5.0). The Ace has 9 completely different enter and output connections, together with two Sort-C Thunderbolt 4 ports with help for 8K video output, seven USB 3.2 Gen 2 Sort-A ports, one USB 3.2 Gen 2 Sort-C port, two Mini DisplayPort connectors, and twin 2.5GbE ports. Additionally included is help for aRGB Gen 2 units, Wi-Fi 7, and entrance USB 3.2 Gen 22 Sort-C with energy transmission of as much as 60W.
| Processor | Configuration | P-core / E-core Base Clock (GHz) | L3 Cache (MB) | PBP (W) | Stepping | Reminiscence Help | ECC Help |
|---|---|---|---|---|---|---|---|
| Core i9-14900KF | 8P + 16E | 3.2 / 2.4 | 36 | 125 | B0 | DDR4-3200 / DDR5-5600 | No |
| Core i9-14900K | 8P + 16E | 3.2 / 2.5 | 36 | 125 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i9-14900F | 8P + 16E | 2.0 / 1.5 | 36 | 65 | B0 | DDR4-3200 / DDR5-5600 | No |
| Core i9-14900T | 8P + 16E | 1.1 / 0.8 | 36 | 35 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i9-14900 | 8P + 16E | 2.0 / 1.5 | 36 | 65 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i7-14700KF | 8P + 12E | 3.4 / 2.5 | 33 | 125 | B0 | DDR4-3200 / DDR5-5600 | No |
| Core i7-14700K | 8P + 12E | 3.4 / 2.5 | 33 | 125 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i7-14700F | 8P + 12E | 2.1 / 1.5 | 33 | 65 | B0 | DDR4-3200 / DDR5-5600 | No |
| Core i7-14700T | 8P + 12E | 1.3 / 0.9 | 33 | 35 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i7-14700 | 8P + 12E | 2.1 / 1.5 | 33 | 65 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i5-14600KF | 6P + 8E | 3.5 / 2.6 | 24 | 125 | B0 | DDR4-3200 / DDR5-5600 | No |
| Core i5-14600K | 6P + 8E | 3.5 / 2.6 | 24 | 125 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i5-14600T | 6P + 8E | 1.8 / 1.3 | 24 | 35 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i5-14600 | 6P + 8E | 2.7 / 2.0 | 24 | 65 | B0 | DDR4-3200 / DDR5-5600 | Sure |
| Core i5-14500T | 6P + 8E | 1.7 / 1.2 | 24 | 35 | C0 | DDR4-3200 / DDR5-4800 | Sure |
| Core i5-14500 | 6P + 8E | 2.6 / 1.9 | 24 | 65 | C0 | DDR4-3200 / DDR5-4800 | Sure |
| Core i5-14400T | 6P + 4E | 1.5 / 1.1 | 20 | 35 | C0 | DDR4-3200 / DDR5-4800 | No |
| Core i5-14400F | 6P + 4E | 2.5 / 1.8 | 20 | 65 | C0 | DDR4-3200 / DDR5-4800 | No |
| Core i5-14400 | 6P + 8E | 2.5 / 1.8 | 20 | 65 | C0 | DDR4-3200 / DDR5-4800 | No |
| Core i5-14400F | 6P + 4E | 2.5 / 1.8 | 20 | 65 | B0 | DDR4-3200 / DDR5-4800 | No |
| Core i5-14400 | 6P + 4E | 2.5 / 1.8 | 20 | 65 | B0 | DDR4-3200 / DDR5-4800 | No |
| Core i3-14100T | 4P + 0E | 2.7 / N/A | 12 | 35 | H0 | DDR4-3200 / DDR5-4800 | No |
| Core i3-14100F | 4P + 0E | 3.5 / N/A | 12 | 58 | H0 | DDR4-3200 / DDR5-4800 | No |
| Core i3-14100 | 4P + 0E | 3.5 / N/A | 12 | 60 | H0 | DDR4-3200 / DDR5-4800 | No |
| Intel 300T | 2P + 0E | 3.4 | 6 | 35 | H0 | DDR4-3200 / DDR5-4800 | Sure |
| Intel 300 | 2P + 0E | 3.9 | 6 | 46 | H0 | DDR4-3200 / DDR5-4800 | Sure |
So, allow us to learn how the MEG Z790 ACE MAX performs and whether it is value your cash on this evaluation.
